ANRITSU A-231K-01-1-TC1-ANP surface temperature probe type K -50°C ~ 500°C

ANRITSU A-231K-01-1-TC1-ANP surface temperature probe type K -50°C ~ 500°C - Image 2

ANRITSU A-231K-01-1-TC1-ANP surface temperature probe type K -50°C ~ 500°C

Producer: ANRITSU METER

Category: Detachable probe thermometer

Anritsu Meter Japan
Model A series static contact surface probe
Type K: Model A-231K-01-1-TC1-ANP
Temperature range -50°C to 500°C
Tolerance -50°C ≦ t < 333°C: ±2.5°C
333°C ≦ t ≦ 500°C: ±(0.0075 × | t |)°C
Response time: 1.5 seconds
DurabilityMore than 75,000 touch points
Type K: TC-K 1m
ANRITSU Temperature Probe Model A series General fixed surface probe
The Model A series probes are general purpose temperature sensors designed to measure the temperature of fixed surfaces.
Specific components can be combined to customize the product to the customer's specific application needs.

4.790.000 ₫

(Price above does not include VAT)

Contact Zalo for good price

10 TIMES COMPENSATION

If counterfeit goods are detected

FREE SHIPPING

Receive within 24-72 hours

12 MONTH WARRANTY

With all products

24/7 SUPPORT VIA ZALO

Find zalo number 0979761016

Description information

ANRTSU Meter Japan

General Stationary Surface Probes

Model : A-231K-01-1-TC1-ANP (-50°C to 500°C)

ANRITSU Temperature probes Model A series General Stationary Surface Probes
Model A series probes are general-purpose temperature sensors designed to measure the temperatures of stationary surfaces.
Specific components can be combined to customize products for the needs of a customer's specific application.

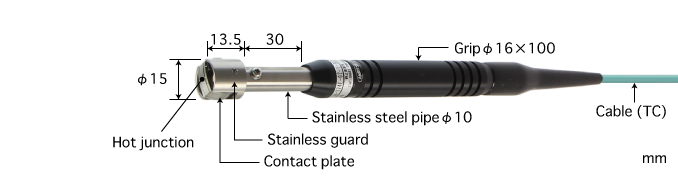

Type E Model ：A-231E-00-1-TC1-ANP ( or ASP)
Type K Model ：A-231K-00-1-TC1-ANP ( or ASP)

General Stationary Surface Probes Model A series

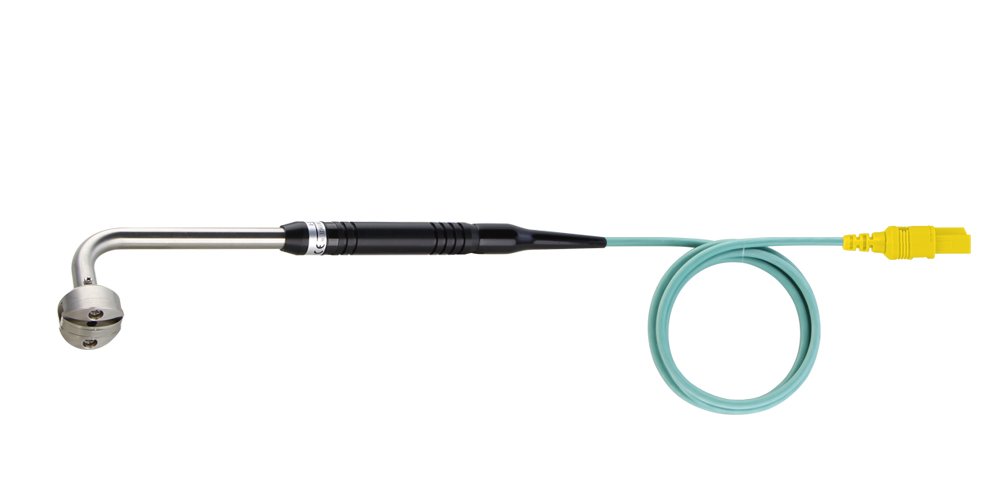

Type K : Model A-231K-01-1-TC1-ANP
Temp. range-50°C to 500°C
Tolerance-50°C ≦ t < 333°C : ±2.5°C
333°C ≦ t ≦ 500°C : ±(0.0075 × | t |)°C
Response time: 1.5 s
DurabilityMore than 75,000 contacts
Type K : TC-K 1m

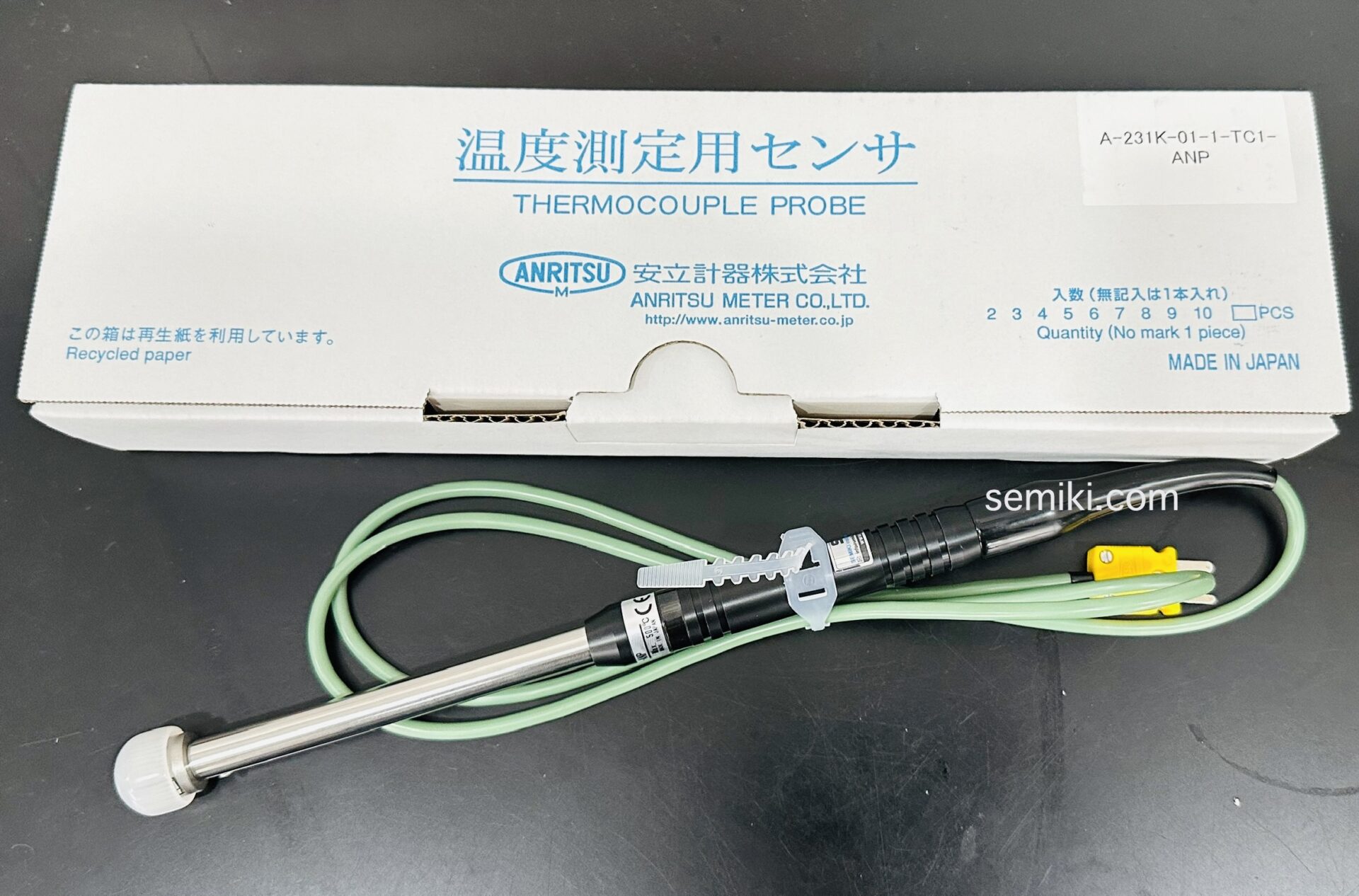

Pic: Anritsu Stationary Suface Probes A-231K-01-1-TC1-ANP (type K/ -50°C to 500°C) at Semiki's warehouse

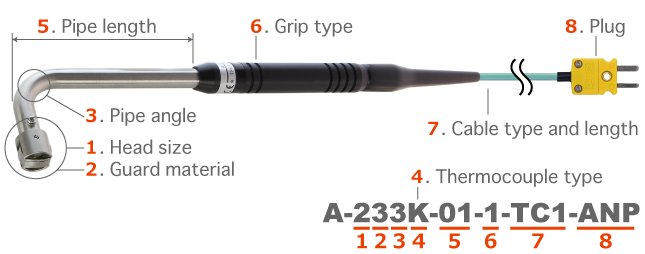

How to order of A series / General Stationary Surface Probes

Static surface temperature sensor is ideal for measuring object surface temperature measurement to the universal type temperature sensor.
When you use the [attention] This product has a separate thermometer (thermocouple Type K, ASP connector Specifications) is required.
Usage temperature range: 50 ~ 800 °C
Thermocouple types: Type K, plug shape: ASP connectors
Tolerance: ± 2.5 °C (100 °C in the metal surface); Response Speed: 1.5 seconds
Head: Stainless Steel Guard (for heat) φ 27 mm

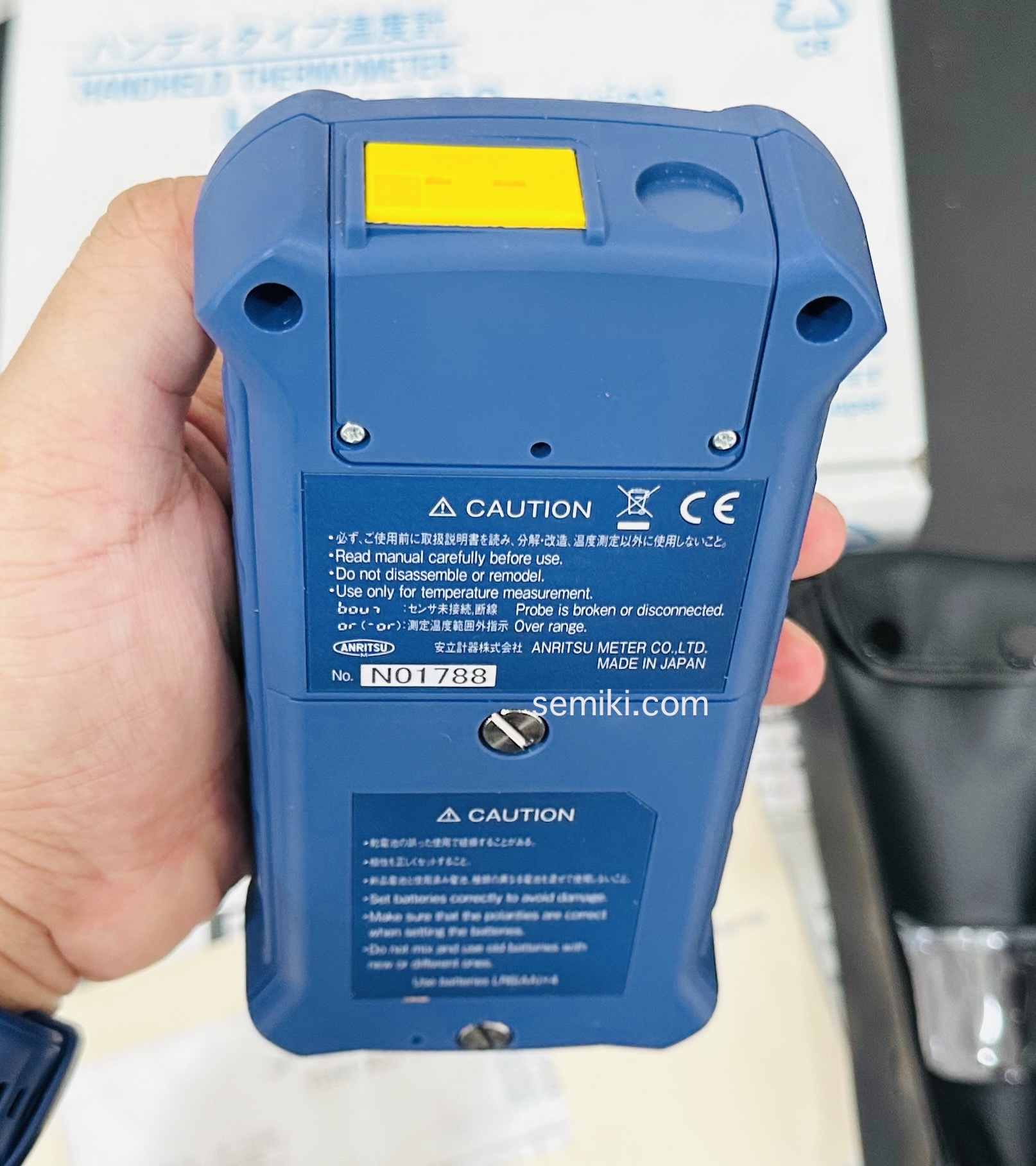

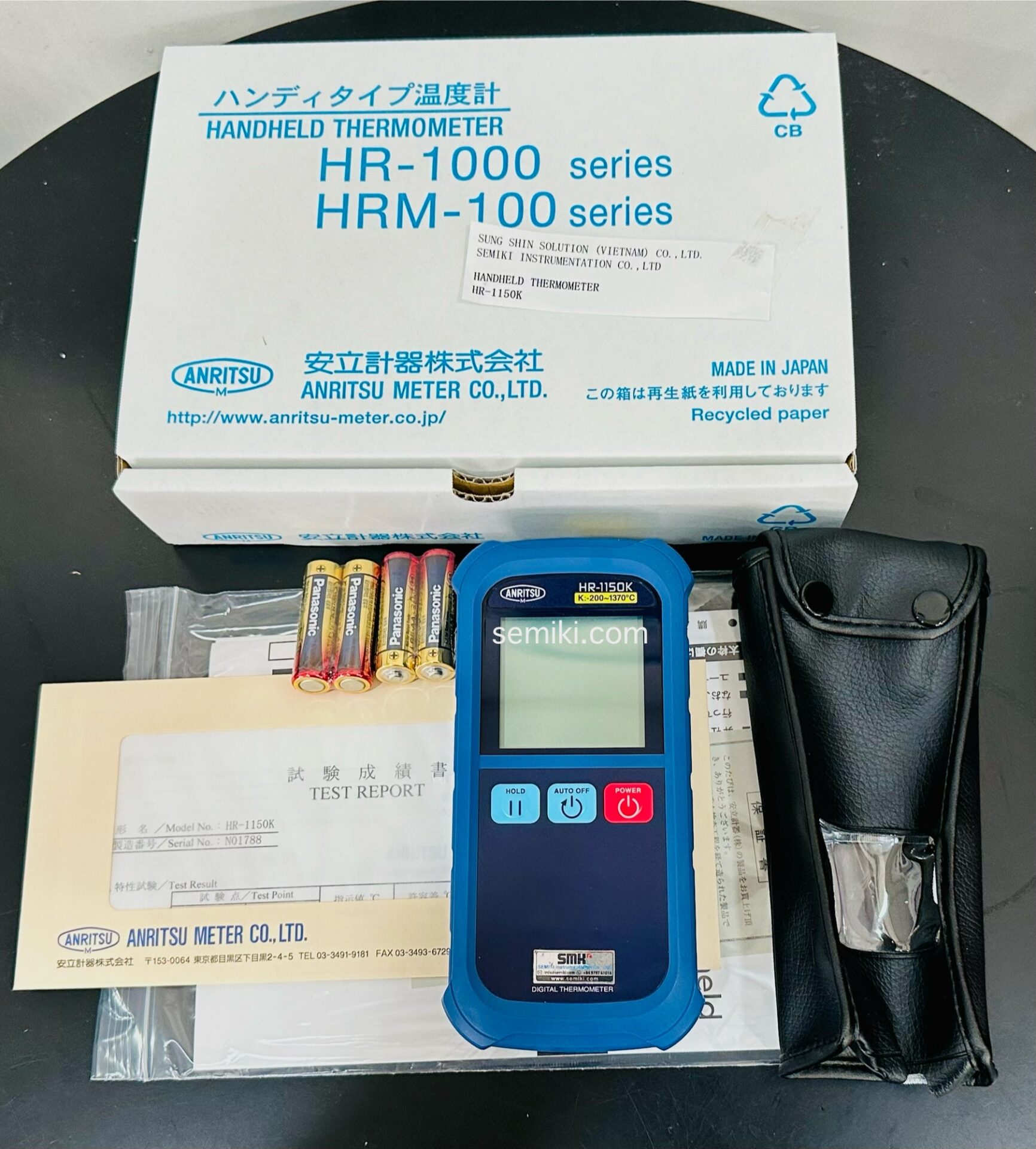

OPTIONAL Digital Thermometer Model HR series.
