SUGISAKI Japan
CEDAR Electric Screwdriver Torque Tester
Model: DI-9M-08
Measuring range:
2.0-800 mN･m /0.020～8 kgf・cm/ 0.020～7 lbf・in
Accuracy ±0.5% (499 digits or less ±3 digits)
Socket size □ 20mm/ □ 9.5mm
Suitable for daily testing of electric screwdrivers
Use “OW coupling” (coupling without rewinding)
Allows saving of 5 channels of pass/fail criteria and allows changing of settings by switching channels even if the tightening period changes.
Due to “OW Coupling”, effective measurement is possible without rewinding.
Display “Measurement mode”, “Measurement unit” and “maximum, minimum, average”
Convertible units of measurement
800 Data Items Memory
Real-time output About every 1/180 second
Free data collection software available for download
Includes “Screw Cube” – measuring tool for manual tools
Suitable for daily inspection of electric screw driver
Using “OW joint” (joint which is unnecessary to rewind)
Enable to save 5 channels of pass/fail judgment criterion, and enable to change settings by switch channels even if the tightening term changes.
Due to “OW Joint”, able to mesures effectively without rewinding.
SUGISAKI Japan
CEDAR Electric screw driver Torque tester
Model: DI-9M-08
Measuring range:
2.0-800 mN･m /0.020～8 kgf・cm/ 0.020～7 lbf・in
Accuracy ±0.5% (499 digits or less ±3digit)
Socket size □ 20mm/ □9.5mm

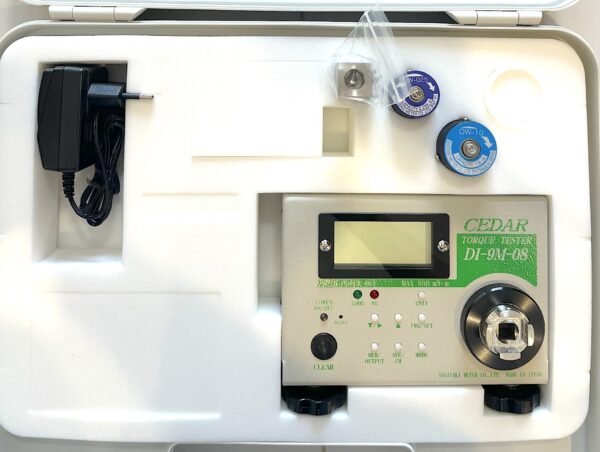

Pic.: CEDAR Electric screw driver Torque tester Model: DI-9M-08 at Semiki's warehouse
Measuring range:
2.0-800 mN･m /0.020～8 kgf・cm/ 0.020～7 lbf・in
Show “Measurement mode”, “Measurement unit”, and “maximum, minimum, average”
Switchable measurement unit
800 items of Memory data
Real-time output About every 1/180 seconds
Data acquisition software can be downloaded for free
Include “Screw Cube”-measuring jig for manual tools
video: using Digital Torque tester DI-9M-8/08
Maintenance and calibration :
► We also have calibration certificate attached ( optional )
► Please re-calibrate after use for a certain period through our purchase store.
