Sugisaki Meter
Cedar Electric Screwdriver Gauge

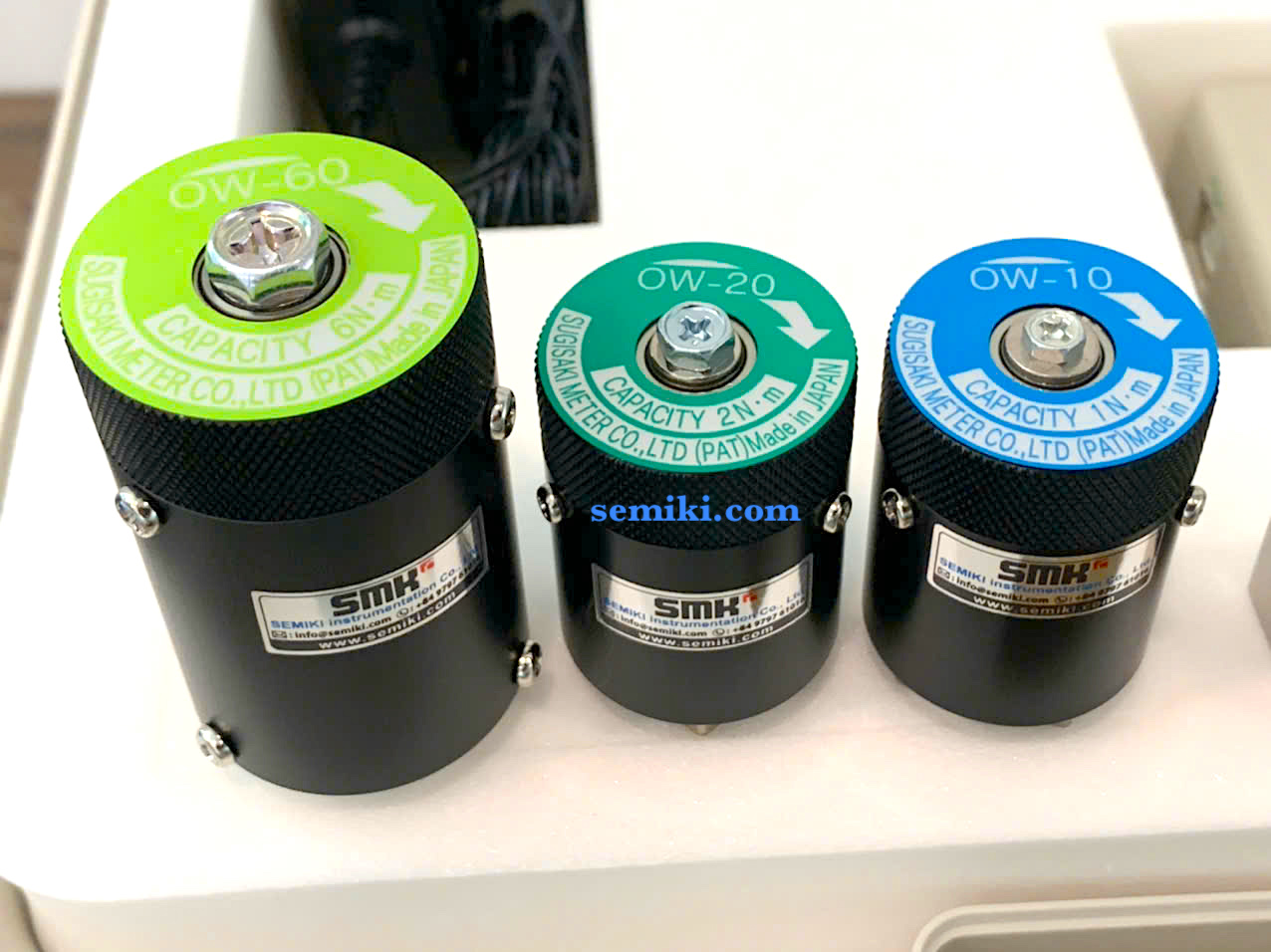

Model: OW series one-way joint
OW-10 (1N.m / 100cN.m)
OW-20 (2N.m / 200cN.m))
OW-60 (6N.m / 600cN.m)
Electric screwdriver gauge
Special structure no need to rewind
Improve workability with unique structure and complete measurement by only operating in tightening direction.
Allows stable torque management over long periods of time due to the structure not needing to consider the effects of friction.
Allows measurement by bit set
Check effective torque in tightening direction
Reaction force absorbing structure
Allows low range torque measurement
Measuring joint of electric screwdriver
Special structure that does not require rewinding
Improve workability by unique structure, and complete measuremtn by only operating in the tightening direction.
Enable to be performed long-time stable Torque manage due to the structure which is not necessary to consider the influence of friction.
Enable to measure with bit set
Efficient torque check in tightening direction
Reaction force absorbing structure
Enable to measyre Low-range torque

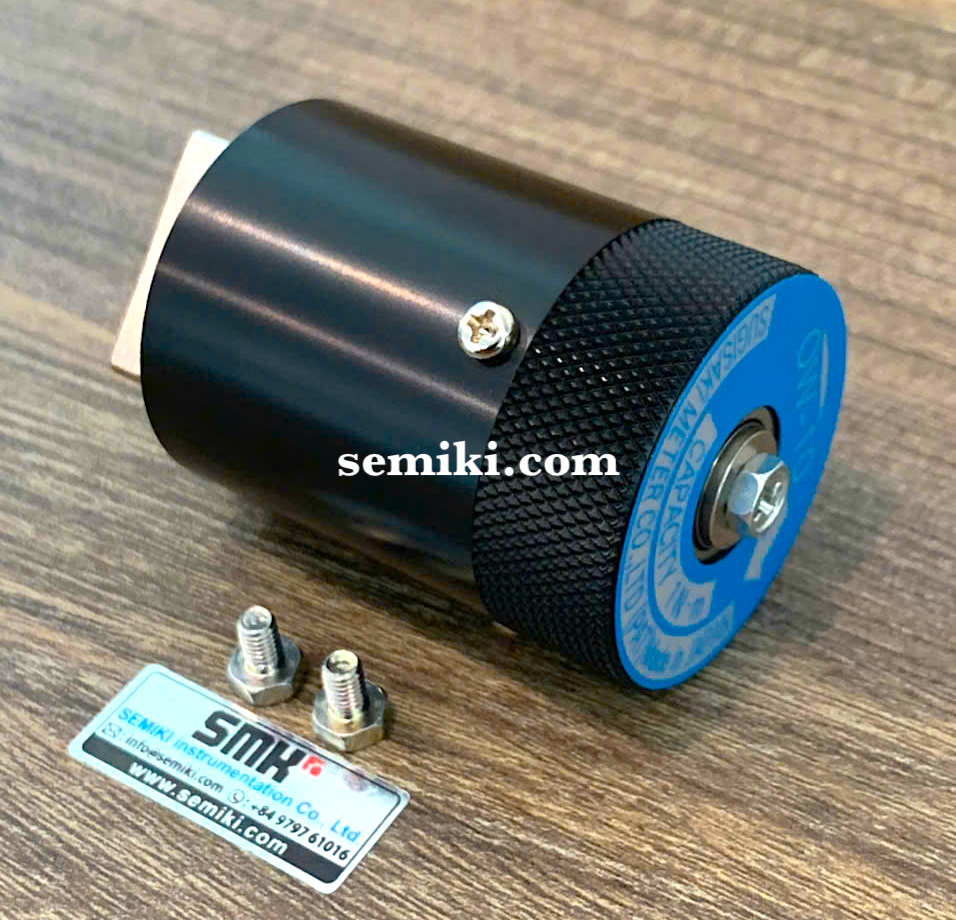

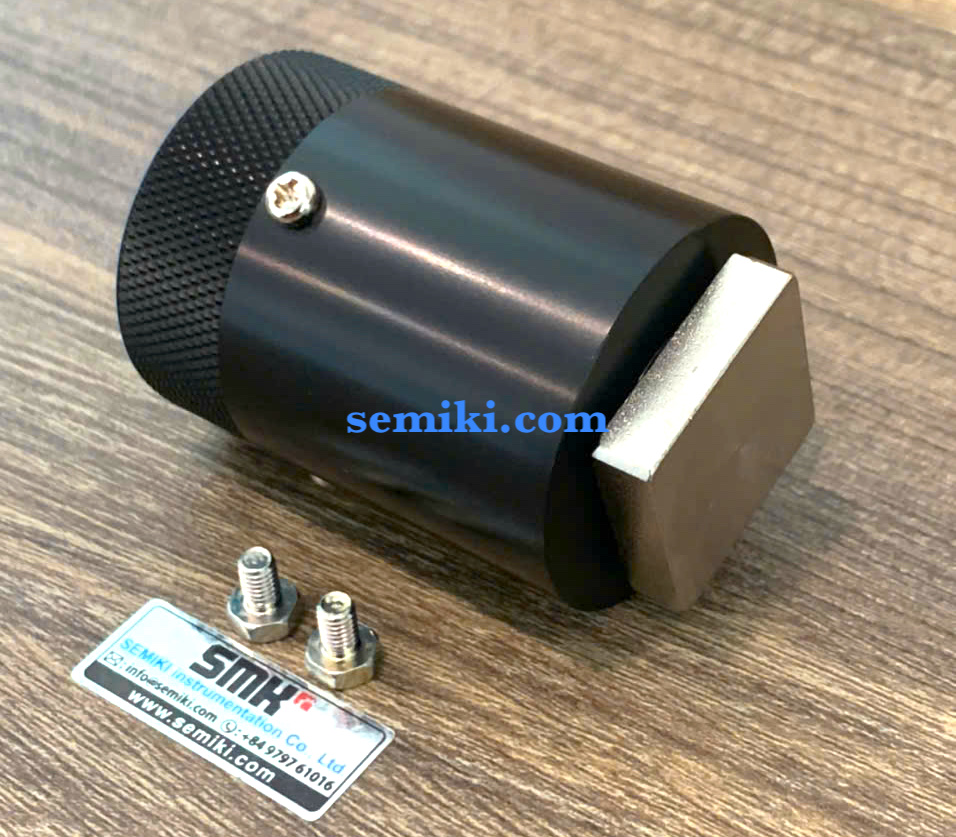

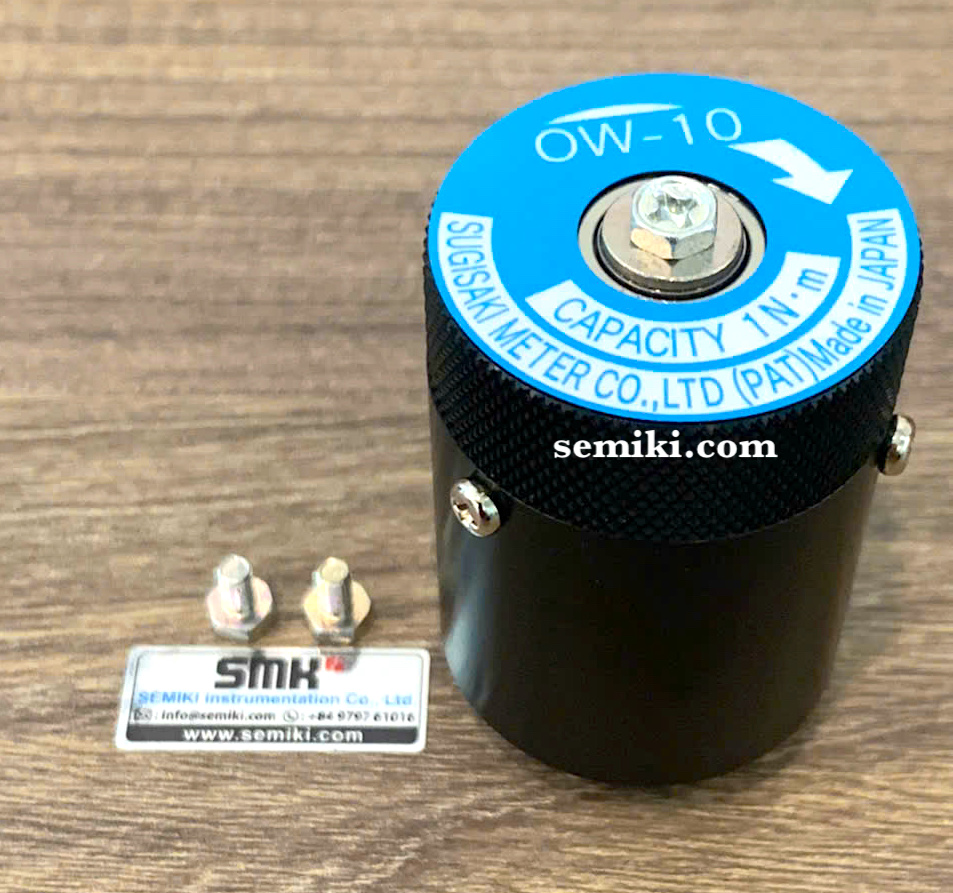

CEDAR One Way Joint OW-10
OW-10 (1N.m / 100cN.m)
Mechanical life (number of rotation / times): 8,000
Bit fitting part: M3+ / φ32/51
Mounting part: □20×5(t)

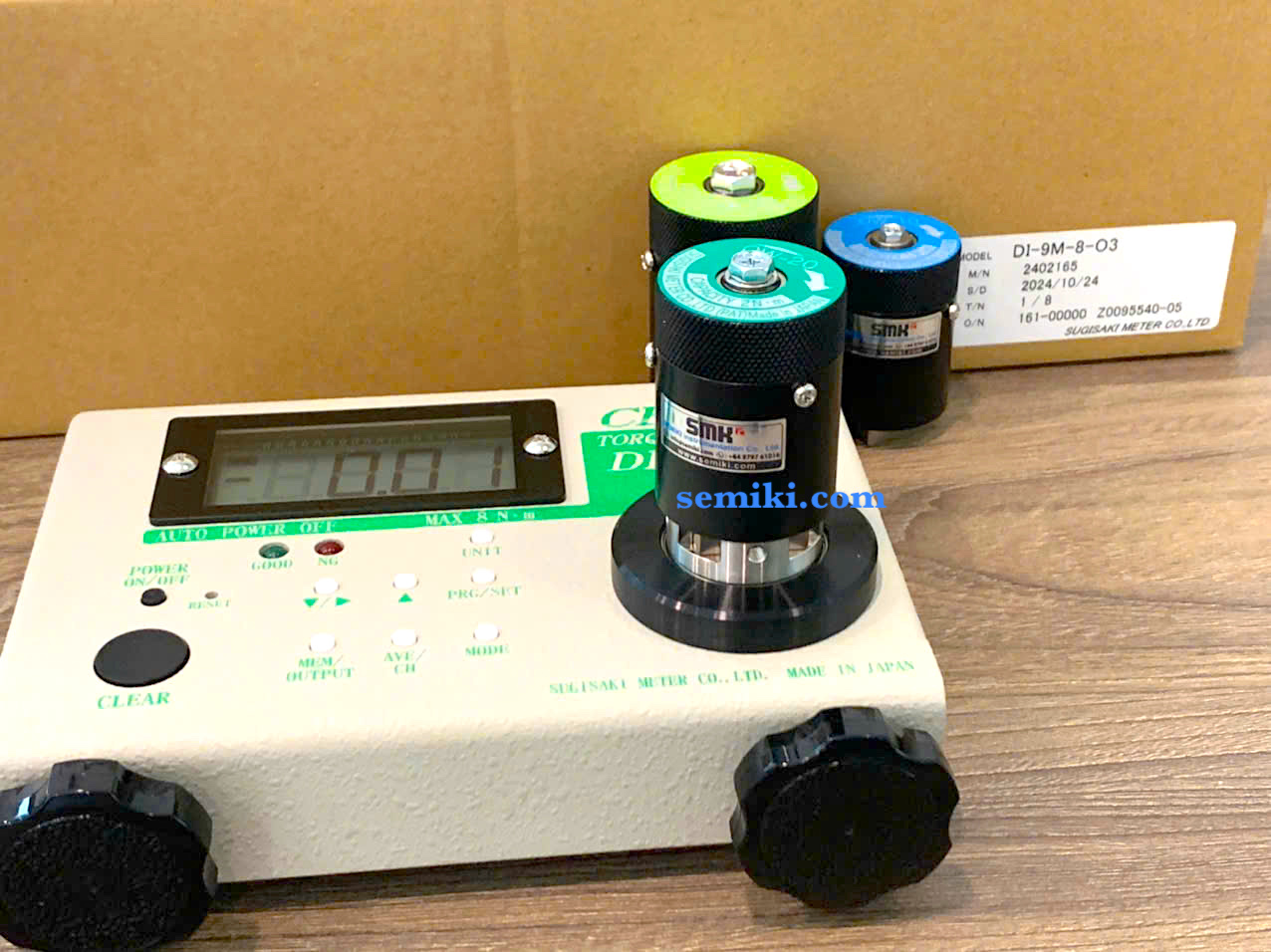

for CEDAR Electric screw driver Torque tester
Model: DI-9M-08

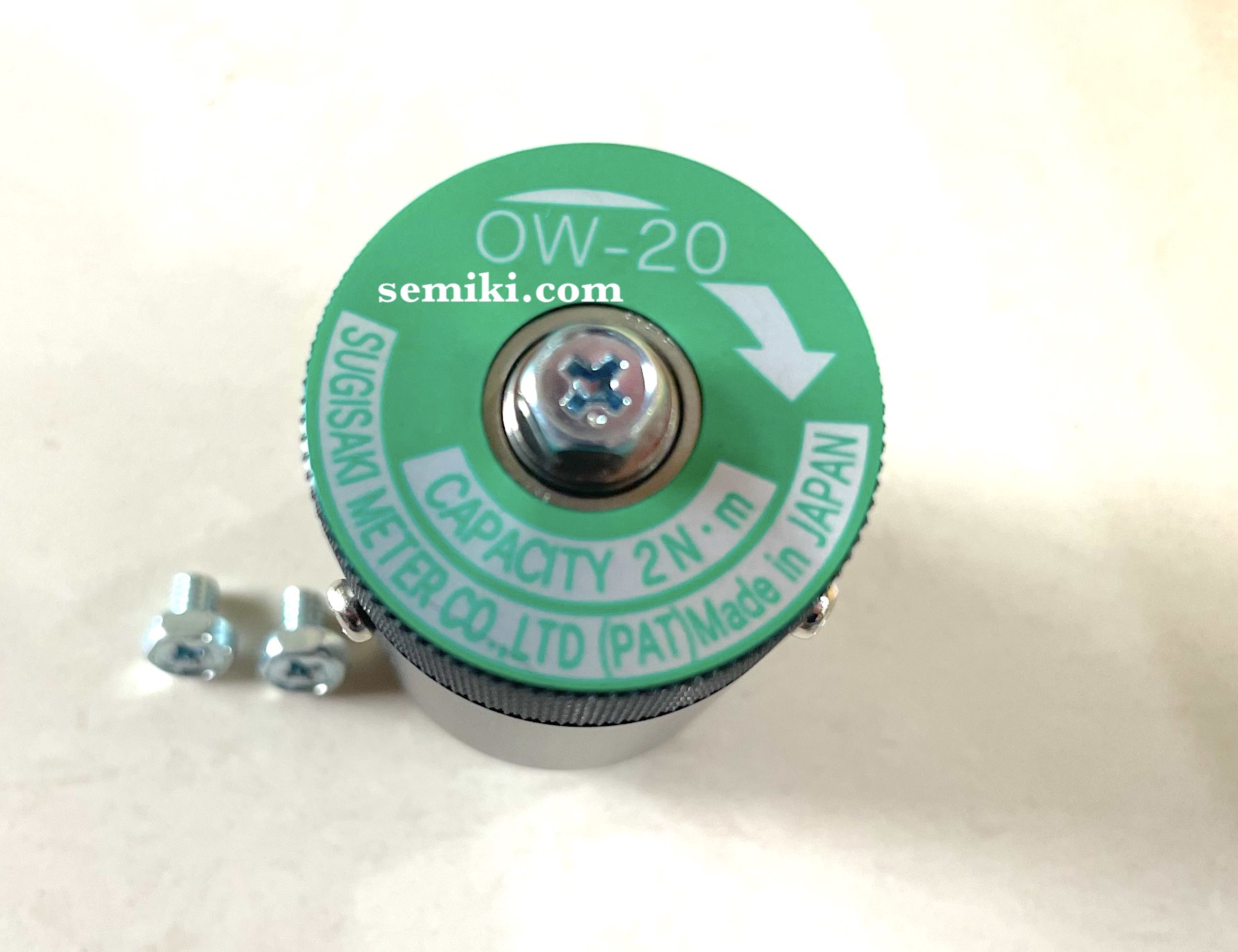

CEDAR One Way Joint OW-20
OW-20 (2N.m / 200cN.m)
Mechanical life (number of rotation / times): 5,000
Bit fitting part: M4+ / φ32/51
Mounting part: □20×5(t)
for CEDAR Electric screw driver Torque tester
Model: DI-9M-8

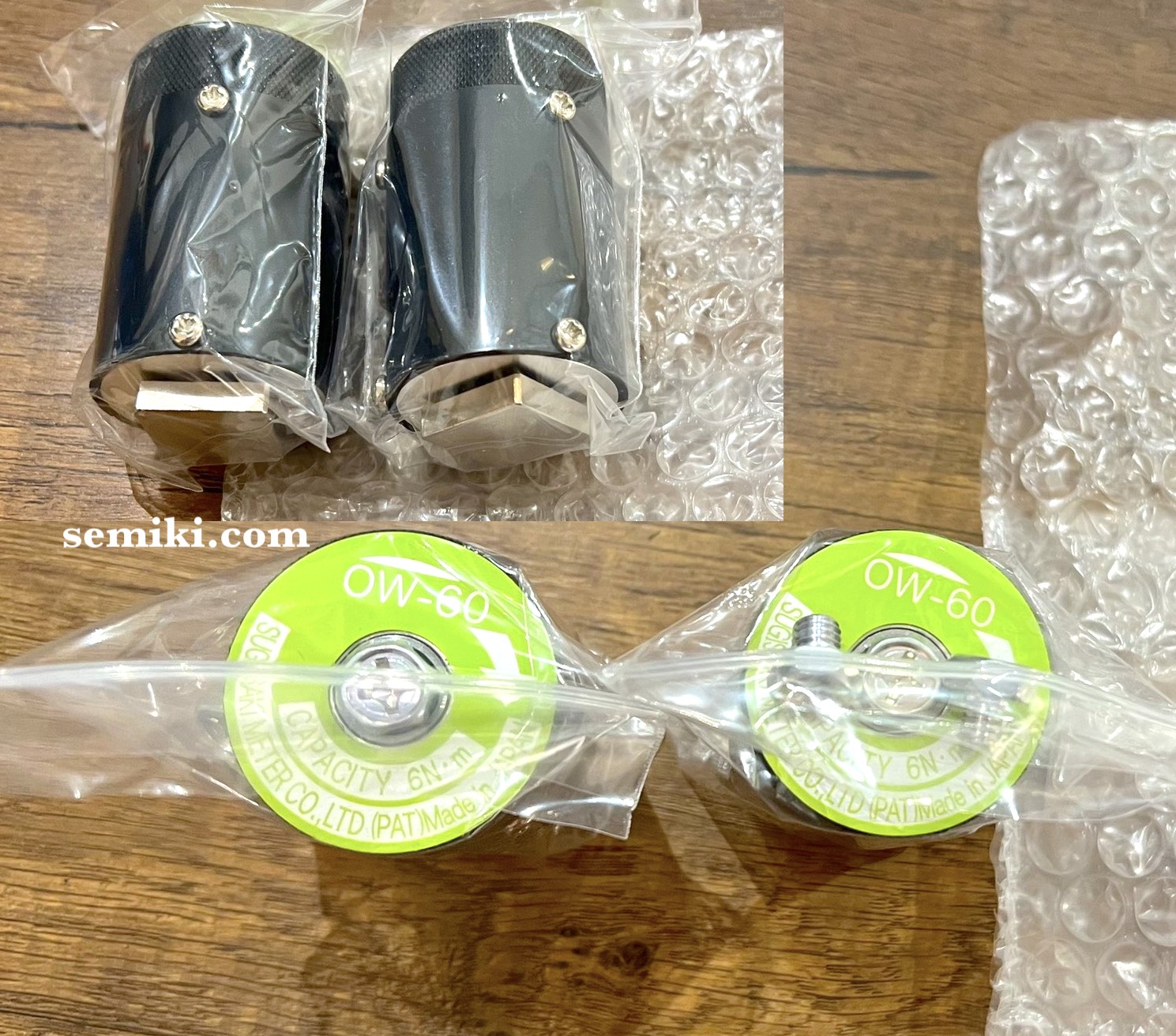

CEDAR One Way Joint OW-60
OW-60 (6N.m / 600cN.m)
Mechanical life (number of rotation / times): 5,000
Bit fitting part: M6+ / φ32/51
Mounting part: □20×5(t)
for CEDAR Electric screw driver Torque tester
Model: DI-9M-8
Maintenance and calibration :
► We also have calibration certificate attached ( optional )
► Please re-calibrate after use for a certain period through our purchase store.
