Home / Shop / Electronic industry measuring machine / ESD measuring device / Surface resistance meter / DESCO 50005 concentric probe measuring surface resistance 1 x 10^12 ohms
DESCO 50005 concentric probe measuring surface resistance 1 x 10^12 ohms
DESCO 50005 concentric probe for measuring surface resistance 1 x 10^12 ohms - Image 2
DESCO 50005 concentric probe for measuring surface resistance 1 x 10^12 ohms - Image 3
DESCO 50005 concentric probe for measuring surface resistance 1 x 10^12 ohms - Image 4

DESCO 50005 concentric probe measuring surface resistance 1 x 10^12 ohms

Producer:
Category:

DESCO USA 50005 – Concentric Ring Probe
The Desco 50005 Concentric Ring Probe is a device used in conjunction with a resistance meter, such as the Desco 19787 Digital Surface Resistance Meter, to measure surface resistance in accordance with ANSI/ESD STM11.11, the test method listed in ANSI/ESD S541 Packaging Standard for surface resistance of flat materials.
The concentric ring probe (Reference: ANSI/ESD STM11.12) can measure the volume resistance of flat materials using a flat conductive metal plate (not included).

9.390.000 ₫
(Price above does not include VAT)
OR
Contact Zalo for good price
10 TIMES COMPENSATION
If counterfeit goods are detected
FREE SHIPPING
Receive within 24-72 hours
12 MONTH WARRANTY
With all products
24/7 SUPPORT VIA ZALO
Find zalo number 0979761016
Description information

DESCO USA

Concentric Ring Probe

Model: DESCO 50005

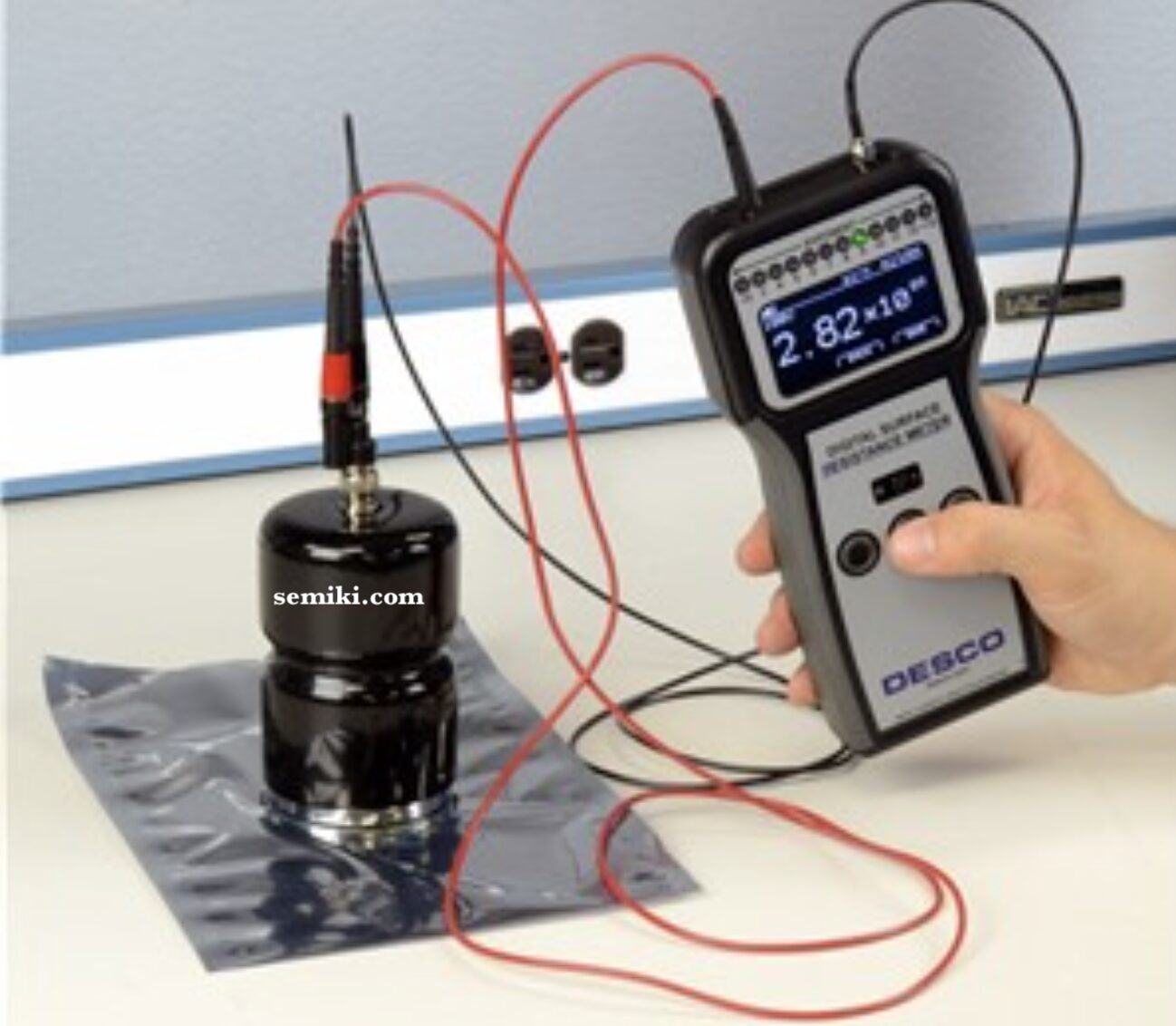

The Desco 50005 Concentric Ring Probe is an instrument to be used in conjunction with a resistance meter, such as the DESCO 19290 Digital Surface Resistance Meter, to measure surface resistance per ANSI/ESD STM11.11 the test method listed in Packaging standard ANSI/ESD S541 for surface resistance of planar materials.

The Concentric Ring Probe (Ref: ANSI/ESD STM11.12) can measure the volume resistance of planar materials using a flat conductive metal plate (not included).
The Concentric Ring Probe may be used for the resistance measurements of ESD packaging including static shielding and other bags.

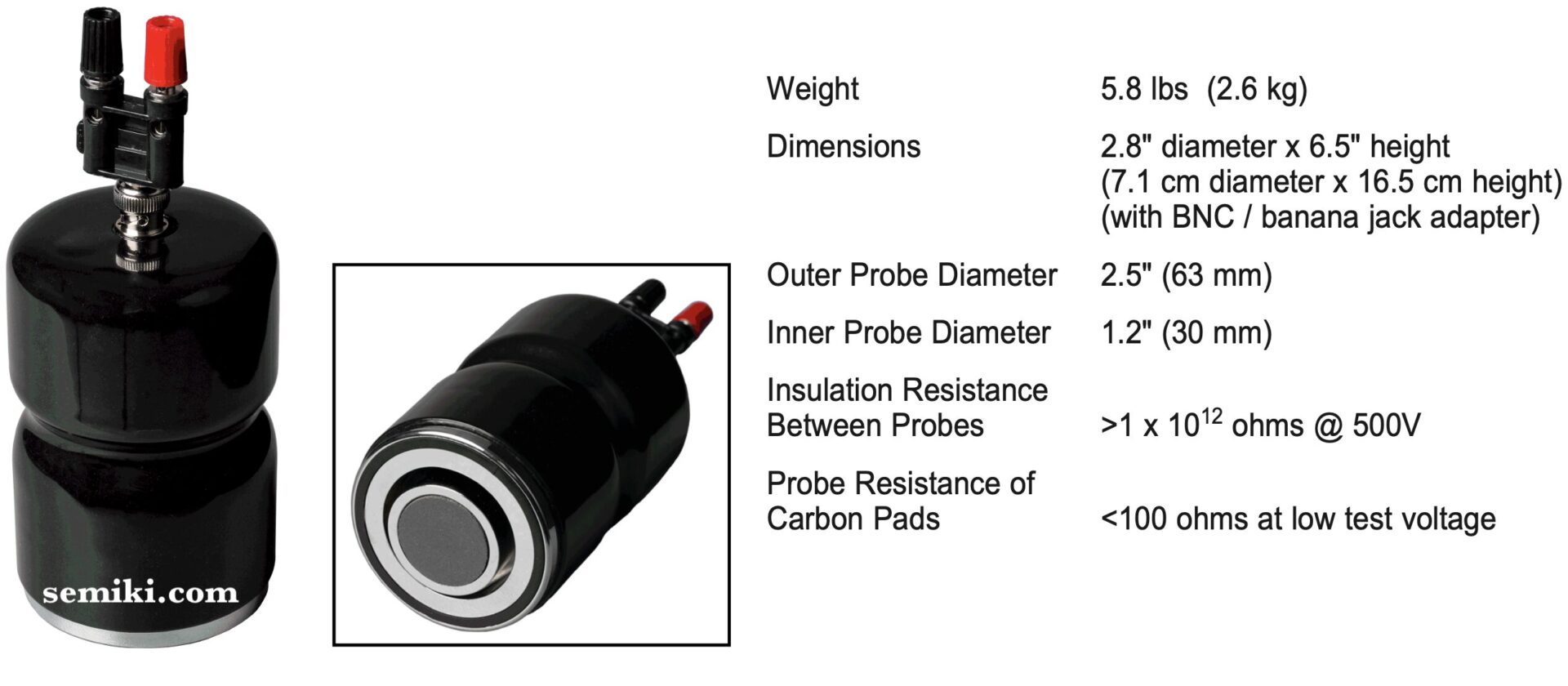

Specifications:

Per ANSI/ESD STM11.11 section 12.0 “CONVERSION TO RESISTIVITY, When it is appropriate to convert a resistance obtained by this test method to an equivalent resistivity in ohms per square, multiply the resistance measurements obtained by this method by ten.
The conversion factor of ten is derived from the geometry of the electrode assembly.
NOTE: Conversions to resistivity may not be valid for materials that are laminated, plated or metallized with conductive materials.
This fact should be understood when users of this test procedure are required to satisfy specifications given in “ohms/square.”

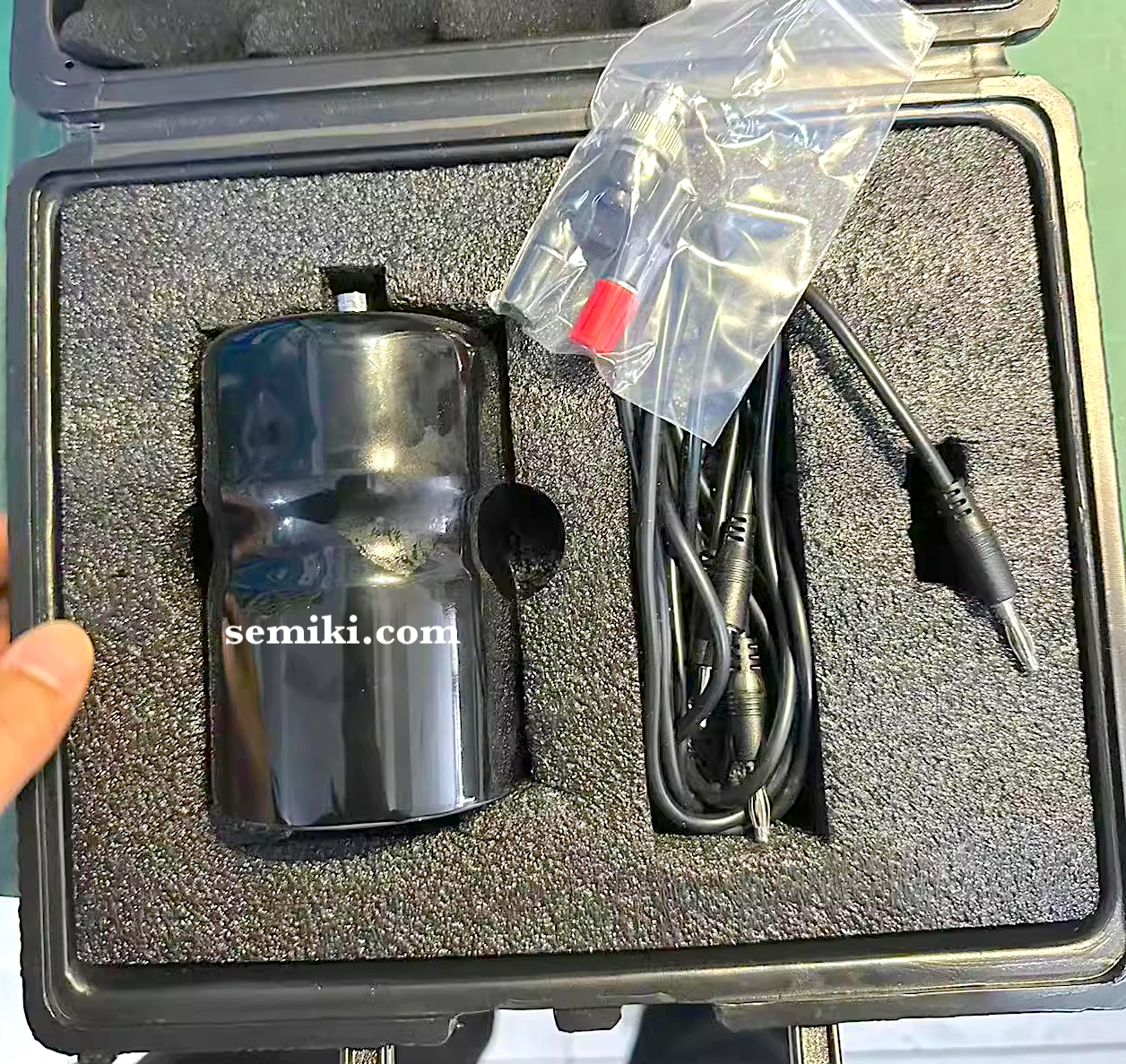

Pic.: Desco 50005 Concentric Ring Probe at Semiki's warehouse

Maintenance and calibration :

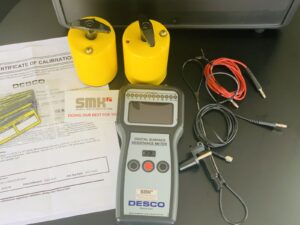

► We also have calibration certificate attached ( optional )
► Please re-calibrate after use for a certain period through our purchase store.

Local Vietnam : SEMIKI CORP

DISTRIBUTED BY:

Semiki instrumentation Co., Ltd
Email: sales@semiki.com
Office tel: +84 28 2253 3522

~DOING OUR BEST FOR YOU~
