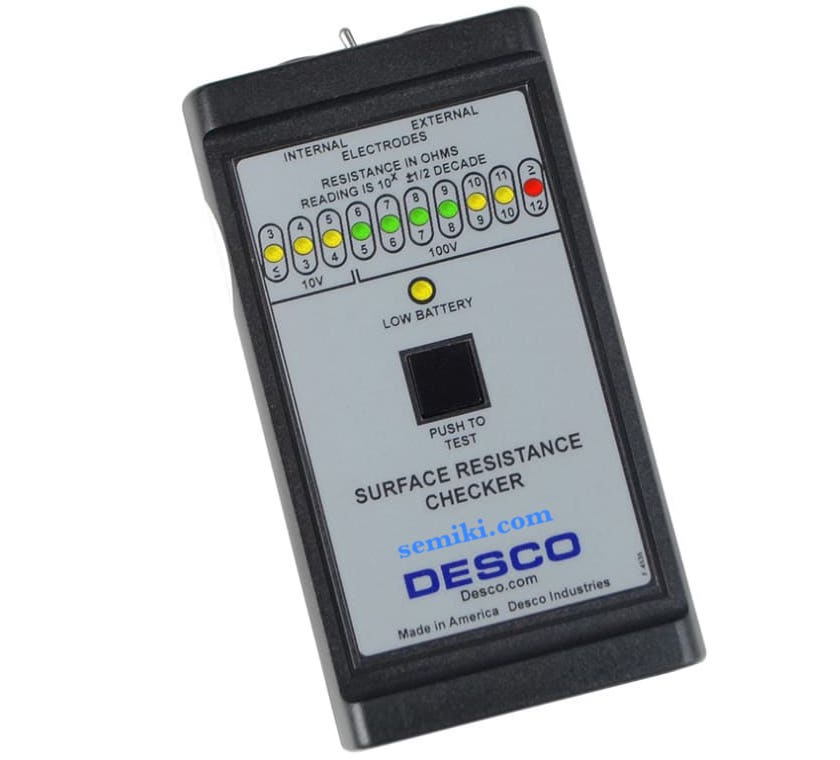

DESCO USA 19640 contact surface resistance meter 10^3 to 10^12 ohms

DESCO U.S.A 19640 thiết bị đo điện trở bề mặt tiếp xúc 10^3 to 10^12 ohms - Image 2

DESCO U.S.A 19640 thiết bị đo điện trở bề mặt tiếp xúc 10^3 to 10^12 ohms - Image 3

DESCO U.S.A 19640 thiết bị đo điện trở bề mặt tiếp xúc 10^3 to 10^12 ohms - Image 4

DESCO USA 19640 contact surface resistance meter 10^3 to 10^12 ohms

Producer: DESCO ESD

Category: Surface resistance meter

DESCO 19640 – Surface Resistance Tester
Measuring range: Measures surface resistance from 10^3 to 10^12 (Ω/sq)
Display: Digital
Power source: 9V battery
Electrode: Integrated parallel electrode
Portability: Light and portable
Accuracy: High Accuracy
Operating temperature: 59°F to 86°F (15°C to 30°C)
Compliance: meets ESD safety standards
Desco 19640 Surface Resistance Tester is a portable battery-powered tester equipped with built-in parallel electrodes that allow for testing of material surface resistance. This tester is designed for rapid testing of surface resistance for ESD control applications in electronics manufacturing or processing environments.
The surface resistance tester is equipped with an automatic test voltage selector. The test voltage will switch from 10V to 100V if the measured resistance exceeds 1 x 105 ohms. Two banana plugs and an electrode switch allow connection of two 5-pound external electrodes for point-to-point surface resistance (Rtt) measurements.

14.790.000 ₫

(Price above does not include VAT)

Contact Zalo for good price

10 TIMES COMPENSATION

If counterfeit goods are detected

FREE SHIPPING

Receive within 24-72 hours

12 MONTH WARRANTY

With all products

24/7 SUPPORT VIA ZALO

Find zalo number 0979761016

Description information

DESCO USA

model: 19640

Surface Resistance Checker

The Desco 19640 Surface Resistance Checker is a portable battery powered checker fitted with built-in parallel electrodes that allows for tests of material surface resistance.

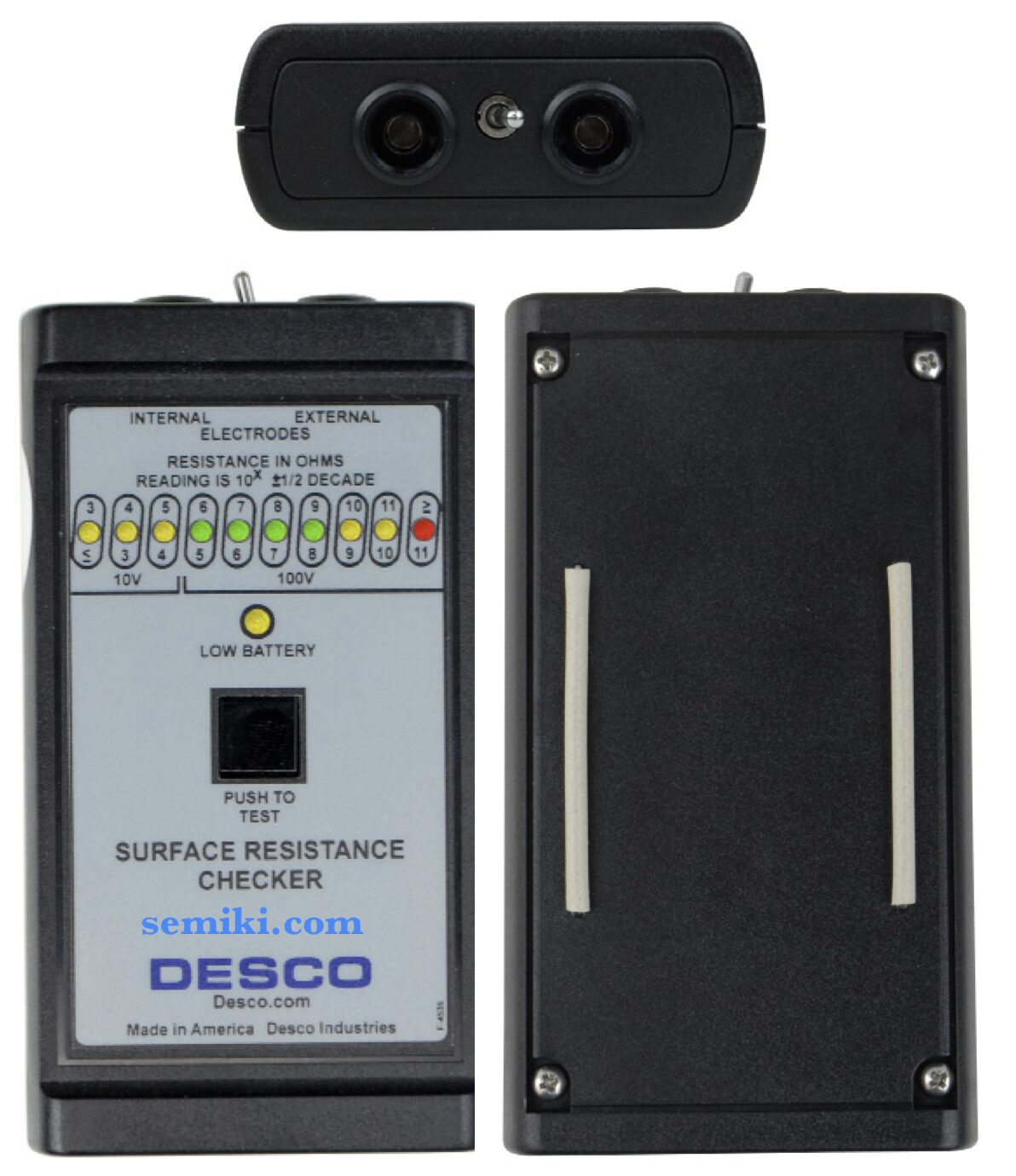

This checker is designed for quick checks of surface resistance for ESD control applications in electronics manufacturing or handling environment.The Surface Resistance Checker is equipped with an automatic test voltage selector. The test voltage will switch from 10V to 100V so the measured resistance exceed 1 x 10^5 ohms. Two banana jacks and an electrode toggle switch allow for the connection of two external 5 pound electrodes that measure surface resistance point to point (Rtt).

Parallel Electrodes: Ensure that the electrode toggle switch is set to INTERNAL when choosing to take a measurement with these electrodes.

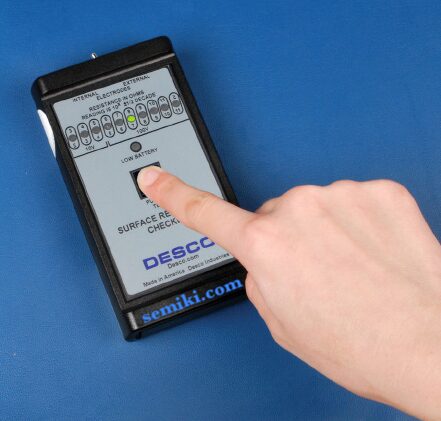

Test Switch: Use this switch to make a surface resistance measurement. Push and hold until one of the resistance measurement LEDs remain illuminated.

Economical compliance verification surface resistance checker
Used for determine if a surface is dissipative, conductive, or insulative
Color coded LEDs quickly provide exponent range for quick checks of EPA ESD control items

Specifications:

Type: Surface Meter
Measurement Range: Measures surface resistivity from 10^3 to 10^12 Ω per square
Display: Digital
Power Source: 9V battery
Electrodes: Built-in parallel electrodes
Portability: Lightweight and portable
Accuracy: High accuracy
Operating Temperature: from 59°F to 86°F (15°C to 30°C)
Compliance: meets ESD safety standards

Accuracy: The Desco Surface Resistance Checker is calibrated to ensure that the proper LEDs lighting when their corresponding load resistances are applied. All load resistances shown below have a ±10% accuracy. No claims are made for the actual resistance values that trigger the change in LEDs.

Maintenance and calibration :

► We also have calibration certificate attached ( optional )

► Please re-calibrate after use for a certain period through our purchase store.
