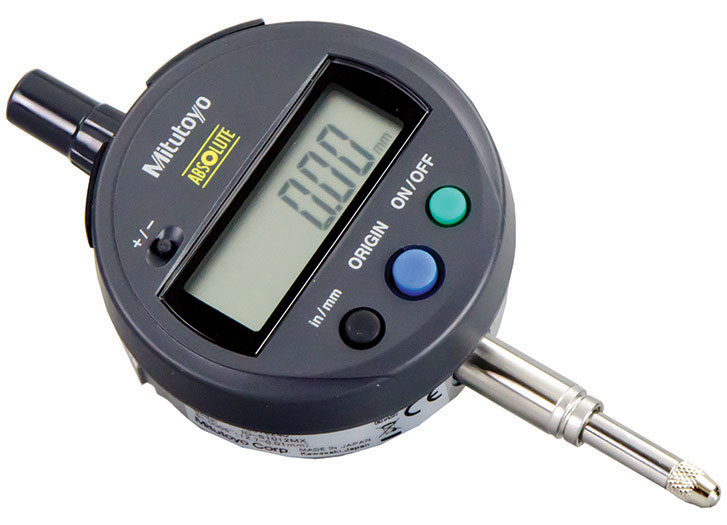

Mitutoyo series 543 digital clock

Producer: MITUTOYO

Category: Standard measuring tools

IDS type Digimatic indicator is a plunger style comparative measuring gauge
LCD readout and SPC connectability
Splash proof construction with membrane sealed buttons
Readout is metric or Imperial in the range 12.7mm (0.5″) with a resolution of 0.01mm (0.0005″)

Request a quote

Contact Zalo for good price

10 TIMES COMPENSATION

If counterfeit goods are detected

FREE SHIPPING

Receive within 24-72 hours

12 MONTH WARRANTY

With all products

24/7 SUPPORT VIA ZALO

Find zalo number 0979761016

Description information

FEATURES

As compact as standard Series 2 dial indicators.
After the initial zero-setting with the ORIGIN button, the repeated absolute positioning is no longer necessary over the entire battery life.
Employing the ABSOLUTE linear encoder, the ID-S always displays the spindle “Absolute Position” from the origin at power-on. Also unlimited response speed eliminates over-speed errors.

SPC data output.

Technical Data
Accuracy: Refer to the list of specifications.
Resolution: 0.01mm, 0.001mm, .0005″/0.01mm, .0001”/0.001mm or .00005”/0.001mm
Display: LCD
Length standard: ABSOLUTE electrostatic capacitance type linear encoder
Max. response speed: Unlimited
Measuring force: Refer to the list of specifications
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 20,000 hours under normal use
Dust/Water protection level: IP42 (IP53:543-794, 543-795, 543-796)
Function
Origin-set, Zeroset, Counting direction switching, Power ON/OFF, Data output, inch/mm conversion
(in inch/metric models only)
Alarm: Low voltage, Counting value composition error, Over-flow error

Optional Accessories
Inch/Metric (ANSI/AGD) Stem dia. 3/8”, #4-48 UNF Thread		Inch/Metric and Metric (ISO/JIS) Stem ø 8mm, M2.5 x 0.45 Thread
Back-Lug	101306		101040
Back-Flat	101039		101039
Lifting Lever	21EZA199		21EZA198
Lifting Cable	540774		540774
Lifting Knob	21EZA150		21EZA105
Connecting Cable 1m	905338		905338
Connecting Cable 2m	905409		905409
SR44 Battery	938882		938882
