Feasa Enterprises Limited LED Analyzer 5F ( 5 Channel configurations type)
Feasa Enterprises Limited 5F LED Analyzer (5-channel configuration type)
Interface: USB, RS232, Daisy Chain, External Trigger
The ultimate solution for LED intensity problems. The Feasa analyzer is an advanced solution for testing multiple LEDs for color and brightness simultaneously. Available in two models: Feasa-I (ICT) and Feasa-F (Function). Available in 3, 5, 10 and 20 channel configurations.
USB provides a very simple interface to the LED Analyzer without the need for additional power supply. Very high data transfer rates, up to 460800 baud. Easy to use RS232 serial port with maximum data transfer rate of 115200. The device requires the use of an external power supply.
Feasa LED Analyser 5F
The Ultimate Solution to LED Intensity Issues
The Feasa Analyzer is an innovative solution for testing multiple LEDs simultaneously for Color and Brightness. There are two Models, Feasa-I(ICT) and Feasa-F(Functional). These can be ordered in 3, 5, 10 and 20 Channel configurations.
Pic.: Feasa LED Analyzer 5-F (5 channels) at Semiki's warehouse
Feasa LED Analyzers are multichannel LED test tools which measure LED output for color and intensity.
• Feasa test solutions are a popular choice for PCB production environments worldwide as they ensure the traceable measurement of individual LEDs.
• Fast, compact, robust and easy to integrate, the Feasa LED analyzer is capable of testing 100 LEDs in less than 3 seconds.
Our products are used in markets such as Automotive, Aerospace, Medical Devices, Telecommunications, White Goods, Lighting and Computing.
• The Feasa LED Analyzer is supplied with an extensive suite of software to help with the integration of our system into your Test Station.
• We provide DLLs and Labview drivers for use with VB, C++, C# and National Instruments Labview, or any software platform that can send or receive ASCII string commands.
• Test plans are also provided for Agilent 3070 and Genrad/Teradyne ICT platforms.
Video : Feasa LED Analyzer | intro
► In Circuit Test Analyzer :
• The Feasa In Circuit Test LED analyzer is available in 3,5,10 and 20 Channel configurations.
• Interface to the device is via RS232 or a 20 pin Addressable Port. The unit has the ability to be triggered externally by an event.
• The dimensions of the 3,5,10 channel units are 100x29x50mm and the 20 channel is 140x29x50mm.
• Each Channel Fiber is 0.6m in length with a 1mm diameter and a bend radius of 15mm.
• The operating wavelength range is 450nm-650nm with a temp range of 0-50°C.
• Output: Red, Green, Blue (RGB), Hue, Saturation, Intensity (HSI), Dominant Wavelength, CCT, CIE xy, CIE u'v' depending on interface used.
• Drivers/ Software: Test Models for Agilent i3070, Test Code for Teradyne, DLL used for Testing, Pro-gramming examples in Labview, C++
⇒ Models: FEASA 3I / FEASA 5I / FEASA10I / FEASA 20I
► Functional Analyzer:
• The Feasa Functional LED Analyzer is available in 3,5,10 and 20 channel configurations. Interface to the device is via USB or RS232 and has a Daisy Chain capability for up to 30 analyzers.
• The dimensions of the 3,5 and 10 channel units are 86x57x50mm and the 20 channel units are 127x57x55mm.
• Each channel has a fiber of 0.6m in length with a 1mm diameter inc. cladding and a bend radius of 15mm.
• The operating wavelength range is 450nm-650nm with a temperature range of 0-50°C.
• Output: Red, Green, Blue (RGB), Hue, Saturation, Intensity (HSI), Dominant Wavelength, CCT, CIE xy, CIE u'v' depending on interface used.
• Drivers/ Software: DLL used for Testing, Programming examples in Labview, C++
⇒ Models: FEASA 3F / FEASA 5F /FEASA 10F/ FEASA 20F
OPTICAL HEADS
OH Series
• Feasa Optical Heads are designed for use with the Feasa LED Analyzer, to ensure stability when testing the intensity of LEDs.
• The range of Feasa Optical Heads available accommodates variations in LED diameter, LED intensity, the physical limitations of PCBs and fixing restrictions.
• The robust and compact design delivers consistent and repeatable readings with a <10% intensity change over a 1mm placement of the LED.
• The Optical Head compensates for LED placement, facilitates repeatable intensity readings and reduces sensitivity to ambient light.
• Compensation for LED Placement
• Repeatable Intensity Readings
• Reduced sensitivity to ambient light
Optical Head Specification & Ordering Information

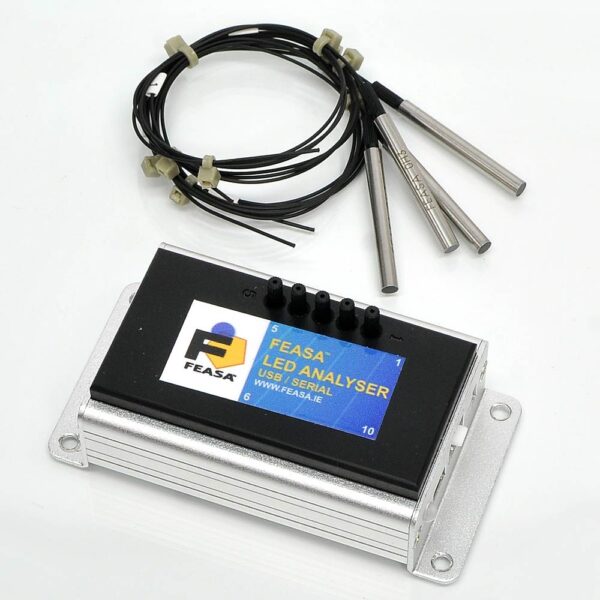

Picture: FEASA 5F (5 channels) with optical heads OH3
Maintenance and calibration :
► We also have calibration certificate attached ( optional )
► Please re-calibrate after use for a certain period through our purchase store.
