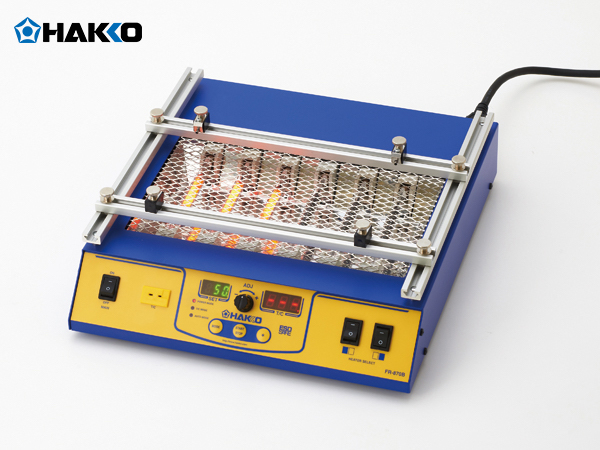

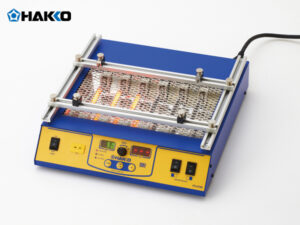

Hakko FR870B-81 (made in Japan) is a preheater designed to heat printed circuit boards (PCBs) from below.

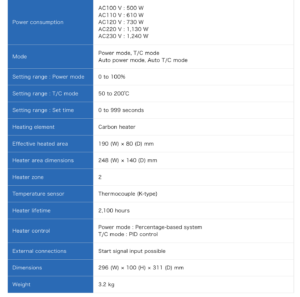

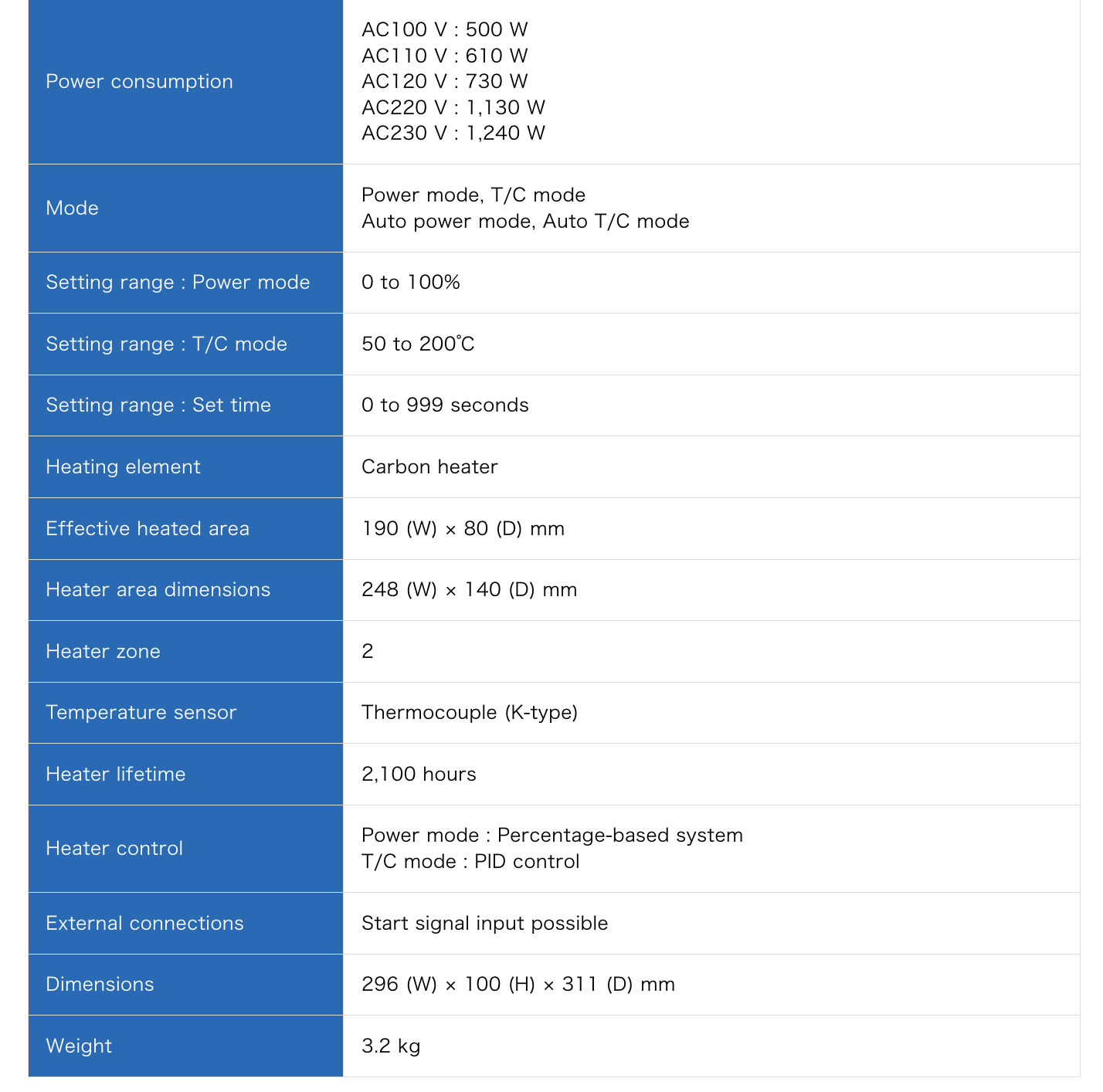

Input voltage: FR870B-81 is the version that uses 100V AC voltage.
Power consumption: 500W (for 100V version).
The main function of this device is to heat the entire circuit board, making the soldering and removing of electronic components easier and more efficient.
Heating element: High performance carbon fiber.
Number of heating zones: 2 independent switchable zones.
Effective heating area (W x D): 190 x 80 mm (7.5 x 3.2 in.).
Heating area dimensions (W x D): 248 x 140 mm (9.8 x 5.5 in.).
Temperature range (thermocouple mode): 50 – 200°C (122 – 392°F).
Temperature sensor: Type K thermocouple.
Heating bulb life: About 2,100 hours.
Operating mode
Manual mode:
Power: Controls output power in percentage (from 0 to 100%).
Thermocouple: Temperature control using thermocouple.
Soldering and Desoldering Support: This device is especially useful when working with medium to high volume circuit boards, which have a large heat dissipation capacity and can “suck” a lot of energy from the soldering iron or heat gun, making soldering difficult. By preheating the circuit board, the FR870B-81 makes it easier to reach the necessary temperature for soldering.
Supports Pb-free soldering: When soldering lead-free components, the required temperature is higher than that of conventional soldering. FR870B-81 helps provide additional heat, ensuring the quality of the solder joint.
Component Repair: This device quickly and evenly heats the entire circuit board, making it ideal for repairing or adding components to multi-layer circuit boards, which require greater heat resistance.
Create a clean working environment: Because it uses non-contact infrared heating method, the device does not pollute the air, suitable for industrial applications that require a clean working environment.
Infrared heating: Using high efficiency carbon fiber heater, helps to heat up the entire work surface quickly and evenly.
2-zone heating system: There are two independent heating zones that can be switched, saving energy by only heating one part of the circuit board.
Multiple operating modes: Supports manual or automatic heating modes, allowing users to control heat output based on power or using a thermocouple sensor.
Compact design: Has a compact desktop design, does not take up much space.
Six carbon heaters preheat the whole board immediately after turning the power on. Full-board heating and quick temperature ramping get the job done quickly when reworking or mounting post-production components to multilayer substrates that require greater thermal capacity. As it does not contaminate the air, the FR-870B also offers powerful support for a clean workplace environment in industrial applications.
Auto mode step-heating method (maximum of three steps/step 1 to 3) heats PWBs slowly and evenly, letting you transmit 100% of the heat energy from a rework system and soldering iron. You'll never be forced to work with a higher set temperature due to insufficient heat again.
Power mode lets you control heater output using settings from 0% to 100%
Once the temperature of the sensor attached to the board reaches the set temperature, the heater is on-off controlled so that the board temperature can be maintained at the set temperature.
Once a PWB is positioned, boards of the same dimensions can be removed or attached in a single motion. This design greatly supports continuous work.

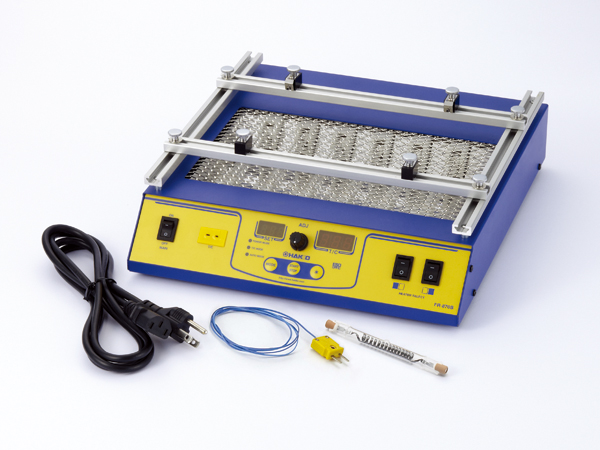

Standard Accessories: Preheater FR870B-81, Thermocouple (type K), Power cord, Heater lamp (spare), Instruction manual
Maintenance and calibration :
► We also have calibration certificate attached ( optional )
► Please re-calibrate after use for a certain period through our purchase store.
