SHISHIDO SSD Japan Handy CPM: Statiron DP
Our unique rotating feature is ideal for testing and inspecting ionizers attached to equipment.
Oscillating Circuit Breaker Signal Detection Method
Panel size 70×32 mm (IEC standard 150×150 mm)
Plate capacity 12pF ±1pF
Measurement accuracy ±10% rdg ± 2 digits
Voltage measurement range 0~±1999 V
Measurement time range 0.0 to 99.9 seconds
Accessories AA DC 1.5V batteries (2 pcs), Soft case, Grounding cable
It is a convenient CPM function type that can check the ion balance and decay time of ionizers. Apply 1000V to the plate and measure the decay time up to 100V. Because of its compact size, it is best for ionization testing at the work area. Original SSD rotary head Even if the ionizer installed in the device is not disassembled, it can still be tested with the original rotary head. Simple and easy operation. Easy viewing with large LCD screen.
Shishido Japan
Multi Function ESD meter
model: STATIRON DP
Features:
– As handy type of CPM function, can check the ion balance and decay time of ionizers.Impressed 1000V onto the plate and measure the decay time up to 100V.
– Because it is compact size, it is best for checking the ionizer at the working area.
– SSD original Rotary head Even if the ionizer installed in the device is not detached, it is possible to check with original rotary head.
– Simple and Easy Operation.
– Easy to see with big LCD display.
* The measurement value is not necessarily corresponding to the numerical value of the IEC standards

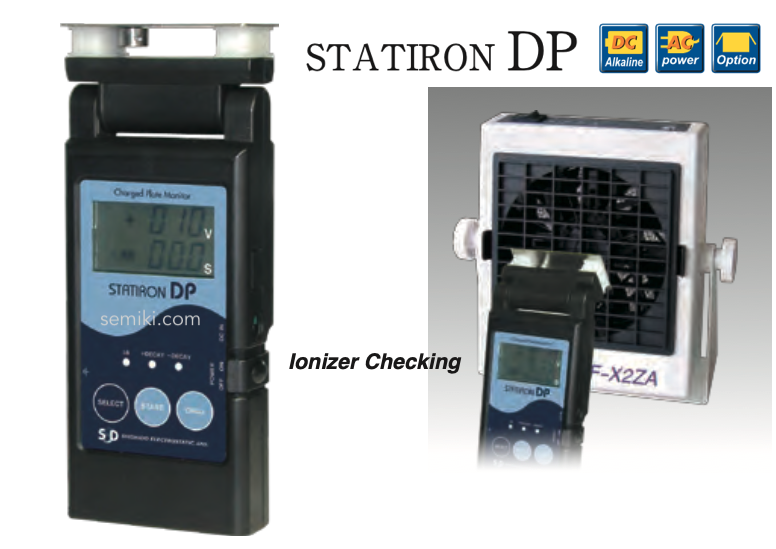

► Application Example: Characteristics evaluation of various ionizers

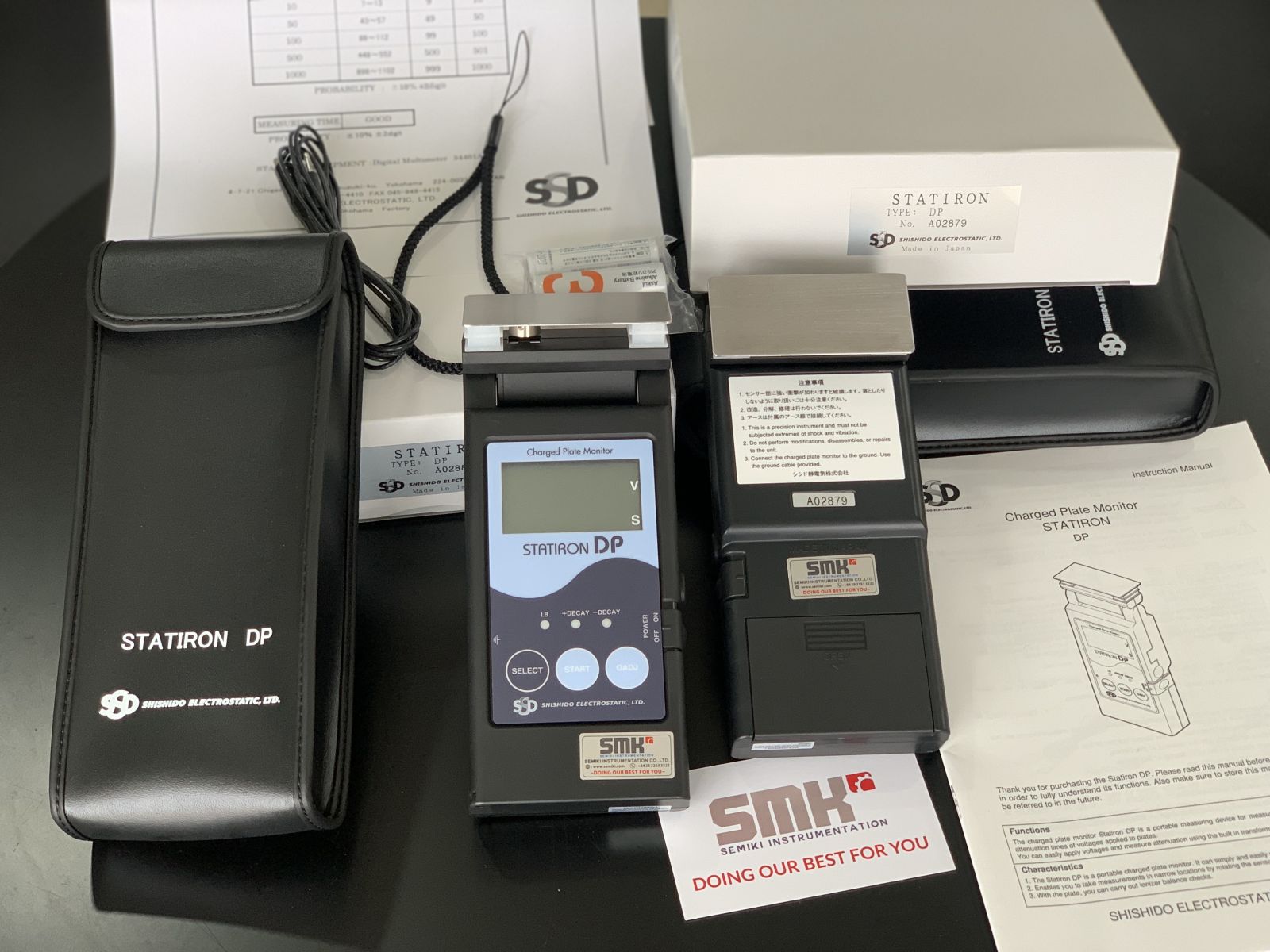

Pic.: Shishido STATIRON DP at Semiki's warehouse

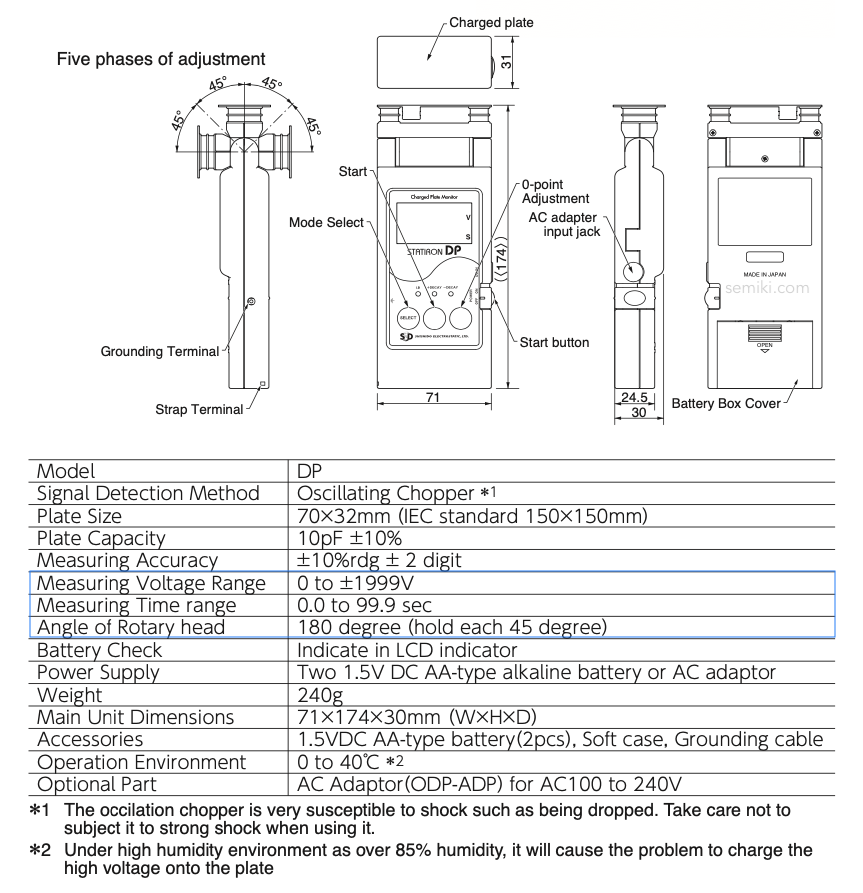

Specifications:
MODEL: STATIRON DP
VIDEO: Shishido Multi Function ESD meter STATIRON DP | reviews (Vietnamese)
Maintenance and calibration :
► We also have calibration certificate attached ( optional )
► Please re-calibrate after use for a certain period through our purchase store.
