NF Corp Multifunction Generator WF1967/WF1968 – Oscilloscope 200 MHz (sine wave): Unless otherwise specified, the value assumes the following conditions: continuous oscillation, load of 50Ω, oscillation setting of 10 Vp-p/50Ω, DC offset setting of 0 V , auto range, waveform amplitude range of ±FS, external addition turned off, AC voltage is the rms value.
*Ki and Mi represent 210=1024 and 220=1048576, respectively. IEC 60027-2/IEEE 1541-2002
*1 : Guaranteed numeric value. Other numeric values are norminal or typical (typ.) values

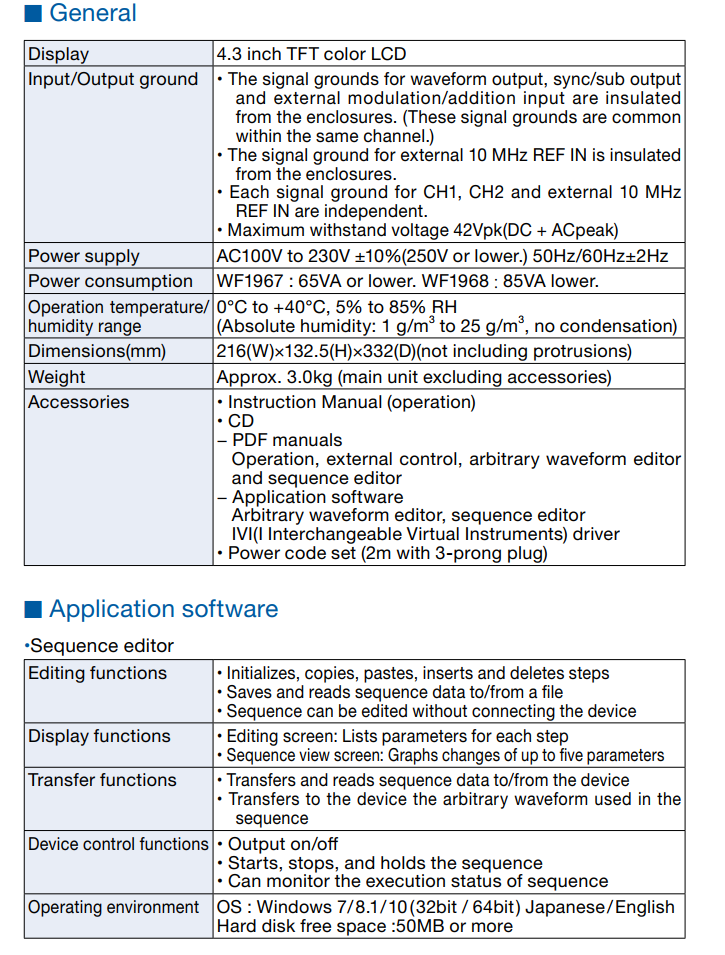

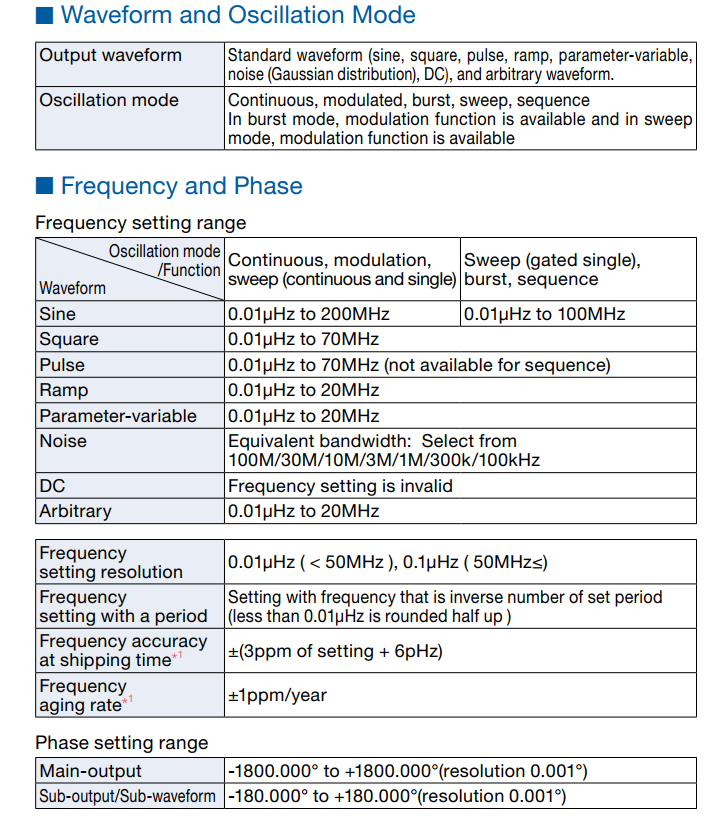

SPECIFICATIONS:

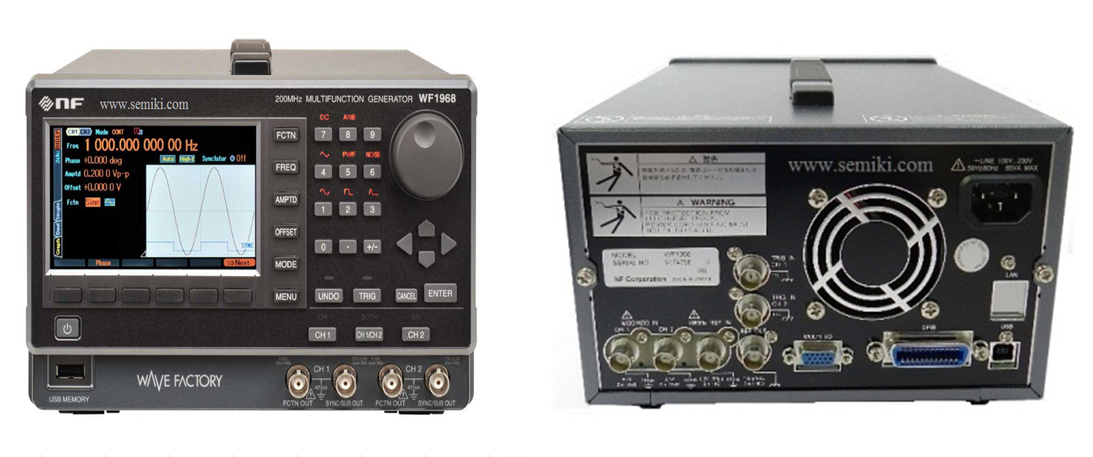

Picture: NF Multifunction Generator WF1968 at Semiki's warehouse
Maintenance and calibration :
► We also have calibration certificate attached ( optional )
► Please re-calibrate after use for a certain period through our purchase store. Local Vietnam : SEMIKI CORP
