HANNA Instruments
OZAKI MFG Japan
Model H Dial Thickness Gauge
Range: 0 – 10mm
Graduation: 0.01mm
Accuracy: ±20 µm
Flat contact point Ø10mm and anvil (ceramic)
· Thickness gauge with 0.005 mm graduation.
· Ideal for measuring the thickness of small precision objects, films, special fabrics, etc.
These thickness gauges are especially handy for measuring thickness of small parts, metal, rubber, vinyl, paper, foil and other sheet material.
[Features]
Thickness gauge with scale intervals of 0.01 mm.
· Ideal for measuring the thickness of precise small objects, films, special fabrics, etc.
· Available with two measurement ranges 0 to 10 mm

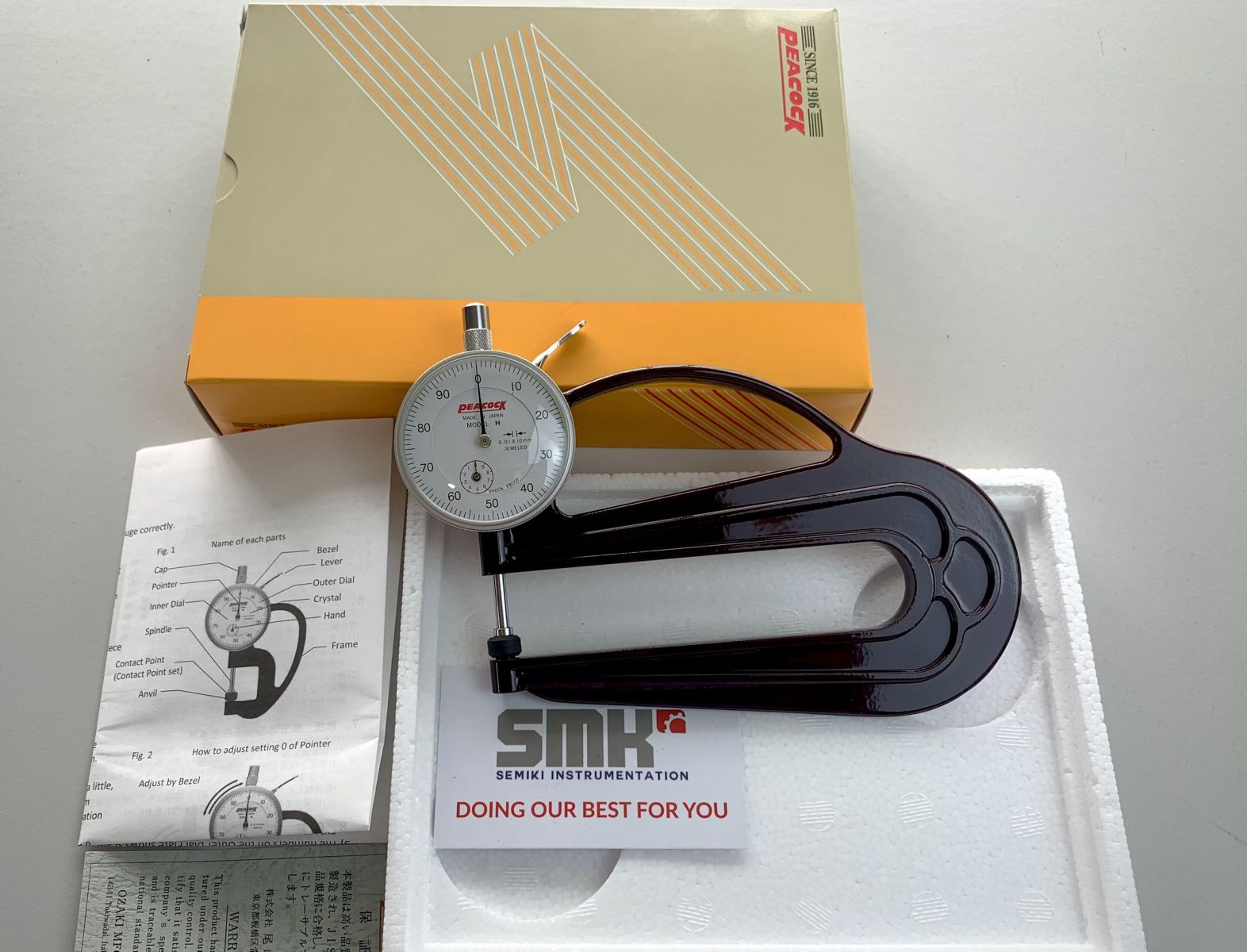

Picture: PEACOCK model H (0-10mm/ 0.01mm) at Semiki's warehouse
Model H
Range: 0 – 10mm
Graduation: 0.01mm
Accuracy: ±20 µm
Ø10mm flat contact point and anvil (ceramic)
Maintenance and calibration :
► We also have calibration certificate attached ( optional )
► Please re-calibrate after use for a certain period through our purchase store.
DISTRIBUTED BY:
Semiki instrumentation Co., Ltd
Email: sales@semiki.com
Office tel: +84 28 2253 3522
~DOING OUR BEST FOR YOU~
