SÚNG CÂN BẰNG ION SHISHIDO Piezonizer AGZⅢ

Nhà sản xuất:

Danh mục: Quạt thổi ion hoá

SÚNG CÂN BẰNG ION SHISHIDO Piezonizer AGZⅢ

The PIEZONIZER AGZⅡ-PA is a compact and lightweight air gun type ionizer that eliminates static electricity from charged objects as well as a wave motion nozzle feature to powerfully blow away dust attached by static electricity with pulses of air.
Since the high-voltage power supply and the air valve are mounted in the main unit, an external controllers are unnecessary.

SHISHIDO Ion blow gun PIEZONIZER AGZ III

The PIEZONIZER AGZⅡ-PA is a compact and lightweight air gun type ionizer that eliminates static electricity from charged objects as well as a wave motion nozzle feature

to powerfully blow away dust attached by static electricity with pulses of air.

Features:

-Fits well into the operator’s hand and, at a lightweight 330g, greatly increases work efficiency.
-Wave motion nozzle powerfully blows away dust with pulses of air.
-High frequency AC method increases static elimination and achieves a good ion balance.
-Accompanying cable uses a robot cable and is very flexible.
-High voltage power supply and air valve are attached to the main unit so there is no need for a separate controller.

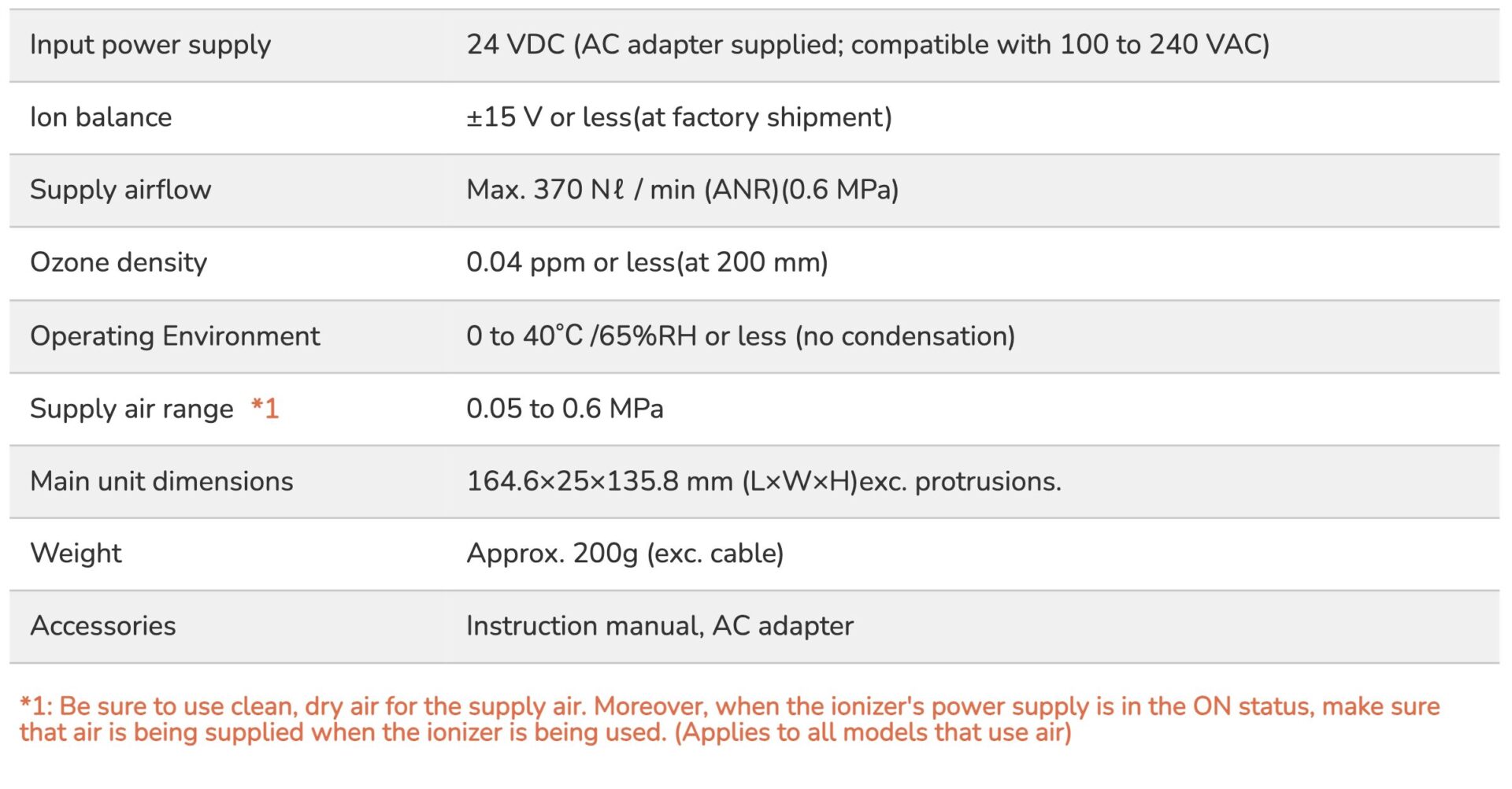

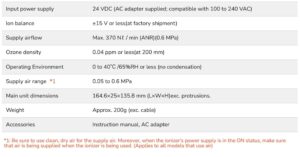

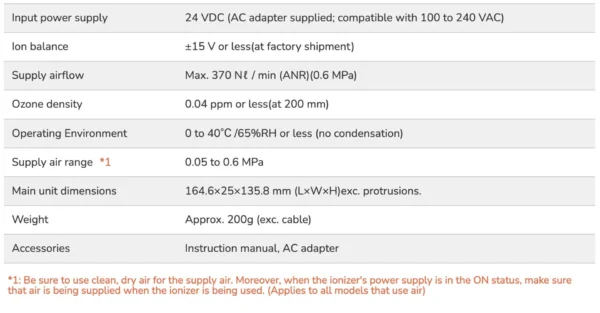

Specification :

MODEL: PIEZONIZER AGZ Ⅲ

Model	AGZ Ⅲ
Input power supply	24 VDC (AC adapter supplied; compatible with 100 to 240 VAC)
Ion balance	±15 V or less(at factory shipment)
Supply airflow	Max. 370 Nℓ / min (ANR)(0.6 MPa)
Ozone density	0.04 ppm or less(at 200 mm)
Operating Environment	0 to 40℃ /65%RH or less (no condensation)
Supply air range	0.05 to 0.6 MPa
Main unit dimensions	164.6×25×135.8 mm (L×W×H)exc. protrusions.
Weight	Approx. 200g (exc. cable)
Accessories	Instruction manual, AC adapter

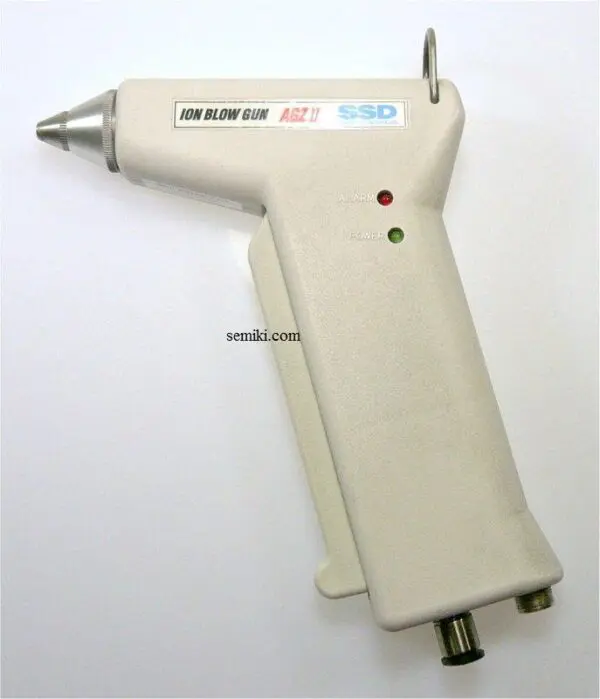

SEMIKI-SHISHIDO PIEZONIZER AGZ III body

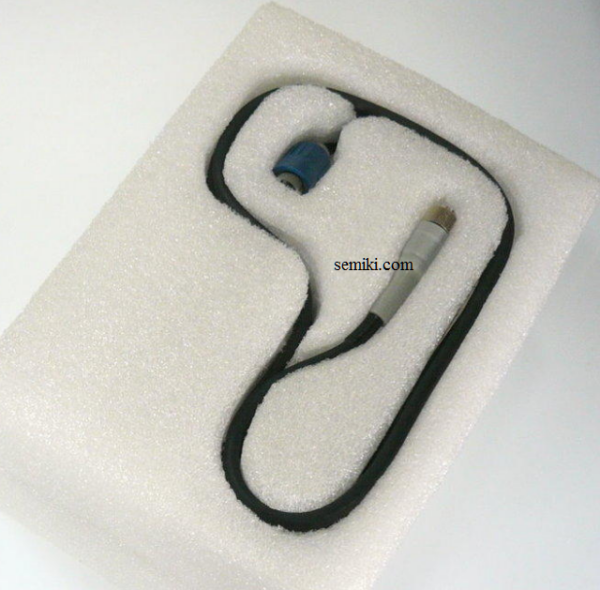

SEMIKI-SHISHIDO PIEZONIZER AGZ III cable

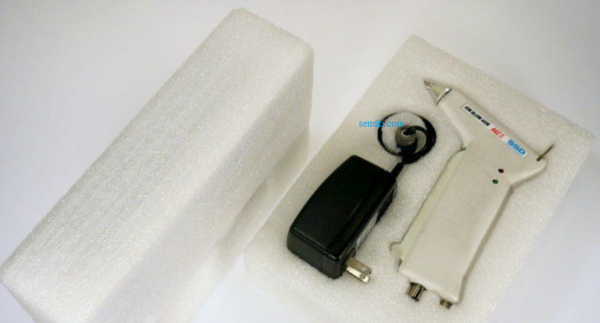

picture: SHISHIDO PIEZONIZER AGZ III at Semiki’s warehouse

MODEL: PIEZONIZER AGZ Ⅲ-PA

Model	AGZ Ⅱ-PA
Input power supply	24 VDC (AC adapter supplied; compatible with 100 to 240 VAC)
Current consumption	0.1 A
Ozone density	0.04 ppm or less(at 200 mm)
Fluid used	Clean air
Operating Environment	0 to 40℃/65%RH or less (no condensation)
Supply air range	0.3 to 0.6 MPa
Main unit dimensions	180×25×175 mm (L×W×H)(when wave motion nozzle is attached)
Weight	Approx. 330g (when only the wave motion nozzle is attached)
Standard Part	Operation manual, AC adapter, connector cable,wave motion nozzle, adjustable flow nozzle

Picture: SEMIKI-SHISHIDO-AGZIII-PA

MODEL: PIEZONIZER AGZⅢ Air Controller OAGⅢ-CB

Model	OAGⅢ-CB
Available model	AGZⅢ
Power Voltage	24 VDC (with AC adaptor AC100~240V use AGZⅢ adaptor)
Electric Consumption	0.2A (with AGZⅢ gun)
Indication	Green: Supply the power and Air to AGZⅢ
Supply Air	Clean and Dried air
Available air pressure	0.05MPa~0.7MPa
Maximum air consumption	500ℓ/min (ANR) only Contoller
Air output control	CONT: Continuously blow, PULSE Hi: High Pulse blow (10Hz), PULSE Lo: Low Pulse blow (5Hz)*5
Input control	Open the INPUT port: Start to work, Close the INPUT port: Stop to work.
Available Environment	0 to 40℃ /85%RH or less (no condensation)
Dimensions	135×55×75 mm (W×H×D)exc. protrusions.
Weight	Approx. 490g
Accessories	Connecting cable with AC adaptor (2m), Connecting cable with AGZⅢ (0.3m), grounding cable, Air tubing (Φ6mm x 3m), Operation manual,

Brush for PIEZONIZER AGZⅢ OAG-BRS
Model	OAG-BRS-1	OAG-BRS-2	OAG-BRS-3
Available model	AGZ/ANZ series
Materials of the brush	nylon
Thickness of brush fibers	diameter Φ0.1 mm	diameter Φ0.2 mm	diameter Φ0.3 mm

===========
