Force and mechanical measuring equipment
AIKOH RZE-T-20 and RZE-T-100 are electronic torque meters used to measure and analyze the tightening force of screwdrivers and screws. They are convenient torque meters with separate measuring and display parts.
The measuring part allows the use of commercially available hexagon heads for a wider range of applications. Usage examples Measurement of torque of retightened and returned screws Measurement of breaking torque
| RZE-T-20 | RZE-T-100 | |
| Max. force | 2000mN・m (20kgf・cm) |
10N・m (100kgf・cm) |
| Min. display unit | 1mN・m (0.01kgf・cm) |
0.001N・m (0.01kgf・cm) |
| Measurement unit | mN・m kgf・cm |
N m kgf・cm |
| Accuracy | ±1%F.S. | |
| Sampling cycle | 1 ms, 5 ms, 16 ms, 50 ms, 125 ms and 250 ms selectable | |
| Display update interval | 1, 2, 5, 10, 20 times/sec. selectable | |
| display | LCD, signed, 5 digits | |
| Output | USB output Analog voltage ±2V/FS Printer output Motorized stand control External contact hold |
|
| Continuous use time | 30 hours after full charge | |
| Power supply | Nickel-metal hydride battery AC adapter Model 780 |
|
| Mass | Approx. 375g | |
| Standard accessories | Display: RZE-S Torque meter Standard attachment |
|
| Options |
Software RZ-3000,
I/O cable RZE-OP-1, I/O cable RZE-OP-2, Mitutoyo DP-1VR printer cable RZE-OP-3, Sanei Electric line thermal printer cable RZE-OP-4 |
|

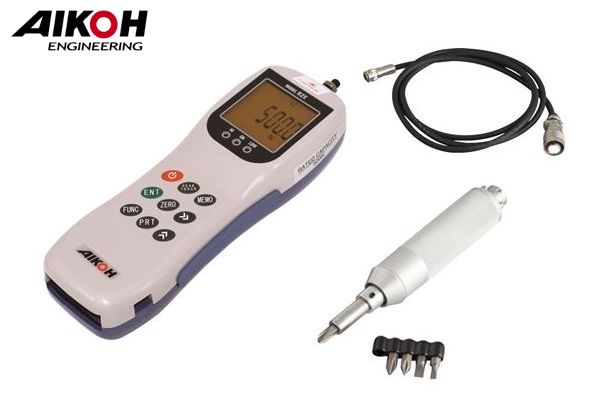

Pic.: torque gauge RZE-T-20 ( 2000mN・m/ 20kgf・cm) with standard accessories
Maintenance and calibration :
► We also have calibration certificate attached ( optional )
► Please re-calibrate after use for a certain period through our purchase store. Local Vietnam : SEMIKI ins
