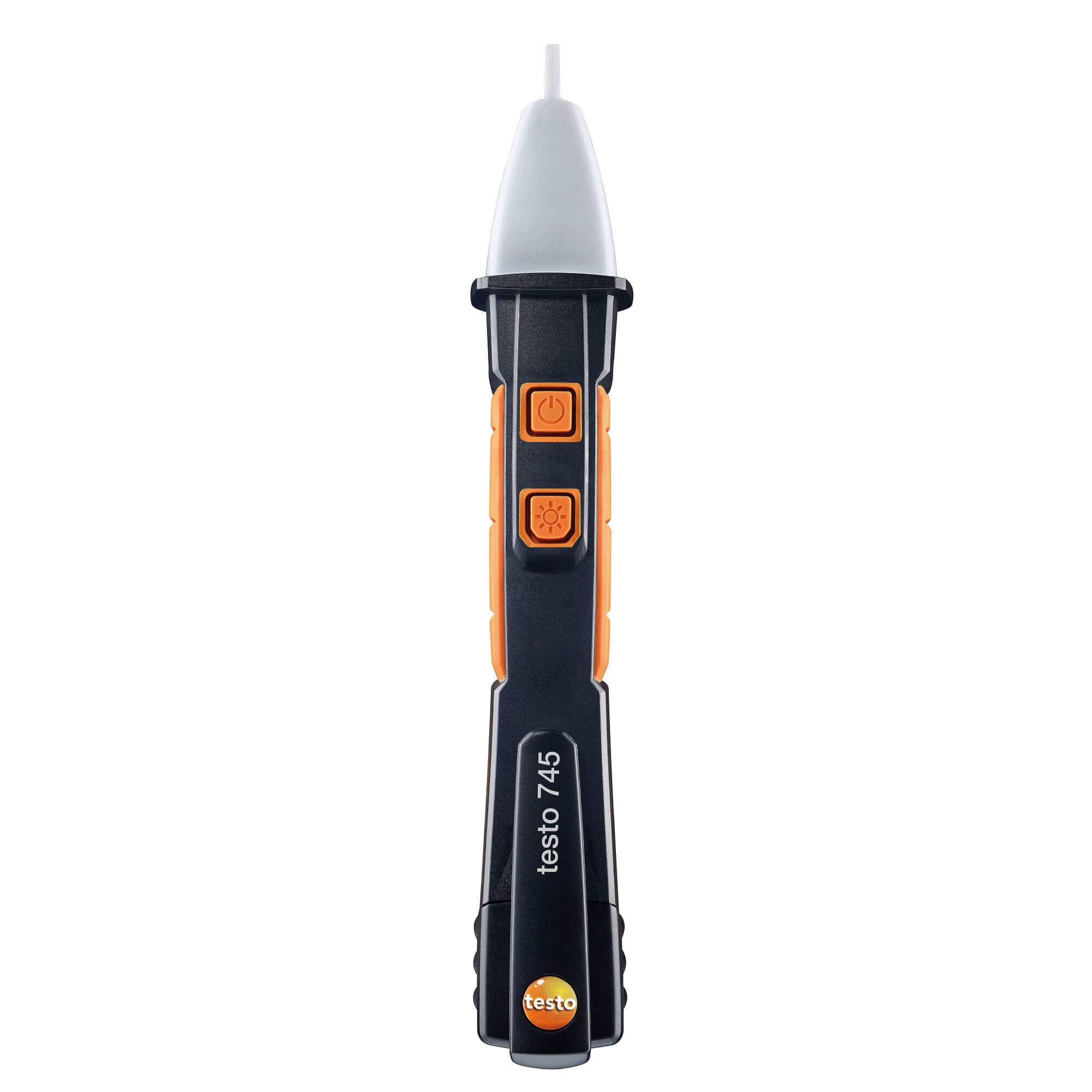

The testo 745 non-contact voltage tester is ideal for quickly checking any suspected fault sources initially.
The testo 745 non-contact voltage tester helps you to quickly identify voltage or leakage. Unlike other devices on the market, the testo 745 has a high-frequency noise signal filter, which allows reliable voltage detection. The device will continuously warn you if a leakage occurs.
The sensitivity of the testo 745 is set in two stages: stage 1 for phase detection, stage 2 for voltage indication. The integrated flashlight allows you to work safely and easily in low light conditions. In addition, the testo 745 voltage tester is also waterproof and dustproof according to IP67.
Provide cover: testo 745, battery, factory test paper and user manual.
| AC VOLTAGE | |
|---|---|
| Measuring range | 12 to 1000 V |
| GENERAL TECHNICAL SPECIFICATIONS | |
|---|---|
| Operating humidity | 0 to 80 %RH |
| Weight | 63 g |
| Size | 155 x 25 x 23 mm |
| Operating temperature | -10 to +50 °C |
| Product color | Black |
| Protection level | IP67 |
| Standard | EN 61326-1; EN 61010-1 |
| Warning | via LED; sound |
| Battery type | 2 AAA batteries |
| Storage temperatures | -15 to +60 °C |
| Overvoltage Category | CAT IV 600V; CAT III 1000V |
| Authorizations | CSA; CE |
