Force and mechanical measuring equipment
Daiichi Keiki Japan Pressure Gauge
All-stainless steel pressure gauge UST Series
Đồng hồ đo áp suất Daiichi Keiki Nhật Bản
Đồng hồ đo áp suất hoàn toàn bằng thép không gỉ

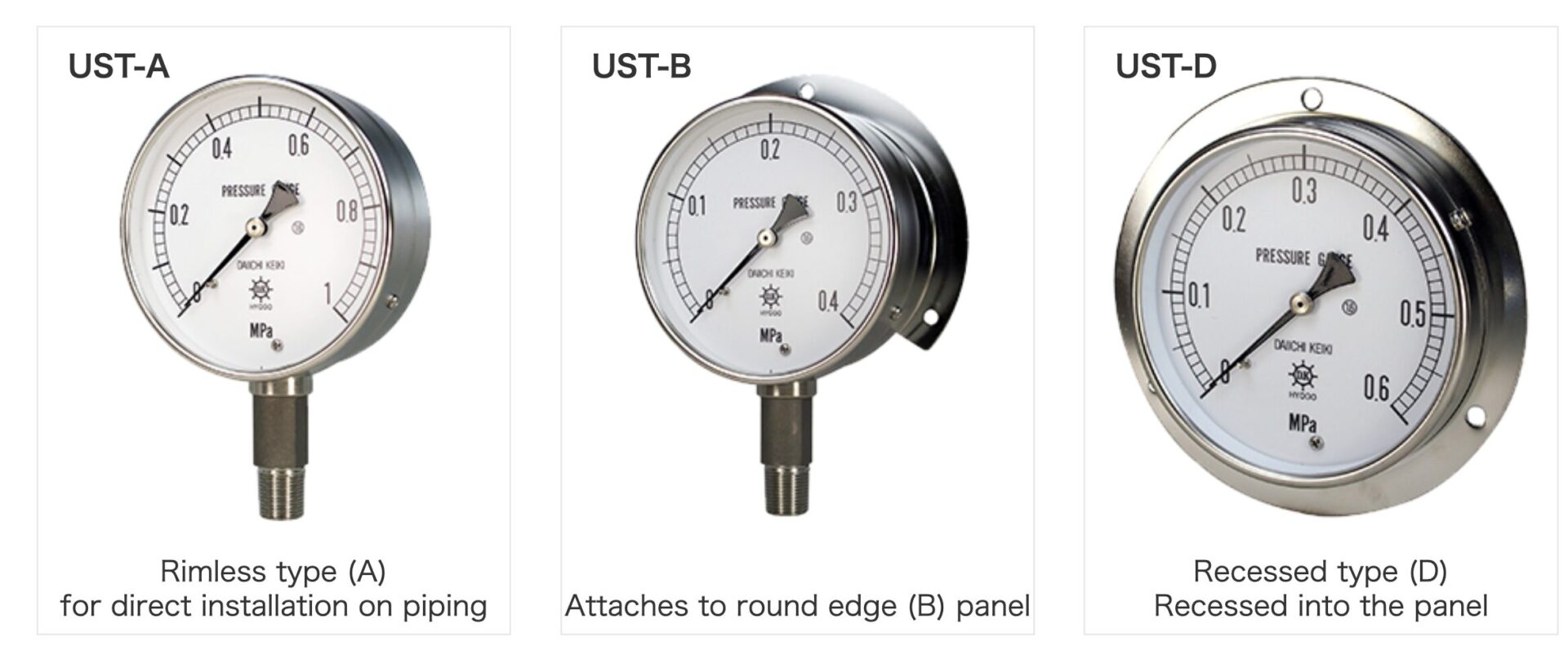

Model: UST-A (Loại A)/ UST-B (Loại B)/ UST-D (Loại D)
Đồng hồ đo áp suất hoàn toàn bằng thép không gỉ Daiichi Keiki Nhật Bản
Không chỉ các phụ kiện (vít và ống bullton), mà tất cả các bộ phận (trừ thủy tinh và terashi) đều được làm bằng thép không gỉ, bao gồm vỏ, bảng đo, kim và vít, v.v.
Loại: Loại tiêu chuẩn không vành
Vật liệu linh kiện tiếp xúc: SUS316
Vật liệu vỏ: SUS304
Độ chính xác: ±1,6% F.S
Phạm vi áp suất (MPA): 0,1 Mpa, 1 Mpa, 1,6 Mpa, 5 Mpa…
Kích thước (φ): 60 mm, 75 mm, 100 mm
Ren kết nối: G1/4, G3/8, R1/4, R3/8, R1/2
Loại: Đồng hồ đo áp suất; Loại: Loại tiêu chuẩn không vành
Vật liệu phần tiếp xúc: SUS316; Vật liệu vỏ: SUS304
Phạm vi áp suất (MPA): 0,1 Mpa, 1 Mpa, 1,6 Mpa, 5 Mpa…
Kích thước (φ): 60 mm, 75 mm, 100 mm
Ren kết nối: G1/4, G3/8, R1/4, R3/8, R1/2
Loại: Đồng hồ đo áp suất; Loại: Loại tiêu chuẩn không vành
Vật liệu phần tiếp xúc: SUS316; Vật liệu vỏ: SUS304
Daiichi Keiki Japan UST All-stainless steel pressure gauge
This device has excellent corrosion resistance because all parts (except glass and terashi) including the liquid contact parts (screws, Bourdon tube), case, scale plate, needle and screws are made of stainless steel. Not only the case, but also the scale plate and needle will not rust and will remain in good condition for a long time.

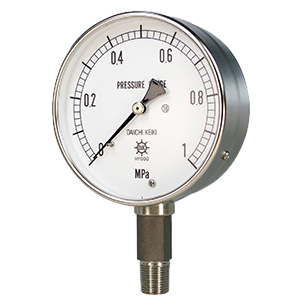

Pic.: Daiichi Keiki UST-AT-R3/8-100:1MPA ( type AT 1MPA/SUS304-SUS306)
Features:
Not only are the fittings (screws and bullton tubes), but also all parts (except glass and terashi) are made of stainless steel, including case, scale board, needle and screw, etc
Type: A Rimless Standard Type
Contact Component Material: SUS316
Case Material: SUS304
Accuracy: ±1.6% F.S
Type: Rimless Standard Type
Contact Component Material: SUS316
Case Material: SUS304
Accuracy: ±1.6% F.S
Pressure Span (MPA): 0.1 Mpa, 1 Mpa, 1.6 Mpa, 5 Mpa…
Dimensions (φ): 60 mm, 75 mm, 100 mm
Connection thread: G1/4, G3/8, R1/4, R3/8, R1/2
Type: Pressure Gauge; Type: Standard type without rim
Contact part material: SUS316; Case material: SUS304
► We also have calibration certificate attached ( optional )
► Please re-calibrate after use for a certain period through our purchase store.
