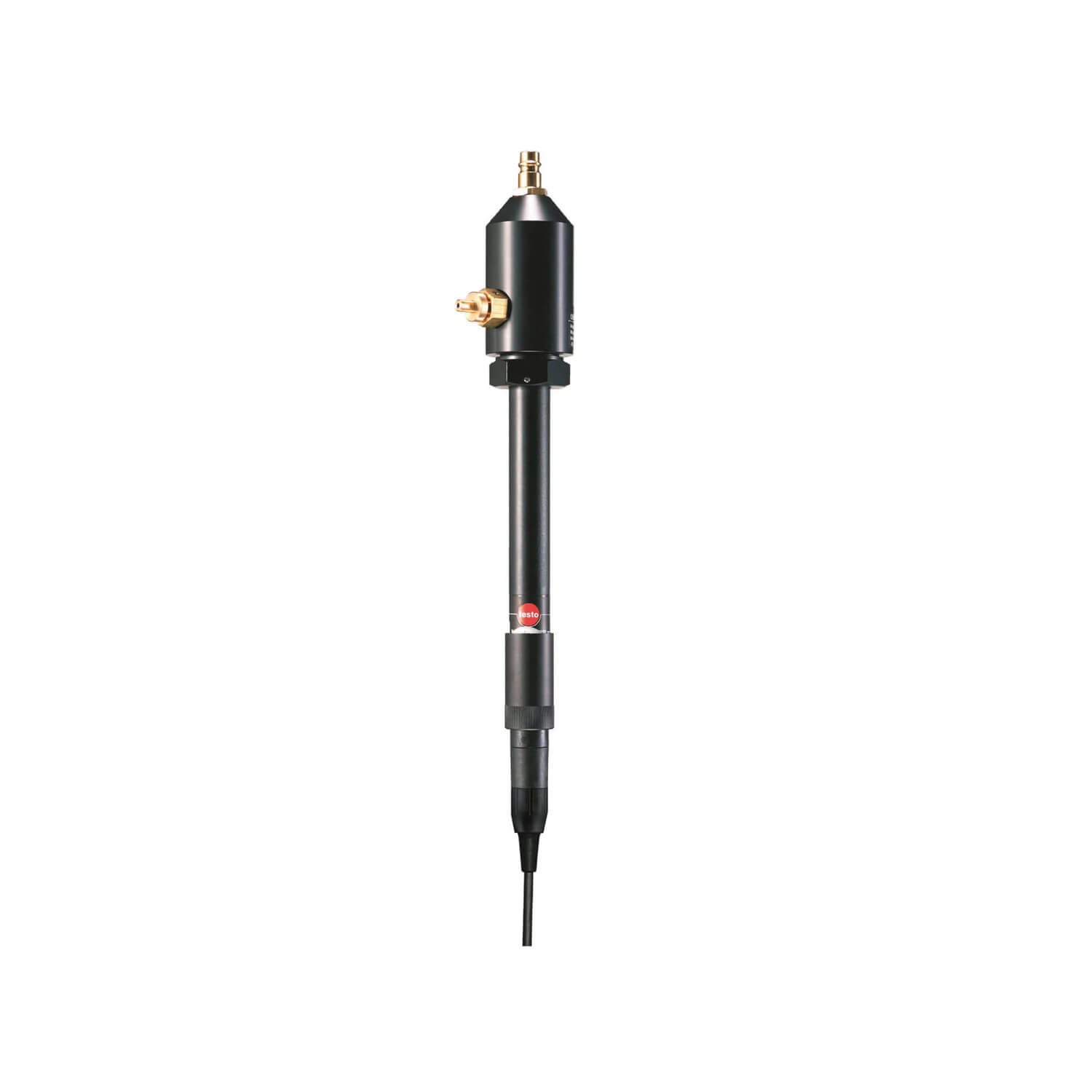

Test compressed air pipelines reliably: the precise Testo 0636 9836 measuring head with suitable measuring chamber, is ideal for accurate and fast determination of dew point pressure.
The Testo 0636 9836 dew point pressure probe is an important device to ensure efficient operation of the compressed air system. In addition to standard adjustment, the probe can also be finely adjusted at the factory with dew point pressure down to -40 °C. Connection to the compressed air system is via a standard plug-in connection (G1/4” internal thread as per ISO 228-1). If required, other standard plug-in connections with 1/4” G thread can also be screwed into the measurement chamber. The probe can also be used to measure indoor air temperature and humidity without the need for a measuring chamber.
| Humidity – Capacitance | |
|---|---|
| Measuring range | 0 to +100 %RH |
| Dew point pressure | |
|---|---|
| Measuring range | -40 to +50 °Ctpd |
| Accuracy | ±0.8 °Ctpd (-4.9 to +50 °Ctpd)
±1 °Ctpd (-9.9 to -5 °Ctpd) ±2 °Ctpd (-19 to -10 °Ctpd) ±3 °Ctpd (-29.9 to -20 °Ctpd) ±4 °Ctpd (-40 to -30 °Ctpd) |
| Response time | 300 seconds |
