Force and mechanical measuring equipment
EISEN EP Series includes pin gauges in various sizes starting from 0.05mm and increasing in 0.01mm increments.
Nominal sizes are marked on the plastic case for gauges up to 0.99 mm; nominal sizes on pin gauges, as well as gauges of 1.00 mm and larger, are laser engraved.
EISEN BATTERY GAUGE
Model: EP Series
Package of pin gauges in different sizes from 0.05mm and increasing in 0.01mm increments
[Features]
• With actual measurement data
• Enables accurate internal diameter measurements to the micron order
• Also optimal for laser scan micrometer master device
Video: PIN GAUGE EISEN | intro (Vietnamese)

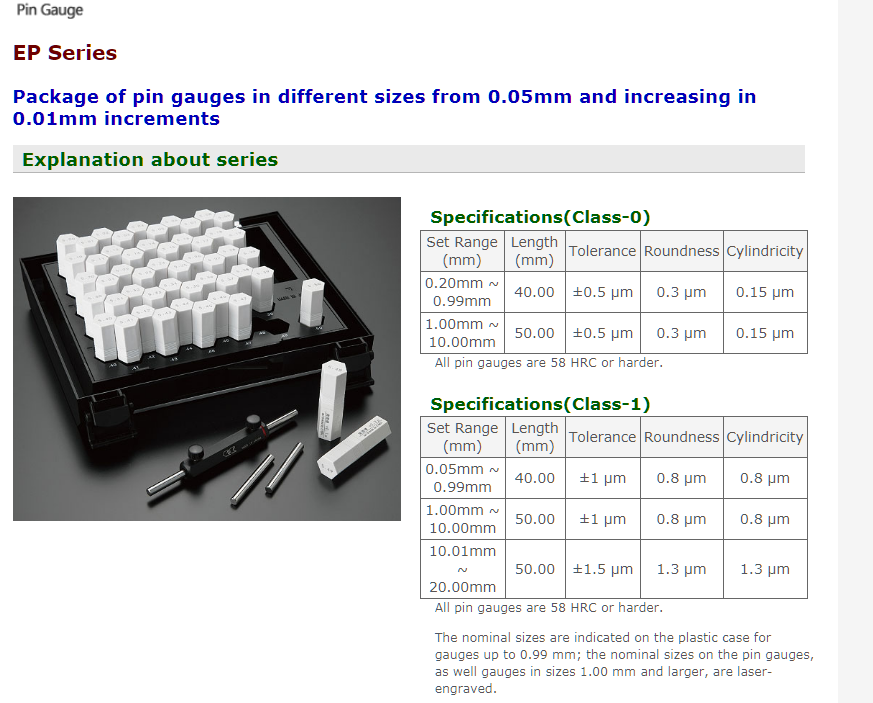

Specifications:
All pin gauges are 58 HRC or harder.

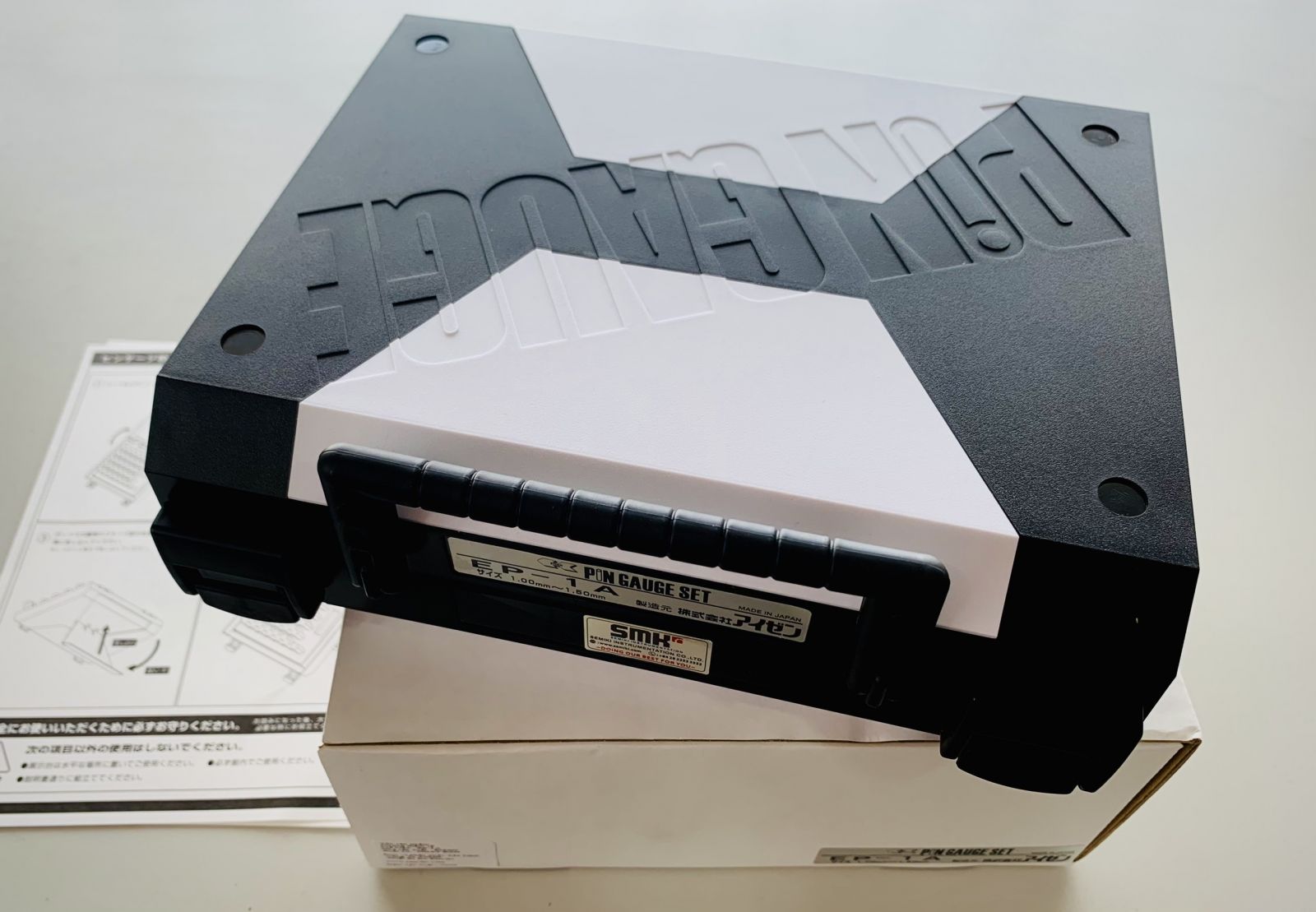

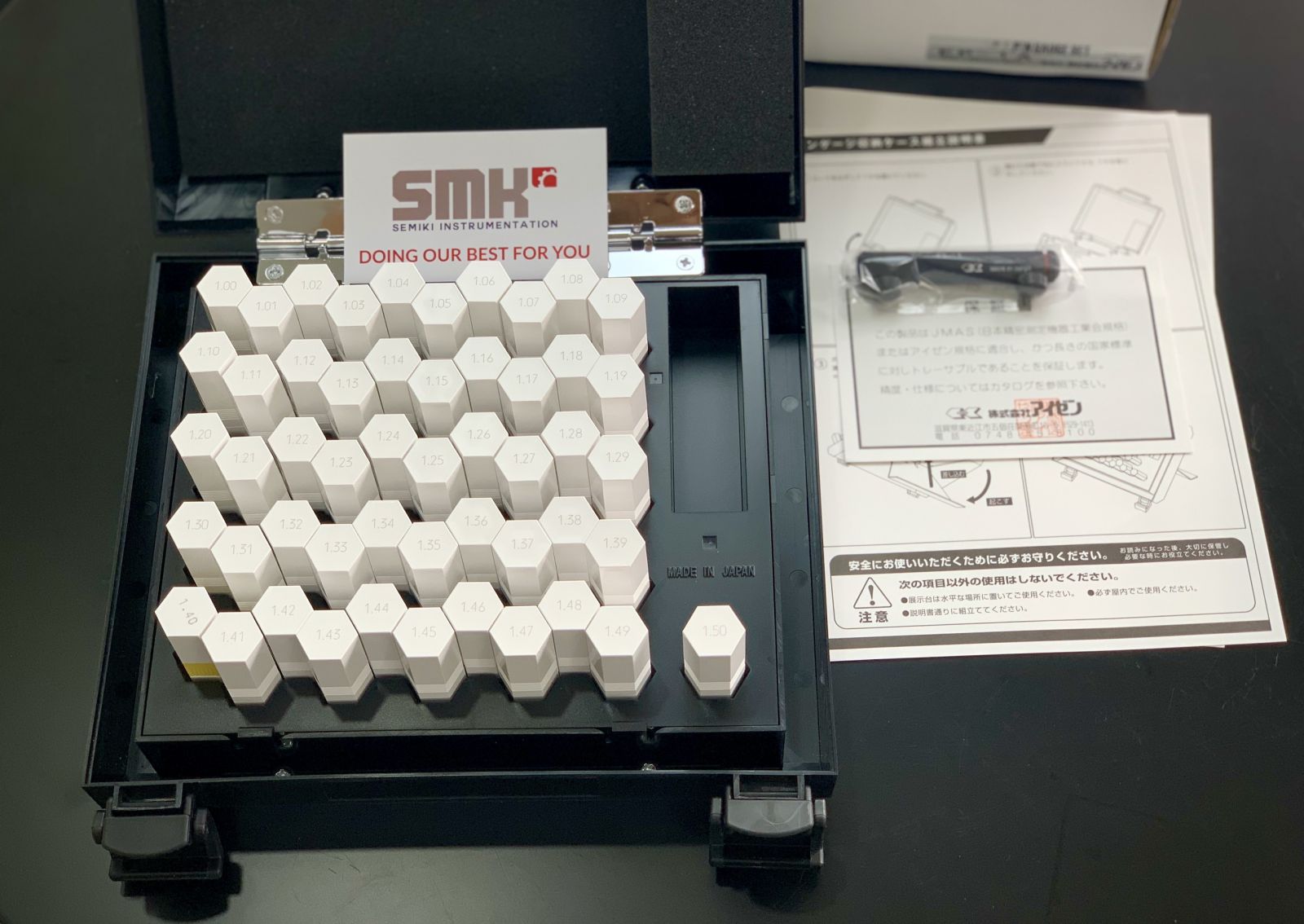

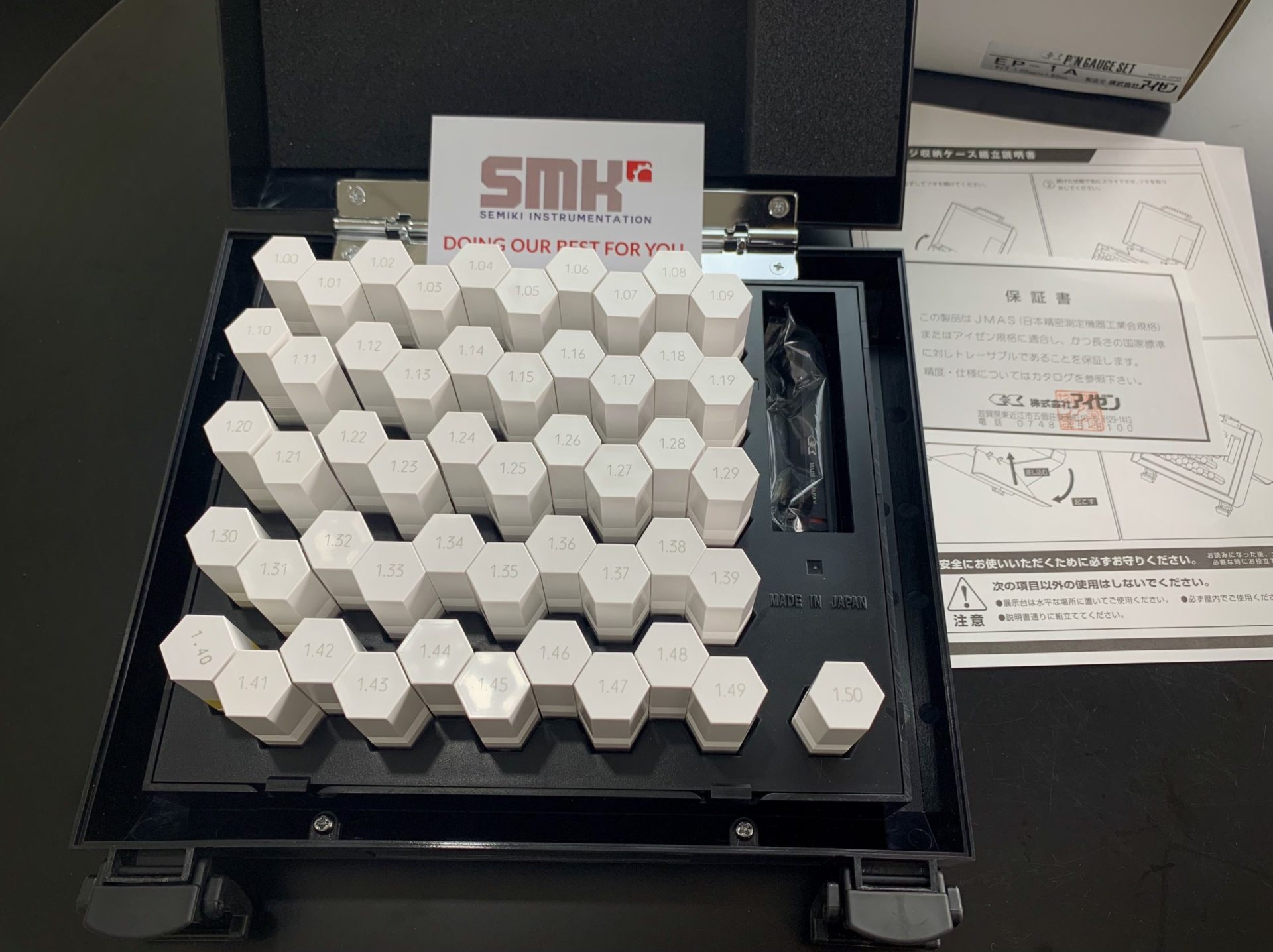

Picture: EISEN EP-1A ( 1.00~1.50mm/ 0.01mm/51pcs) at Semiki's warehouse

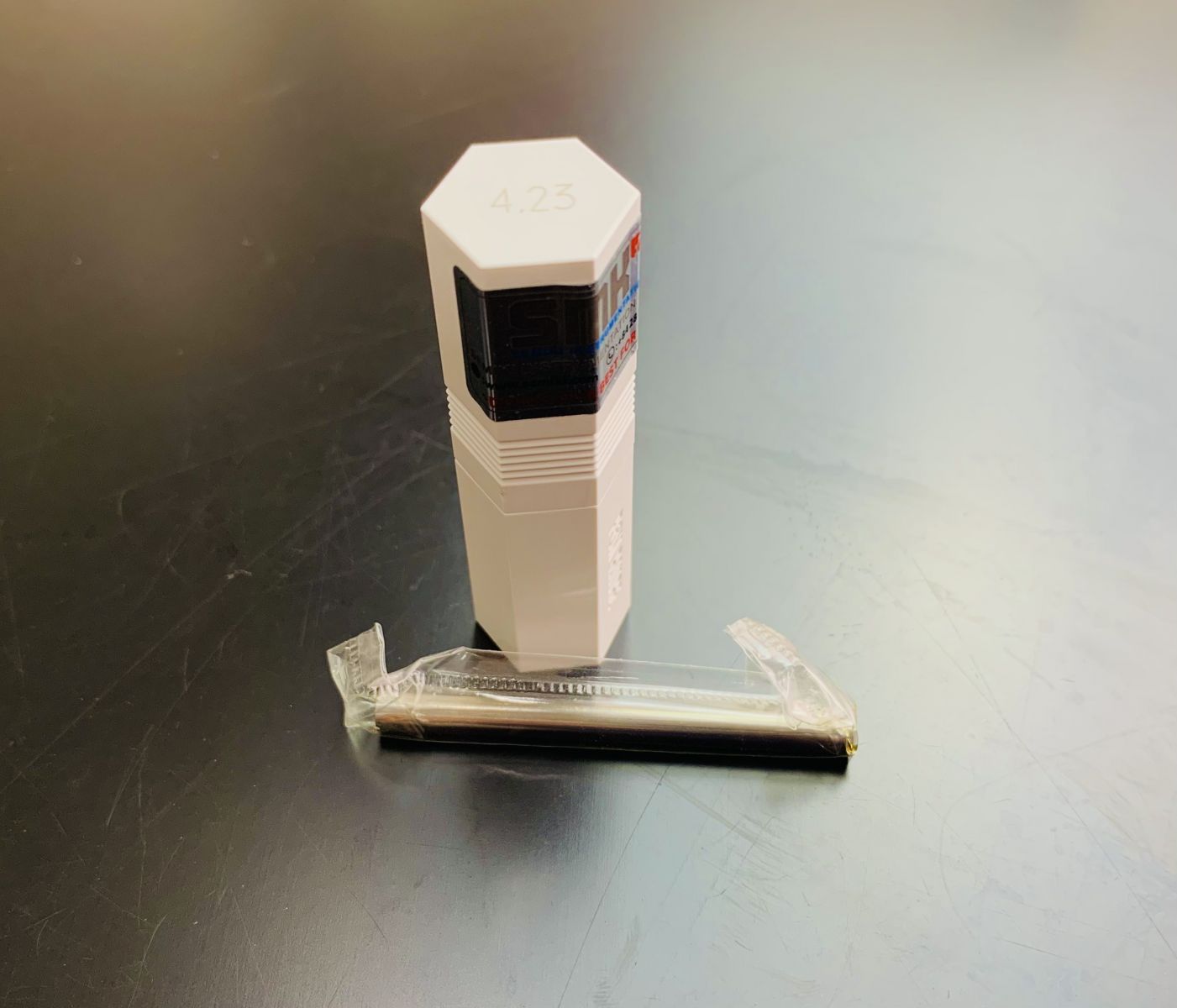

Picture: EISEN PIN φ4.23mm (of EP-4A Set) at Semiki's warehouse
·

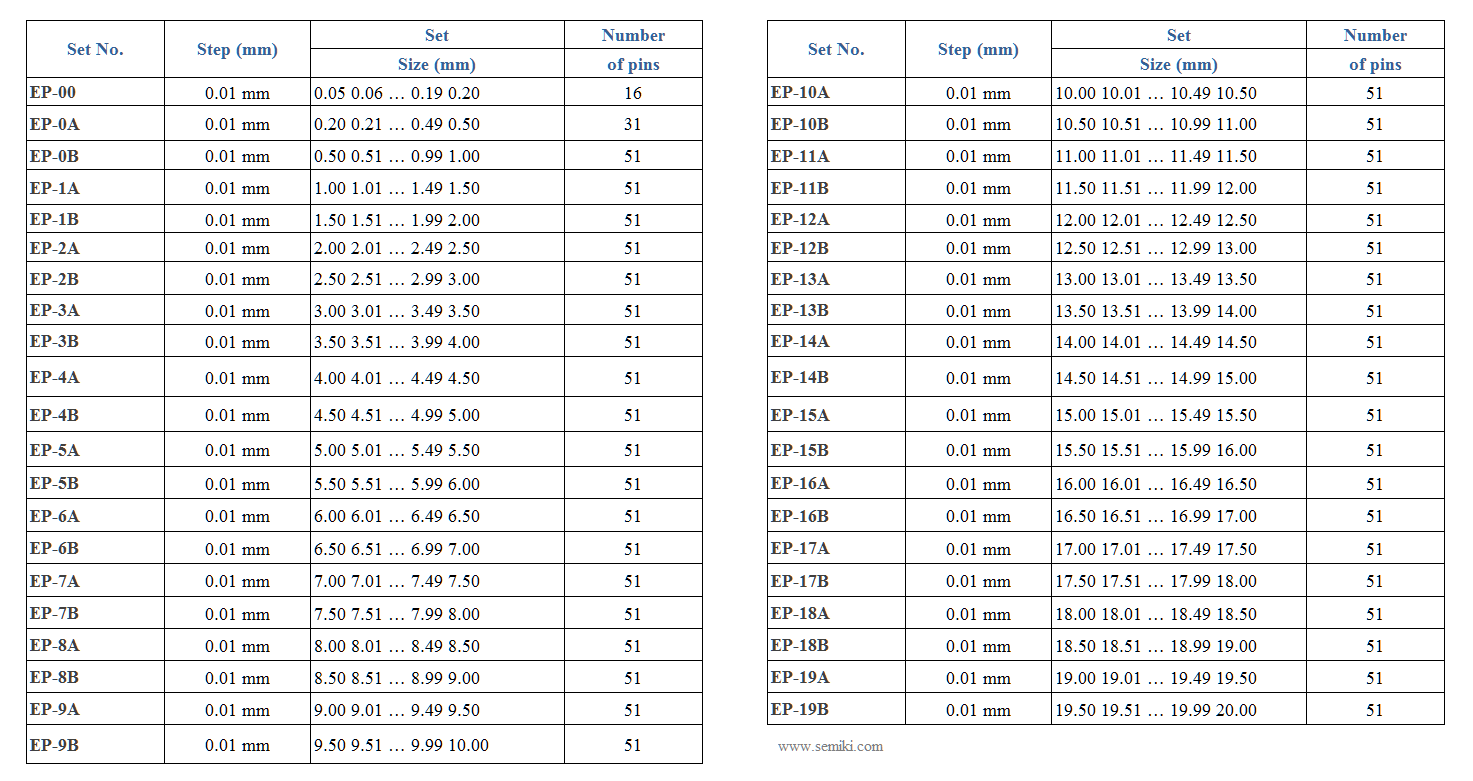

Details of series :

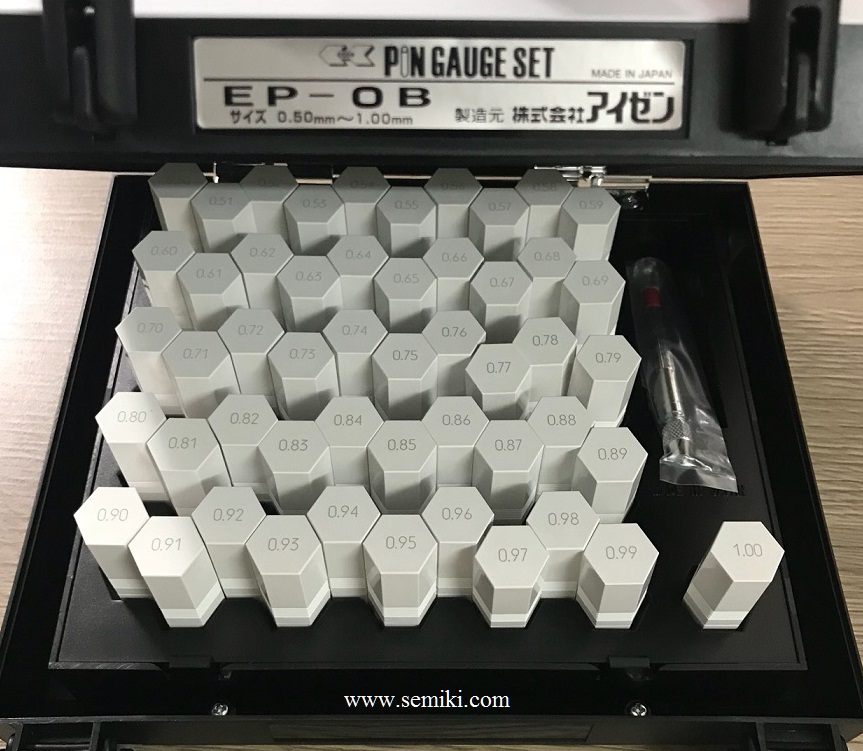

Picture: EISEN EP-0B ( 0.50~1.00mm/ 0.01mm/51pcs) at Semiki's warehouse

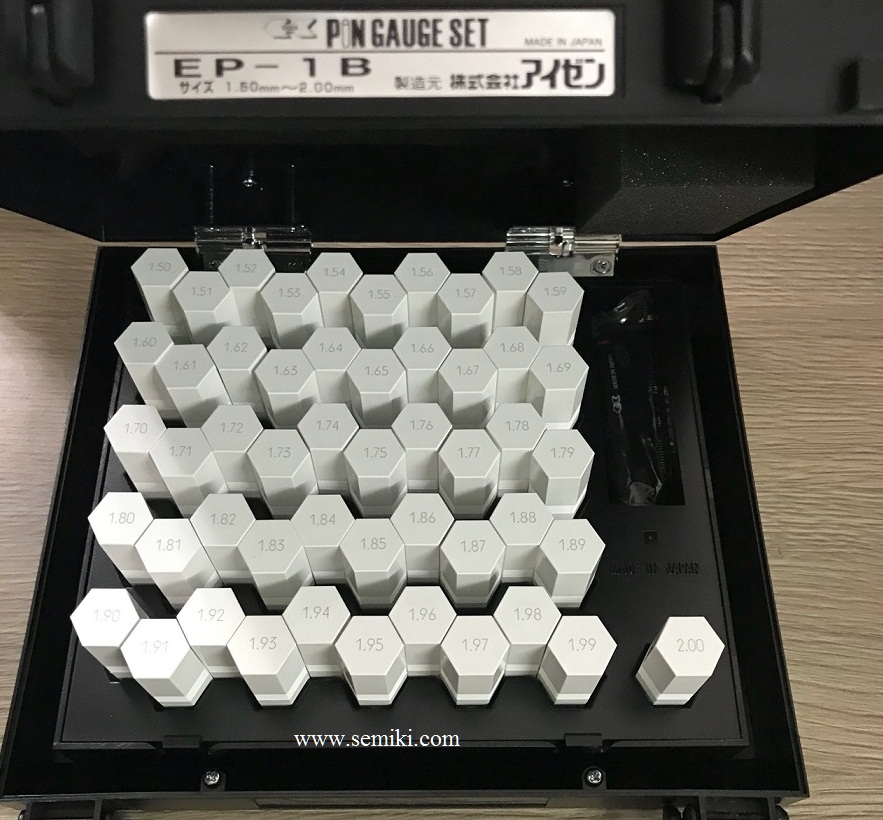

Picture: EISEN EP-1B ( 1.50~2.00mm/ 0.01mm/51pcs) at Semiki's warehouse

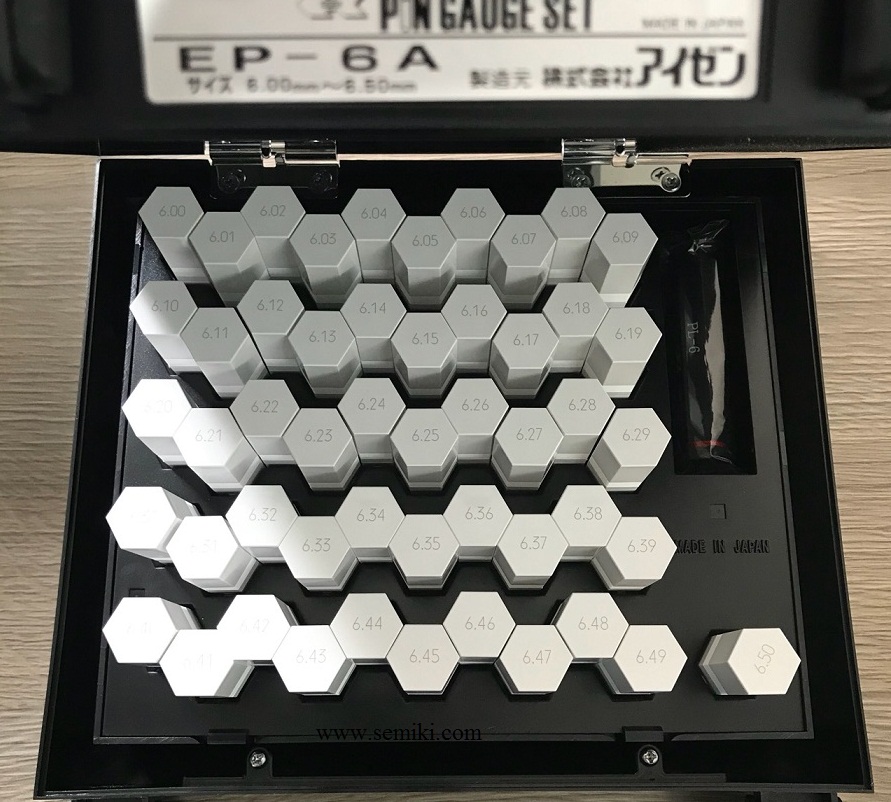

Picture: EISEN EP-6A ( 6.00~6.50mm/ 0.01mm/51pcs) at Semiki's warehouse
Maintenance and calibration :
► We also have calibration certificate attached ( optional )
► Please re-calibrate after use for a certain period through our purchase store.
DISTRIBUTED BY:
Semiki instrumentation Co., Ltd
Email: sales@semiki.com
Office tel: +84 28 2253 3522
~DOING OUR BEST FOR YOU~
