ESPEC Chamber PL-1J tủ giả lập nhiệt độ, độ ẩm (-40° C ~ +100° C/20% ~98%rh)

Producer: ESPEC

ESPEC Chamber PL-1J tủ giả lập nhiệt độ, độ ẩm (-40° C ~ +100° C/20% ~98%rh)

ESPEC Chamber PL-1J tủ giả lập nhiệt độ, độ ẩm (-40° C ~ +100° C/20% ~98%rh) - Image 2

ESPEC Chamber PL-1J tủ giả lập nhiệt độ, độ ẩm (-40° C ~ +100° C/20% ~98%rh) - Image 3

ESPEC Chamber PL-1J tủ giả lập nhiệt độ, độ ẩm (-40° C ~ +100° C/20% ~98%rh) - Image 4

Espec Corp. (Japan) Low Temperature & Humidity Chamber
Tủ Nhiệt độ và Độ ẩm Thấp Espec Corp. (Nhật Bản)
Model: PL-1J
Dung tích: 120L
Phạm vi nhiệt độ: 40°C đến +100°C
Phạm vi độ ẩm: 20% đến 98%rh
Kích thước bên trong: Rộng 500 x Cao 600 x Sâu 400 mm (120 L)
Kích thước bên ngoài: Rộng 910 x Cao 1440 x Sâu 873 mm
Hệ thống cấp nước: Bình chứa nước (16L)
Cửa sổ quan sát: 80 x 1260mm
Yêu cầu nguồn điện: AC 200V/50Hz/3 pha, 22,5 Ampe
Bộ điều khiển: N-instrumentation (Cài đặt lập trình)
Dòng ESPEC Platinous J – Lựa chọn tốt nhất của bạn để đáp ứng các ứng dụng kiểm tra độ tin cậy rộng rãi. Sản phẩm cung cấp các cấu hình linh hoạt để đáp ứng nhu cầu hiện tại và tương lai.
Dòng sản phẩm Platinous J đạt hiệu suất cao đồng thời giảm thiểu mức tiêu thụ năng lượng nhờ thiết kế sáng tạo và chức năng hiệu quả. Ngoài ra, các tính năng của sản phẩm có thể dễ dàng mở rộng và tùy chỉnh khi cần thiết, cho phép khả năng thích ứng linh hoạt.

ESPEC Japan

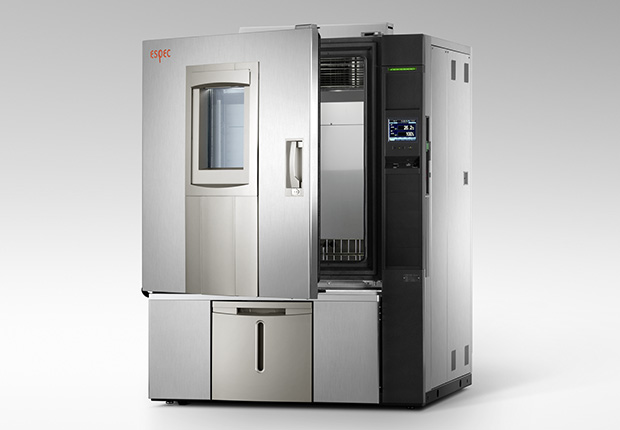

Platinous J Series

Temperature(& Humidity) Chamber

ESPEC Platinous J Series – Your best choice to cover broad reliability test applications. It offers flexible configurations to meet the needs of today and tomorrow.
The Platinous J Series achieves high performance while minimizing energy consumption through its innovative design and efficient functionality. Additionally, its features can be easily expanded and customized as needed, allowing for flexible adaptability.

Espec Corp. (Japan)

Low Temperature & Humidity Chamber

Model: PL-1J

Capacity: 120L

Temperature Range: 40° C to +100° C

Humidity Range :20% to 98%rh

Internal Dimension : W 500 x H 600 × D 400 mm (120 L)

External Dimension : W 910 x H 1440 x D 873 mm

Water supply system: Water tank (16L)

Viewing window : 80 × 1260mm

Power Requirement : AC 200V/50Hz/3ph, 22.5 Amps

Controller : N-instrumentation (Programmable Setting)

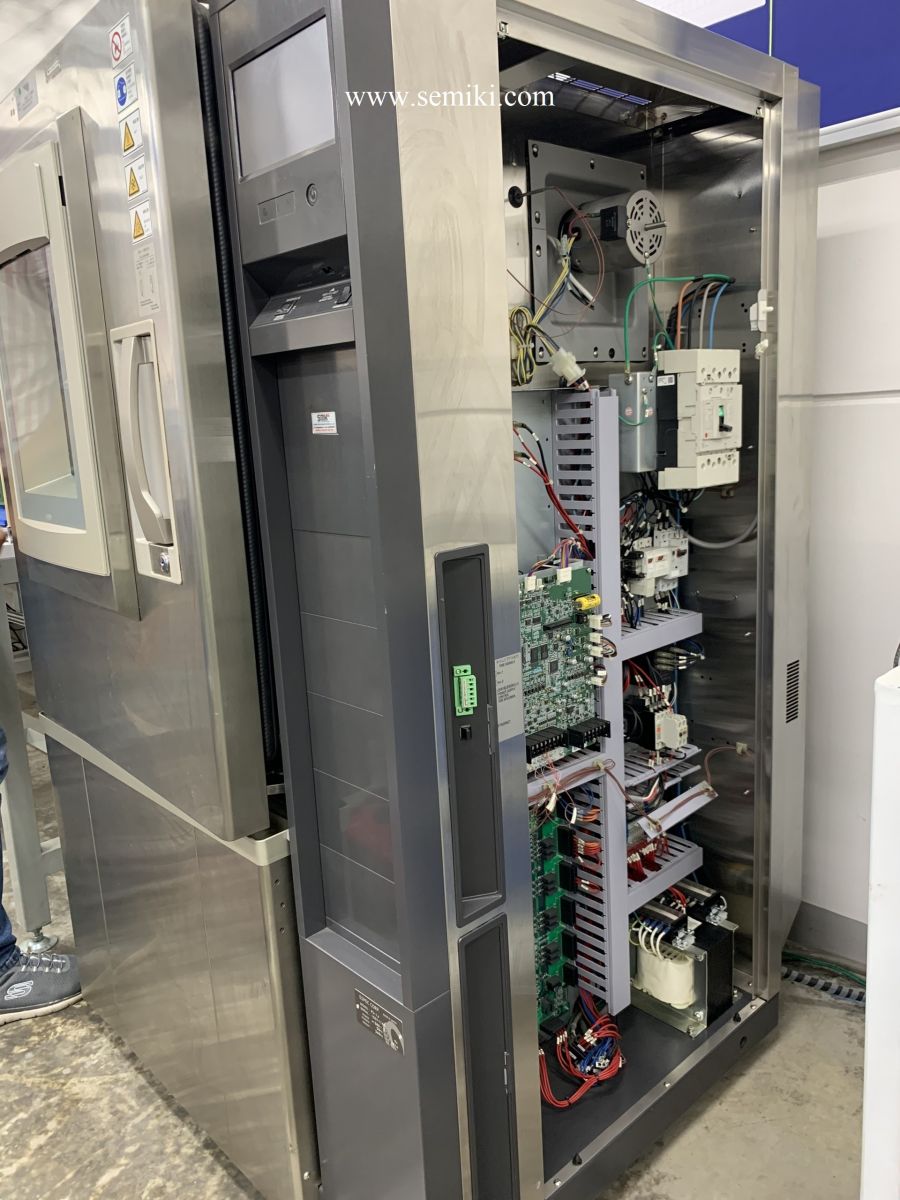

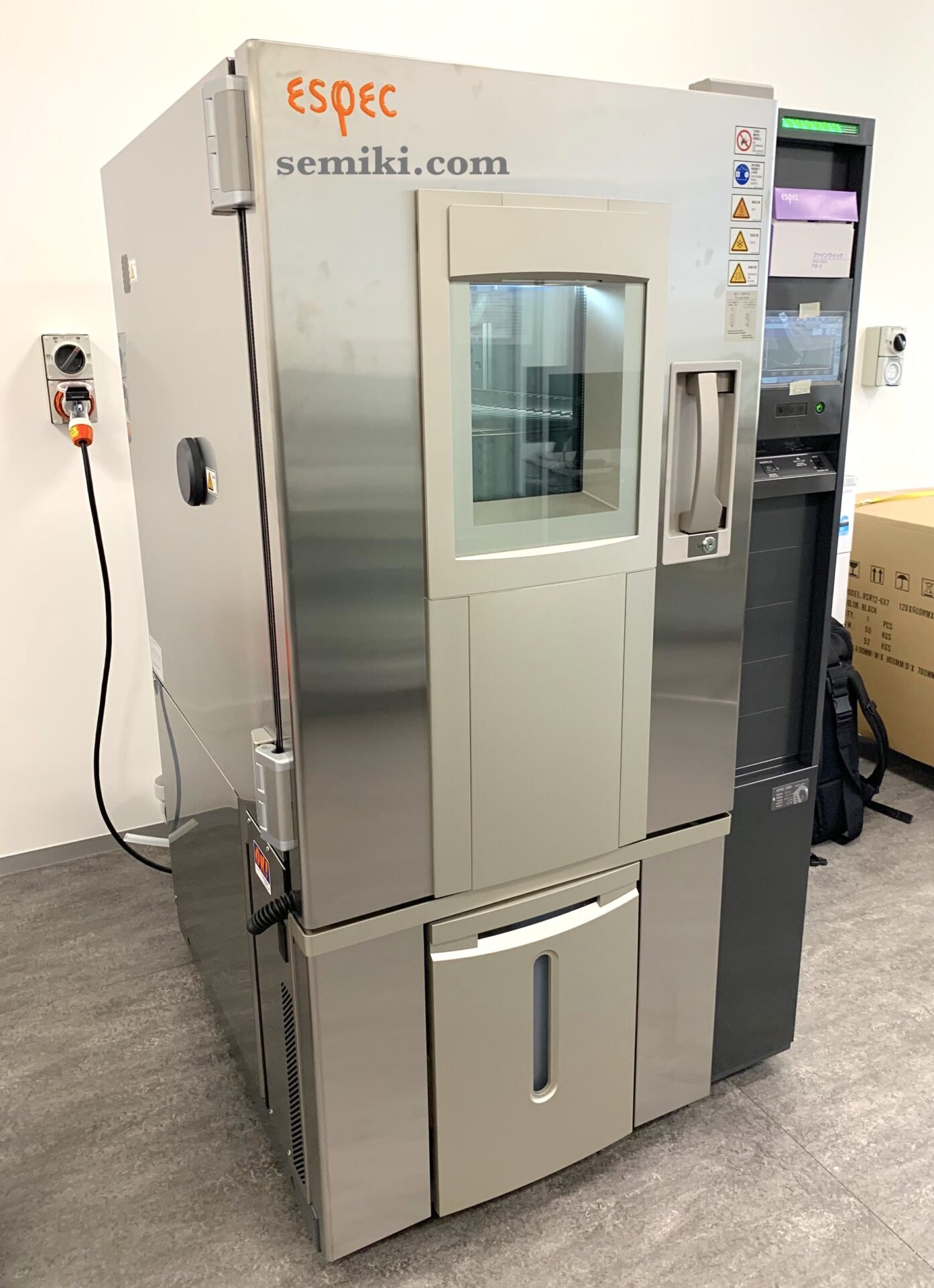

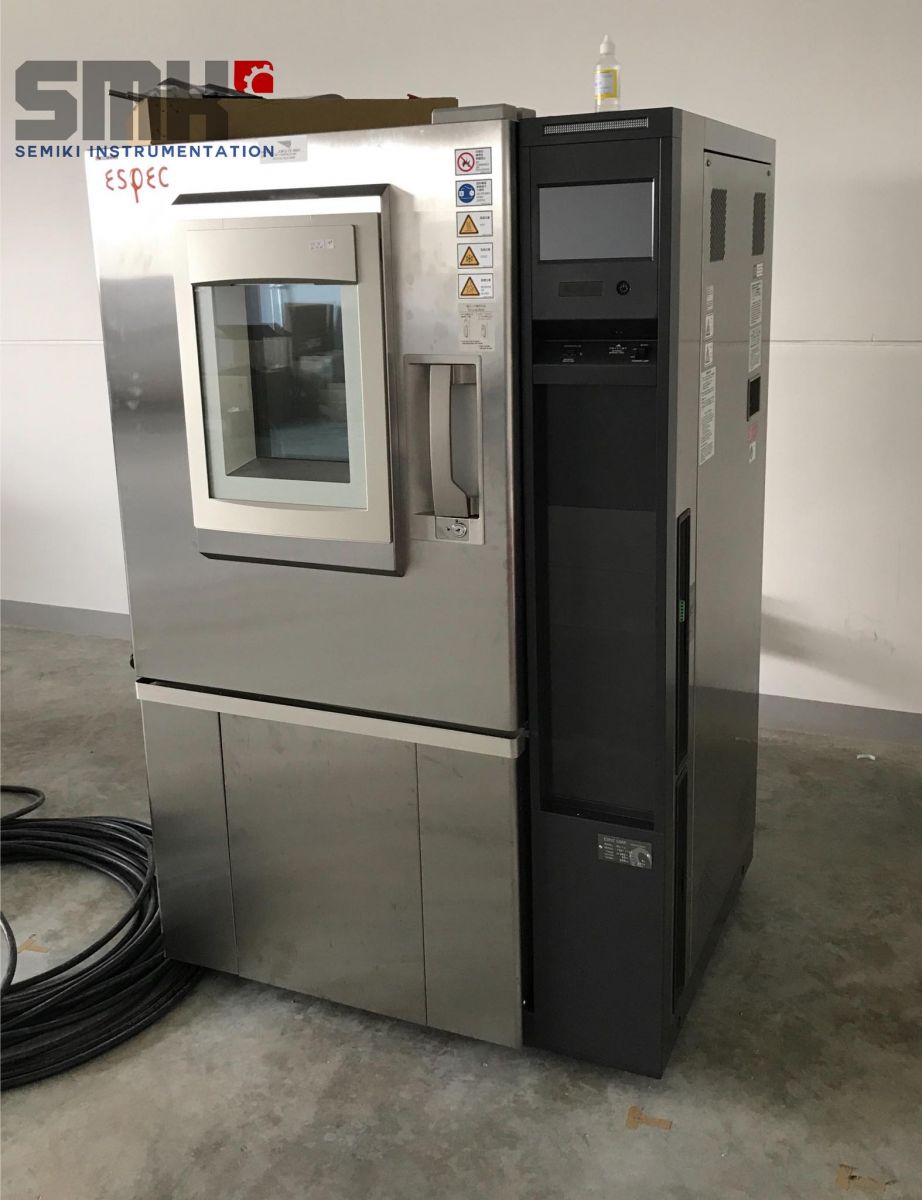

Pic.: Espec chamber Platinous J Series PL-1J ( -40° C ~ +100° C/20% ~98%rh/ Capacity 120L) at Semiki’s warehouse

Ultra-Energy-Efficient ECO Type
The ECO model features an advanced refrigeration control system that offers up to 70% energy savings for operations below 0°C, compared to standard J series models (based on PL-4J-ECO model).

Maximizing ECO benefits for long-term testing
Designed for long-term, continuous operation, the ECO model is ideal for various industries, including the battery market, while also serving a wide range of other applications:
Battery tests such as charge/discharge tests(cells, packs, etc.)
Storage tests
Performance evaluation tests

Smart R&D System (Japanese patent no. 5514787)
Smart R&D System (Smart Refrigerator & Dehumidifier System) is the ESPEC patent, which can control both cooling and heating capacity at minimum limits.
It provides highly accurate temperature / humidity environment with low energy consumption.
The system consists of PID controlled refrigerator, and N instrumentation, which delivers high speed processing.
