LINE Seiki CT1-3:10A ( CT1-A series) thiết bị đo chiều dài vải kết nối PLC

Producer: LINE SEIKI

LINE Seiki CT1-3:10A ( CT1-A series) thiết bị đo chiều dài vải kết nối PLC

LINE Seiki CT1-3:10A ( CT1-A series) thiết bị đo chiều dài vải kết nối PLC - Image 2

LINE Seiki CT1-3:10A ( CT1-A series) thiết bị đo chiều dài vải kết nối PLC - Image 3

LINE SEIKI Japan Length Sensor CT1-A, CT1-R Series
Thiết bị đo chiều dài LINE SEIKI Nhật Bản dòng CT1-A, CT1-R Dùng để đo chiều dài đơn giản của vải, giấy, màng, v.v. kết hợp với bộ đếm điện tử, bộ đếm điện từ và PLC

Model: CT1-3:10A ( Đơn vị truyền: 10cm, Dòng tải tối đa: 100mA, Tốc độ đếm tối đa: 500mpm, Điện áp nguồn: DC 5 đến 24 V ±10%, Dòng điện tiêu thụ: 35mA, Trở kháng đầu ra: 3.9KΩ, Khối lượng: 730g)
CT1-A (Một đầu ra) Loại: chỉ tăng dần, bất kể bánh xe quay theo hướng nào
Bao gồm một cặp puli cao su
Puli urethane (bánh xe) có sẵn theo yêu cầu ứng dụng
Vòng bi được lắp đặt trong tất cả các model CT1 để cải thiện độ rung Điện trở
Tính năng của các model mới: độ phân giải 0,001 m/năm, nguồn điện 24 VDC, ngõ ra collector hở
Ứng dụng: Hoạt động cắt theo chiều dài: Trong lĩnh vực hoạt động cắt theo chiều dài, đặc biệt khi xử lý các vật liệu như vải, giấy và màng nhựa, v.v., người ta có thể tích hợp liền mạch việc sử dụng bộ đếm và bổ sung chúng với các bộ tạo xung CT1/CS, do đó đảm bảo hiệu suất và độ chính xác tối ưu trong suốt quá trình.

Line Seiki Japan

Length Sensor CT1-A series

Model: CT1-3:10A

( 500m / minute – 1 Non-contact Voltage Output)

Combined with electronic/electromagnetic counters, length measurement

Specification Length sensor CT1-3:10A

Transmission unit: 10cm
Maximum load current: 100mA
Maximum counting speed: 500mpm
Power supply voltage: DC 5 to 24 V ±10%
Current consumption: 35mA
Output impedance: 3.9KΩ
Mass: 730g

Length Sensor CT1-A Series For simple length measurement of textiles, papers, films, etc. in conjunction with electronic counters, electro-magnetic counters, and PLC

CT1-A (One-Output) Type: increment only, no matter which direction its wheels rotate

Resolution 1 m/y, 0.1 m/y, 0.01 m/y, 0.001 m/y depending on model number
A pair of rubber pulleys(wheels) are included
Urethane pulleys(wheels) are available as an option per application
Bearings are installed in all the CT1 models to improve vibration resistance
New models’ features: resolution 0.001 m/y, power supply 24 VDC, open-collector output

description

The CT1 Series is a multi-resolution Length Sensor. It is ideal for length measuring applications that demand high-resolution measurements.
The CT1 Series is available in 1m, 0.1m, 0,01m and 0.001m resolutions.
It is equipped with 2 rubber wheels that convert rotational movement to pulses which can be fed to an electronic or electromagnetic counter to display measured value.
CT1 Series is Voltage Output Sensor. Open Collector Output is optional.
Meter and Yard wheels options are available.

Video: Length Sensor CT1 Series l Line Seiki

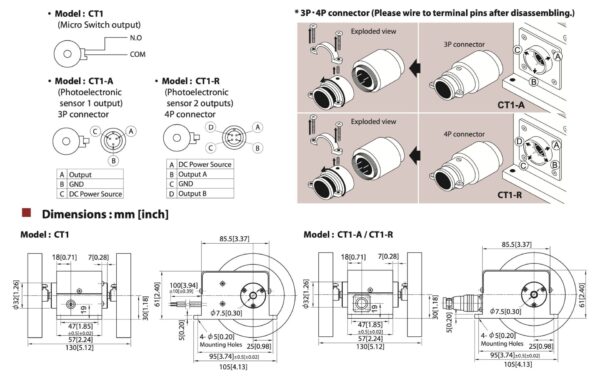

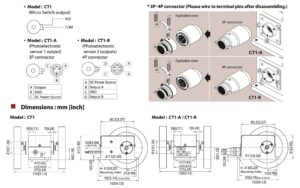

Connection

Length Sensor CT1 SeriesCable does not come with either CT1-A or CT1-R model.
Procure the cable that is appropriate for your installation environment, and the cable should be based on the specifications below:
For CT1-A models, 3-Pin cable equivalent to AWG16.
For CT1-R models, 4-Pin cable equivalent to AWG20-22.

Application

Cut-to-length operation: In the realm of cut-to-length operations, particularly when handling materials like textiles, paper, and plastic films among others, one can seamlessly integrate the use of counters and, furthermore, complement them with CT1/CS pulse generators, thereby ensuring optimal performance and precision throughout the process.

Maintenance and calibration :

► We also have calibration certificate attached ( optional )

► Please re-calibrate after use for a certain period through our purchase store.
