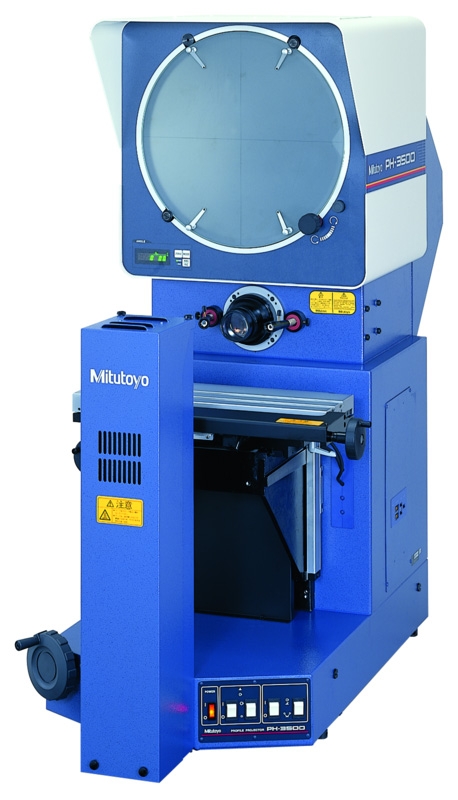

Mitutoyo PH-3515F series 172 profile projector

Producer:
SKU: Mitutoyo PH-3515F series 172 Category: Brand:
Mitutoyo PH-3515F series 172 profile projector



Specifications

Model PH-3515F
Product code 172-868
Projected image Reverse Build
Angle measurement screen Effective diameter ø353 mm (13.9 inches)
Screen material Smooth glass
Rotate screen ±360 o (±370 o for screen)
Show angle Digital counter (LED) (ABS/INC mode switching), Zero Set
Visibility 1′ or 0.01 o (convertible)
Mechanism Fine feed and clamp
Center 90 o (solid line)
Projection lens Magnification     10X (standard accessory), 5X (PH-3515F only), 20X, 50X, 100X
Illumination Contour lighting Halogen lamp (24 V, 150 W, 500 hours) (515530), 2-step precision dimmer switch (High/Low), for use in combination with available color filters.
Surface (oblique) lighting Parabolic halogen lamp (24 V, 200 W, 50 hours) (12BAA637). Beam adjustment and focusing available, heat absorption filter, integrated cooling fan
Digital unit of measure Ratio
Measuring range (X×Y)

254×152 mm
