Mitutoyo Electronic Outside Micrometer
Digital outside micrometers are a length measuring instrument based on the principle of using screw threads to measure linear distances, originating from Gascoigne's invention in 1638. The product is manufactured using modern Japanese technology, is IP65 waterproof and is equipped with many options such as measuring range, accuracy, measuring speed, mm-inch display, suitable for many different technical requirements.

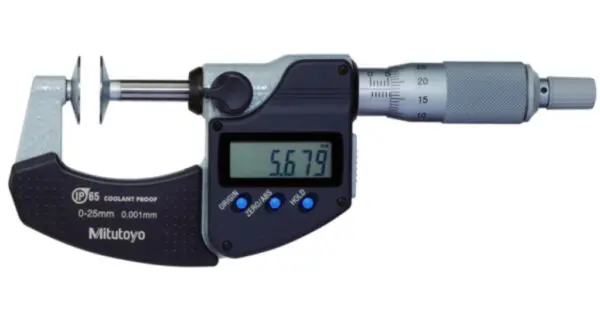

Mitutoyo 323-250-30 Electronic Tooth Step Gauge (0 – 25mm)
Mitutoyo 323-250-30 electronic tooth pitch micrometer has a compact design with a measuring range of 0 - 25mm in the metric system, a display of 0.001mm and an accuracy of ±4μm. The product is especially suitable for measuring the length of tooth pitches in spiral mechanisms or straight shafts of parts and materials in engineering - mechanical industries. The ability to resist water and dust to IP65 standards helps increase the durability and accuracy of the device in harsh conditions of use.
Advantages of Mitutoyo 323-250-30 Electronic Tooth Step Gauge
ABSOLUTE Technology:
Using a rotating electromagnetic induction reader combined with ABSOLUTE technology, the device allows for accurate measurement position determination immediately upon power-up without the need to adjust or reset the ruler.
Slider For Constant Force Measurement:
The micrometer is equipped with a sliding latch, which helps maintain a constant measuring force, ensuring accurate measurement results and high stability.
Storage and Use
To ensure the longevity and accuracy of the micrometer, the product should be stored in dry places, avoiding high humidity. Users should also regularly check and calibrate the device. For more details on how to use, you can refer to the article: "Notes, how to use electronic outside micrometer" to achieve the most accurate measurement results.
