NiGK DEW LABEL D-1 Nhãn ghi và phát hiện ẩm ngưng tụ

Producer: NiGK

NiGK DEW LABEL D-1 Nhãn ghi và phát hiện ẩm ngưng tụ

NiGK DEW LABEL D-1 Nhãn ghi và phát hiện ẩm ngưng tụ - Image 2

NiGK DEW LABEL D-1 Nhãn ghi và phát hiện ẩm ngưng tụ - Image 3

NiGK DEW LABEL D-1 Nhãn ghi và phát hiện ẩm ngưng tụ - Image 4

NiGK Japan DEW LABEL D-1 Dew indicator labels
Nhãn phát hiện ẩm ngưng tụ Từ màu xám chuyển sang màu xanh phản ứng với ngưng tụ 200 chiếc/gói. Tuân thủ RoHS
NiGK Japan DEW LABEL D-1 chỉ báo dùng một lần đổi màu không thể đảo ngược từ xám sang xanh để báo hiệu rằng đã xảy ra hiện tượng ngưng tụ sương. DEW LABEL đổi màu khi bị ướt và màu vẫn giữ nguyên sau khi khô.
Mặc dù có một số chỉ báo độ ẩm có sẵn trên thị trường như bạn có thể đã biết, nhưng bạn có biết chỉ báo nào phát hiện ngưng tụ và ghi lại lịch sử không?
Ngưng tụ: Nước trong không khí ngưng tụ và tạo thành sương mù, mây và giọt nước khi không khí bão hòa (RH > 100%) và nhiệt độ giảm xuống.
DEW LABEL™ là một loại chỉ báo hóa học, giống như chỉ báo nhiệt độ và chỉ báo chiếu xạ UV, chỉ báo sự thay đổi pha vô hình của nước bằng cách đổi màu rõ ràng.

NiGK Corporation Japan

Condensation monitoring indicator,
DEW LABEL

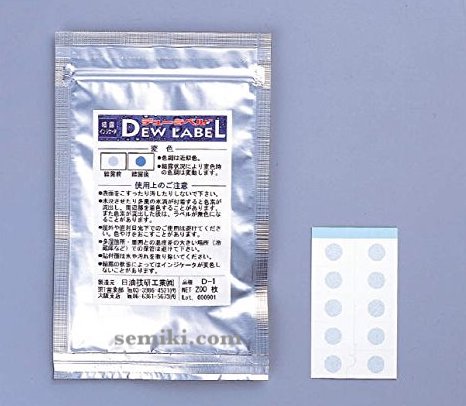

NiGK Japan DEW LABEL D-1 Dew indicator labels

Turns to blue reacting to condensate 200 pcs / pkg / RoHS Compliant

NiGK Japan DEW LABEL D-1 single-use indicators irreversibly change its color from gray to blue to signal that dew condensation has occurred. DEW LABEL changes its color by getting wet and the color stays even after drying.

Irreversible / Single-use
Self-adhesive and easy to apply various location.
Customization is available (specific size and shape)

While there are some humidity indicators available in a market as you may already know, do you happen to know an indicator which detects condensation* and records the history?
* Condensation: Water in air condenses and forms fog, cloud and water drops when the air is saturated (RH > 100%) and the temperature cools.
DEW LABEL™ is a type of chemical indicator, like temperature and UV irradiation indicators, indicates invisible change of phase of water by clear color change.

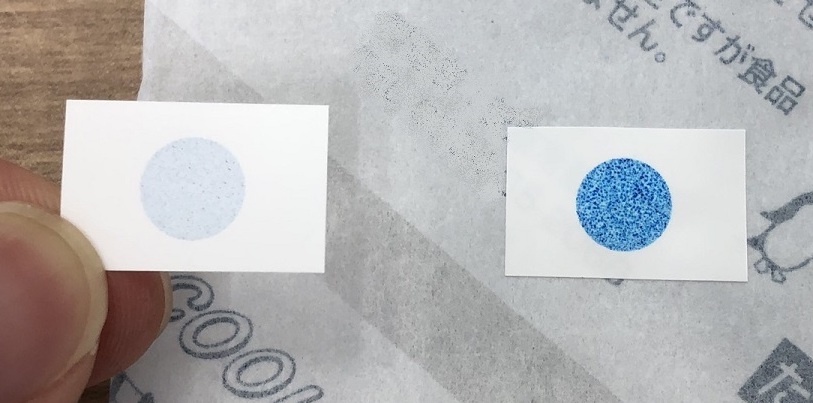

The indicator changes the color clearly from pale gray to blue when the indicator detect condensation.
The pigment has no toxicity but hard to wash off once it stains clothes and skin. Take good care not to let the pigment get in your eyes and mouth. When applying the label, you might want to use a tissue or dry cloth to press the label against the object.
When the humidity is too high, the condensate may coagulate to water drop and the drop may run away with pigment, so apply the label on the flat horizontal place.

Proposals

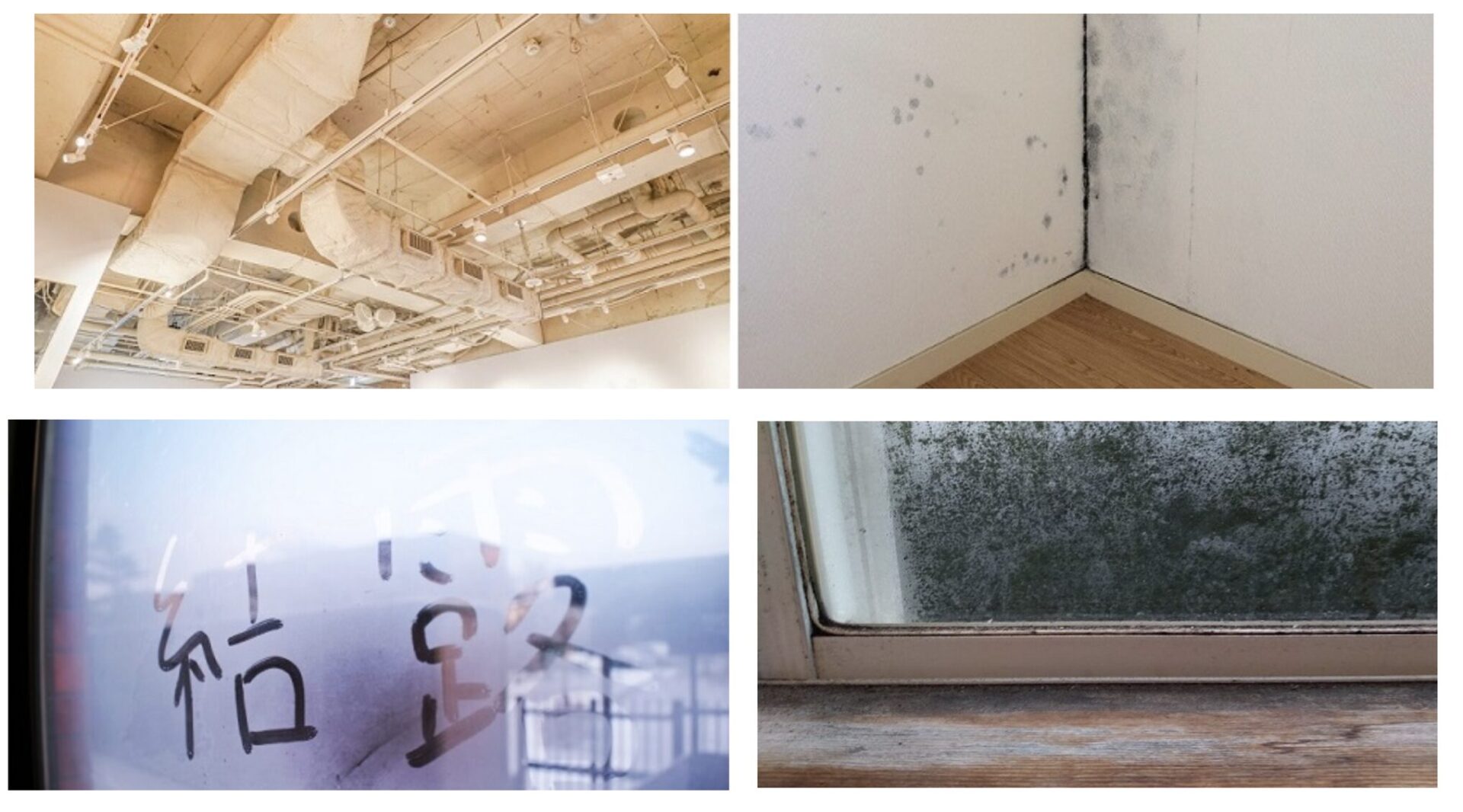

As the presence of dew/condensate is a factor of formation of mold, DEW LABEL™ will be used, for example, for the following purposes:

Temperature control of air conducting duct in the healthcare and nursing facilities.
Humidity control of warehouse and cubicles of preserving fine arts.

As humidity control ONLY with a electronic controller like may be insufficient for monitoring evenly every spaces of the room and blind spaces, applying DEW LABEL™ to each of the corners of your room of an access door/hall of the air duct will be help you very well to check and monitor the environment for the confirmation as well as evaluation of humidity control.

Maintenance and calibration :

► We also have calibration certificate attached ( optional )

► Please re-calibrate after use for a certain period through our purchase store.
