SATO SK-110TRH-B-EX Nhiệt ẩm kế điện tử đầu dò rời (−20~ 80°C/5.0~95.0%rh)

Producer: SATO KEIRYOKI

SATO SK-110TRH-B-EX Nhiệt ẩm kế điện tử đầu dò rời (−20~ 80°C/5.0~95.0%rh)

SATO SK-110TRH-B-EX Nhiệt ẩm kế điện tử đầu dò rời (−20~ 80°C/5.0~95.0%rh) - Image 2

SATO SK-110TRH-B-EX Nhiệt ẩm kế điện tử đầu dò rời (−20~ 80°C/5.0~95.0%rh) - Image 3

SATO SK-110TRH-B-EX Nhiệt ẩm kế điện tử đầu dò rời (−20~ 80°C/5.0~95.0%rh) - Image 4

SATO Digital Thermohygrometer SK-110TRH-B-EX ( −20 to 80°C/5 to 95%rh)
Máy đo nhiệt độ ẩm kỹ thuật số SATO SK-110TRH-B-EX (−20 đến 80°C/5 đến 95%rh) tại kho của Semiki Với đầu dò cảm biến được kết nối, máy đo nhiệt độ ẩm cầm tay này lưu trữ tới 200 cặp nhiệt độ và độ ẩm đã đo, đồng thời hiển thị nhiệt độ bầu ướt và điểm sương. Nhiều đầu dò khác nhau được cung cấp để đáp ứng các ứng dụng của bạn.
Đầu dò cắm số 8141-10 S110TRH-10
Dimensions: Ø15 x 90 mm
Range: −10.0 to 60.0°C, 5.0 to 95.0%rh
Đầu dò có dây số 8141-20 S110TRH-20
Dimensions: Sensor Ø15–20 x 200 mm, Cable 1.5 m
Range: −20.0 to 80.0°C, 5.0 to 95.0%rh
Đầu dò ống lồng số 8141-30 S110TRH-30
Dimensions: Probe Ø9–14 x 200–930 mm, Cable 0.7–1.5 m
Range: −20.0 to 80.0°C, 5.0 to 95.0%rh
Đầu dò linh hoạt số 8141-40 S110TRH-40
Dimensions: Sensor Ø9 x 35 mm, Cable 1.6 m
Range: −20.0 to 80.0°C, 5.0 to 95.0%rh

SATO Keiryoki Japan

Digital Thermohygrometer

SK-110TRH-B-EX (No.8138-00)

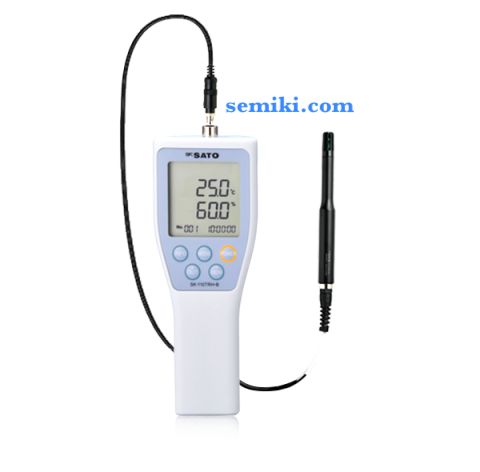

Digital Thermohygrometer Model SK-110TRH-B-EX With a sensor probe connected, this portable thermohygrometer stores up to 200 pairs of measured temperature and humidity, and displays wet bulb temperatures and dew points in addition. Various probes are provided to meet your applications.

Features

■ Works as a logger

While the measured data are updated every second on the display, they are also recorded internally when the memory key is pressed. Up to 200 recorded data can be viewed later.

■ Digital display of serial number and calibrated date

No stickers to notify of the serial number and calibrated date are adhered on the device in order to prevent contamination caused by ripped stickers. Instead, these data are stored internally and available to display on the screen. Note that the calibrated date can only be updated at our calibration laboratory.

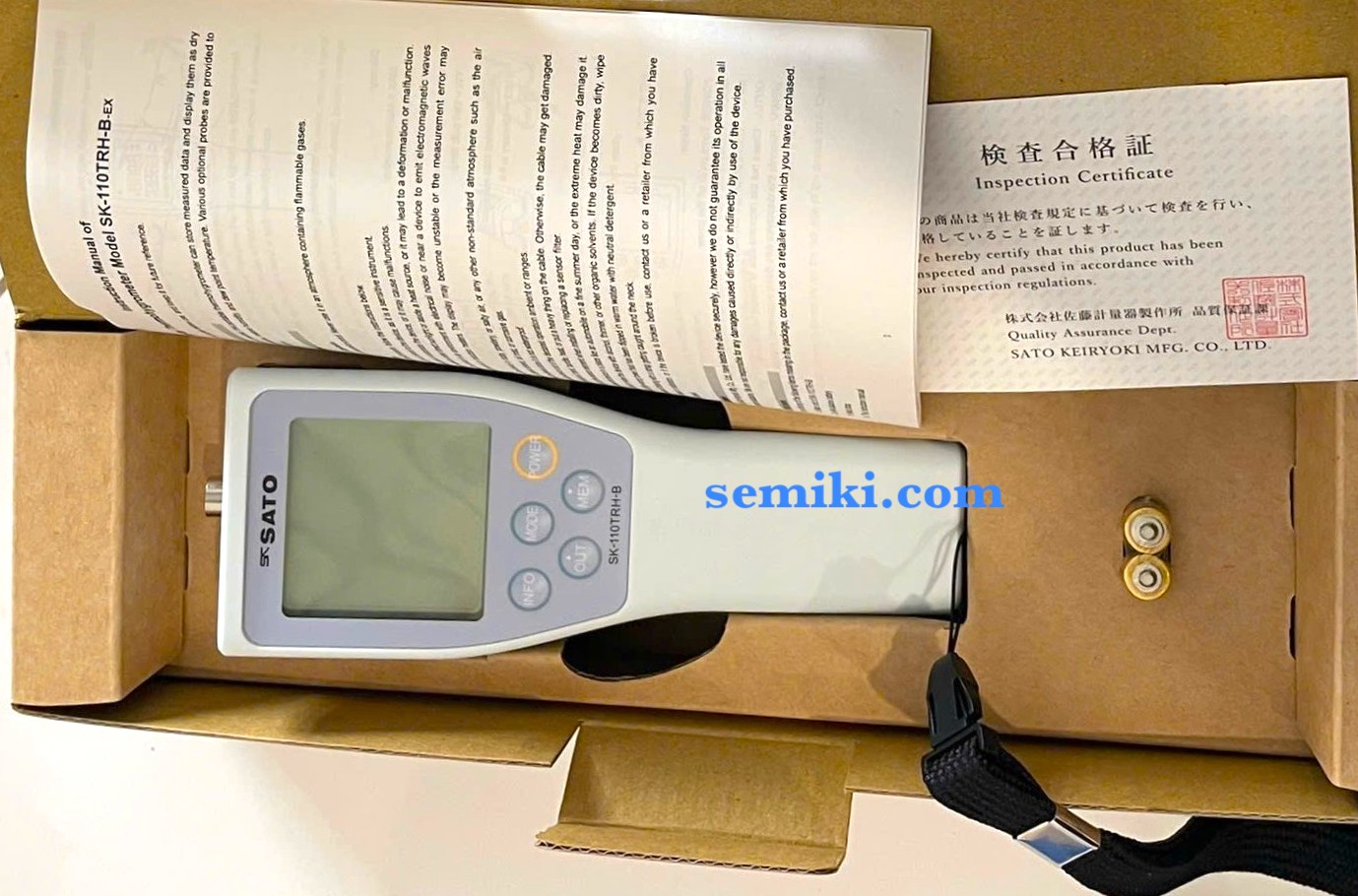

SATO Digital Thermohygrometer SK-110TRH-B-EX ( −20 to 80°C/5 to 95%rh) at Semiki’s warehouse

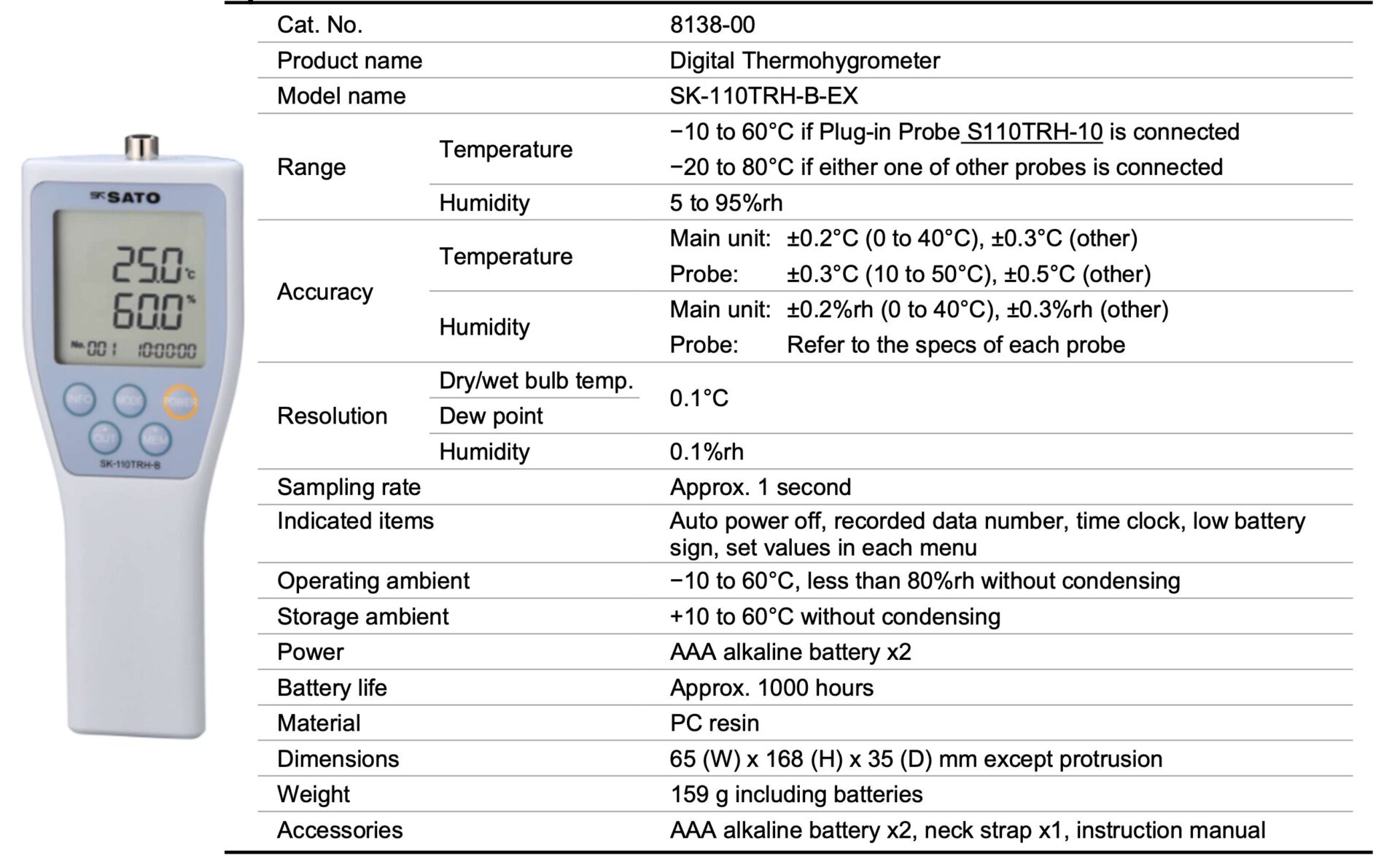

Specification

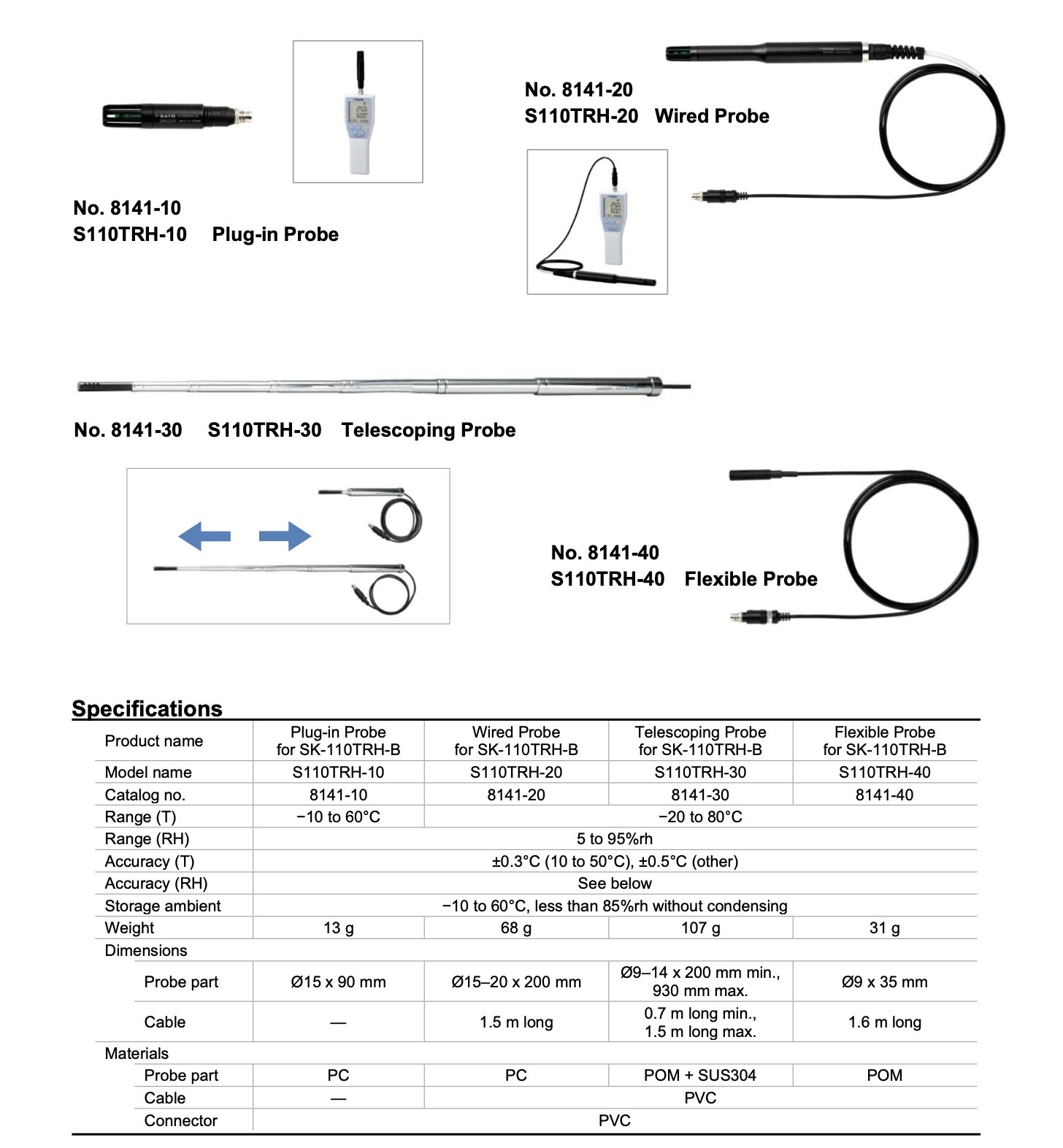

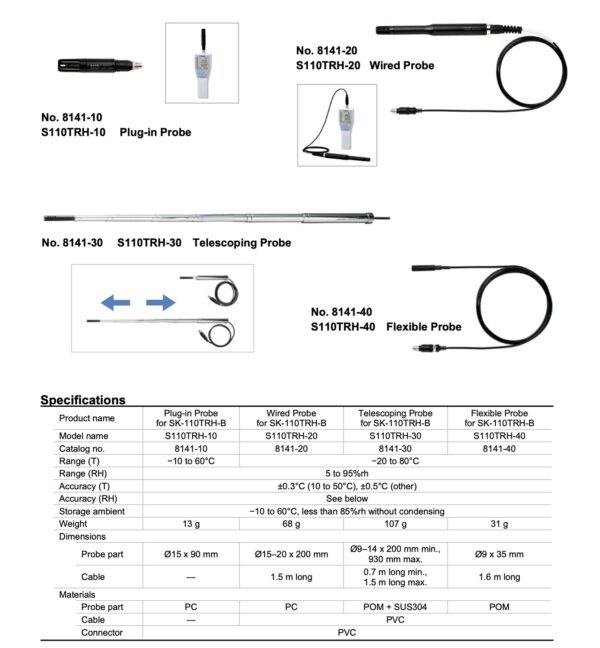

Optional Probes

Plug in Probes for Digital Thermohygrometer SK-110TRH-B-EX

Conector: PVC

Plug-in Probe No. 8141-10 S110TRH-10
Dimensions: Ø15 x 90 mm
Range: −10.0 to 60.0°C, 5.0 to 95.0%rh

Wired Probe No. 8141-20 S110TRH-20
Dimensions: Sensor Ø15–20 x 200 mm, Cable 1.5 m
Range: −20.0 to 80.0°C, 5.0 to 95.0%rh

Telescoping Probe No. 8141-30 S110TRH-30
Dimensions: Probe Ø9–14 x 200–930 mm, Cable 0.7–1.5 m
Range: −20.0 to 80.0°C, 5.0 to 95.0%rh

Flexible Probe No. 8141-40 S110TRH-40
Dimensions: Sensor Ø9 x 35 mm, Cable 1.6 m
Range: −20.0 to 80.0°C, 5.0 to 95.0%rh

Engraved serial number to prevent contamination. The serial number is laser-engraved on the grip in order to prevent contamination by ripped stickers. Neither water nor rubbing alcohol harms this engraving.

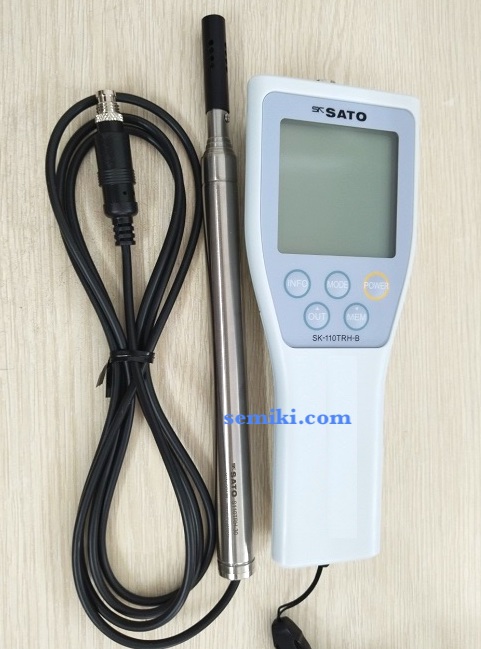

Pic.: Sato Digital Thermohygro meter SK-110TRH-B-EX with S110TRH-30 Telescoping Probe ( −20 to 80°C/ 5 to 95%rh/ Ø9–14 x 200 mm min., 930 mm max.) at Semiki’s warehouse

Maintenance and calibration :

► We also have calibration certificate attached ( optional )

► Please re-calibrate after use for a certain period through our purchase store.
