Force and mechanical measuring equipment
– Available in capacity from 500N (50kgf) up to 3000N (300kgf).
– Peak hold function.
– Zero adjustment for tare weight.
| Model | PSH series |
|---|---|
| Accuracy | +/-0.1% FS |
| Stroke | 10mm |
| Unit of measurement | Please refer to the table below |
| Reading method | Real-time track or Peak-hold |
| Divisions | 100lines* |
| Operating temperature | 0 to +40 degrees Celcius |
| Weight | Approx. 3.1kg (Vary according to models) |

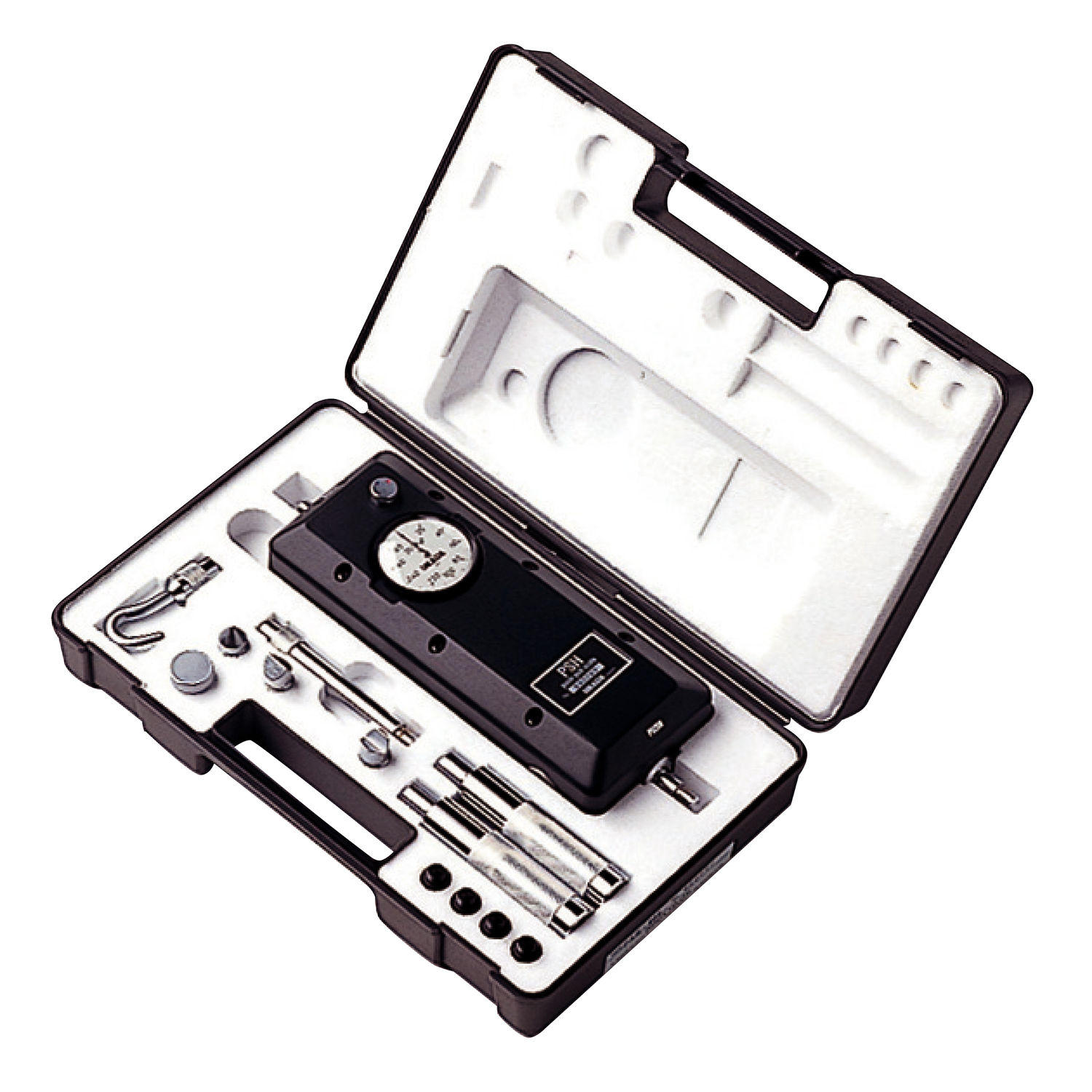

| Accessories | 6 kinds of attachemets, handles (2 pcs), gauge mounting plate bolts (4 pcs), carrying case |
* 3000N, 300K, 300lb : 120 divisions
| Model | Capacity | 1 division | Thread |
|---|---|---|---|
| PSH-500N | 500N | 5N | M10 |
| PSH-1000N | 1000N | 10N | |
| PSH-2000N | 2000N | 20N | |
| PSH-3000N | 3000N | 25N |
